Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson (GE Intelligent Platforms) |

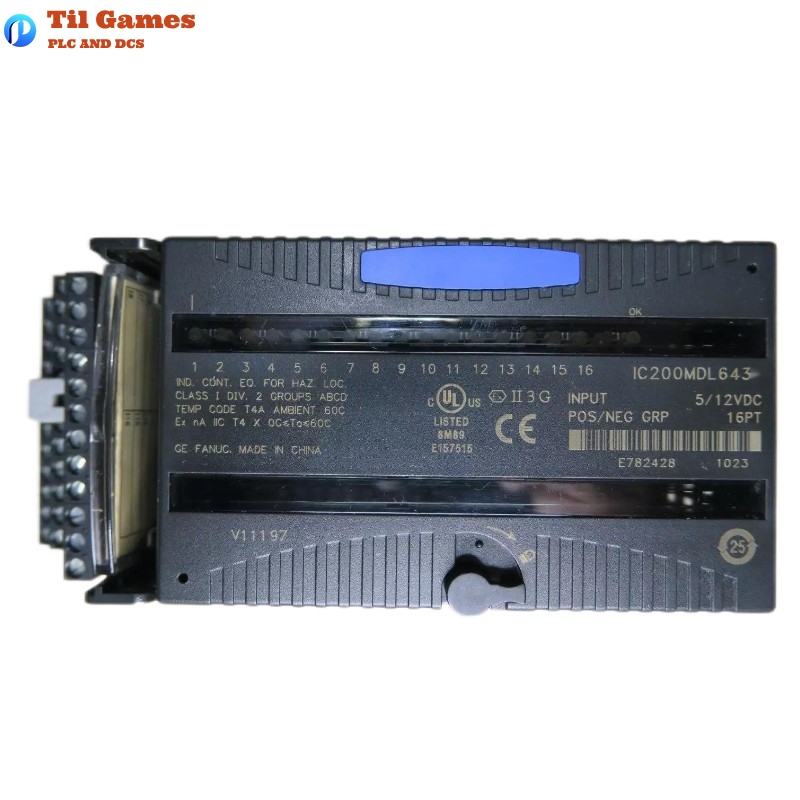

| Model Number | IC200MDL643A |
| Product Type | Discrete Input Module |
| Input Voltage | 5/12 VDC (Positive/Negative Logic) |
| Number of Input Points | 16 (2 Groups of 8) |
| Input Type | Sourcing/Sinking |
| Isolation | Yes (Field to Logic) |
| Module Type | VersaMax Modular I/O |
| Mounting | DIN Rail |
| Hot Swap Capability | Supported |
| Galvanic Isolation | Yes |
| Environmental Rating | IP20 |
| Operating Temperature Range | 0°C to 60°C (Extended: -40°C to 60°C optional) |
| Certifications | UL, CE, ATEX Zone 2, UL HazLoc Class I Div 2 |
| Network Compatibility | PROFINET, Modbus/TCP, DeviceNet, PROFIBUS-DP, GENIUS |
| System Redundancy | PNSR, EGD, GENIUS |
| Max Wire Gauge | 14 AWG |
| I/O Points per Drop | Up to 1024 |
| Dimensions (W x H x D) | 66.8 × 163.5 × 70 mm |
| Weight | 1.36 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signal does the IC200MDL643A module accept?
A1: The IC200MDL643A accepts 5 VDC or 12 VDC signals and supports both positive and negative logic types.
Q2: How many discrete input points are available on this module?
A2: The module provides 16 discrete input points, organized in 2 isolated groups of 8.
Q3: Can this module be used in redundant systems?
A3: Yes, the IC200MDL643A supports system redundancy via PNSR, EGD, and GENIUS network configurations.
Q4: Is hot-swapping supported for this module?
A4: Yes, the module is designed with hot-swap capability for easy maintenance without shutting down the system.
Q5: What is the maximum ambient operating temperature range?
A5: The standard operating temperature is 0°C to 60°C, with an extended range option of -40°C to 60°C.
Q6: Which network interfaces are compatible with this module?
A6: It is compatible with PROFINET, Modbus/TCP, DeviceNet, PROFIBUS-DP, and GENIUS network interfaces.
Q7: What type of installation is supported?
A7: The module is DIN rail mountable and is designed for quick installation using snap-together I/O carriers.
Q8: What certifications does the IC200MDL643A carry?
A8: It is certified by UL, CE, and ATEX Zone 2, and it meets UL HazLoc Class I Division 2 standards for hazardous locations.
