Technical Specifications

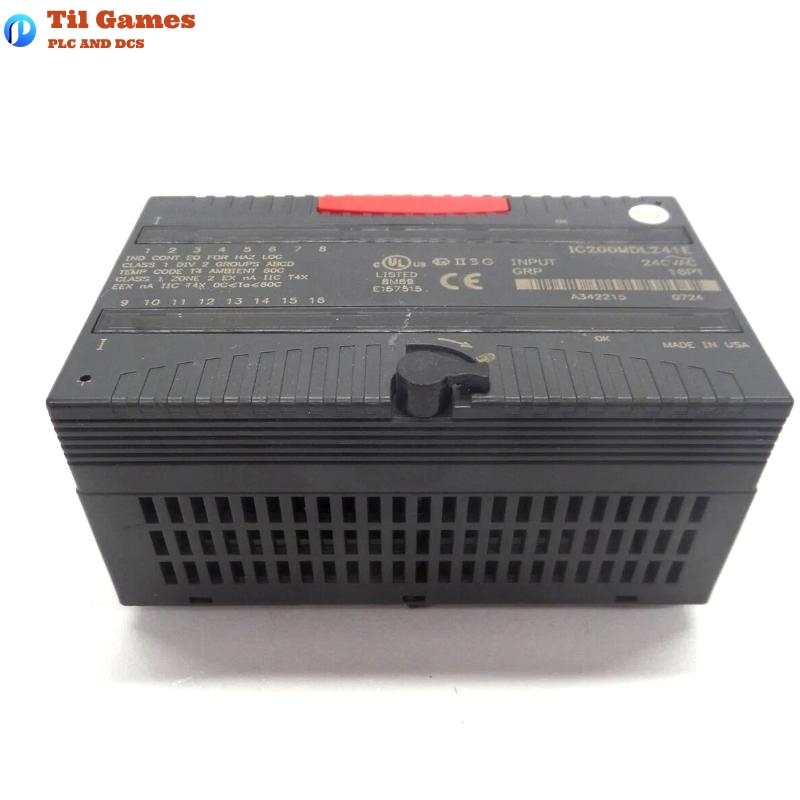

| Parameter | Specification |
|---|---|
| Model Number | IC200MDL241E |
| Product Type | VersaMax AC Discrete Input Module |
| Input Voltage Range | 0 to 264 VAC (47 to 63 Hz) |
| Nominal Input Voltage | 240 VAC |
| Number of Input Points | 16 (2 groups of 8) |
| Input Type | Sourcing-type (positive logic) |
| On-State Voltage Range | 155 to 264 VAC |
| Off-State Voltage Range | 0 to 40 VAC |
| On-State Current | ≥ 7 mA |
| Off-State Current | ≤ 1.5 mA |
| Input Impedance (60 Hz) | 38.5 kΩ (reactive) |
| Input Impedance (50 Hz) | 46.3 kΩ (reactive) |
| Response Time (ON) | 1 cycle maximum |
| Response Time (OFF) | 2 cycles maximum |
| Isolation (Logic to Ground) | 250 VAC continuous; 1500 VAC for 1 minute |
| Group-to-Group Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Point-to-Point Isolation | None |
| LED Indicators | 16 Green LEDs for point status, 1 OK LED for backplane power |
| Backplane Power Consumption | 110 mA at 5 VDC |
| External Power Supply | Not required (powered via backplane) |
| Installation | DIN Rail mounting |
| Operating Temperature | 0°C to 60°C (horizontal or vertical mounting) |
| Protection Rating | IP20 |
| Certifications | UL, UL HazLoc C1D2, CE, ATEX Zone 2 |
| Hot Swap Capability | Yes |
| Dimensions (W x H x D) | 66.8 × 163.5 × 70 mm |
| Weight | 1.36 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the voltage input range of the IC200MDL241E module?
A1: The module supports an input range from 0 to 264 VAC, with a nominal input of 240 VAC.
Q2: How many input points are available on this module?
A2: The IC200MDL241E provides 16 discrete input points, arranged in 2 isolated groups of 8.
Q3: Is this module hot-swappable during operation?
A3: Yes, the IC200MDL241E supports hot swap, allowing the module to be replaced without shutting down the system.
Q4: What kind of logic does this module use for its inputs?
A4: It uses positive logic (sourcing-type), meaning current flows from the input device to the module.
Q5: What is the isolation rating between input logic and ground?
A5: It provides 250 VAC continuous isolation and is tested to 1500 VAC for 1 minute between logic and frame ground.
Q6: What are the recommended operating temperatures?
A6: The module operates in ambient temperatures from 0°C to 60°C, without the need for thermal derating.
Q7: Are LED indicators included for status monitoring?
A7: Yes, each input point has a green LED for on/off status, and an additional OK LED indicates backplane power.
Q8: Is external power needed for the module’s operation?
A8: No, the IC200MDL241E receives its power from the backplane, eliminating the need for an external supply.
