Technical Specifications
| Parameter | Description |
|---|---|

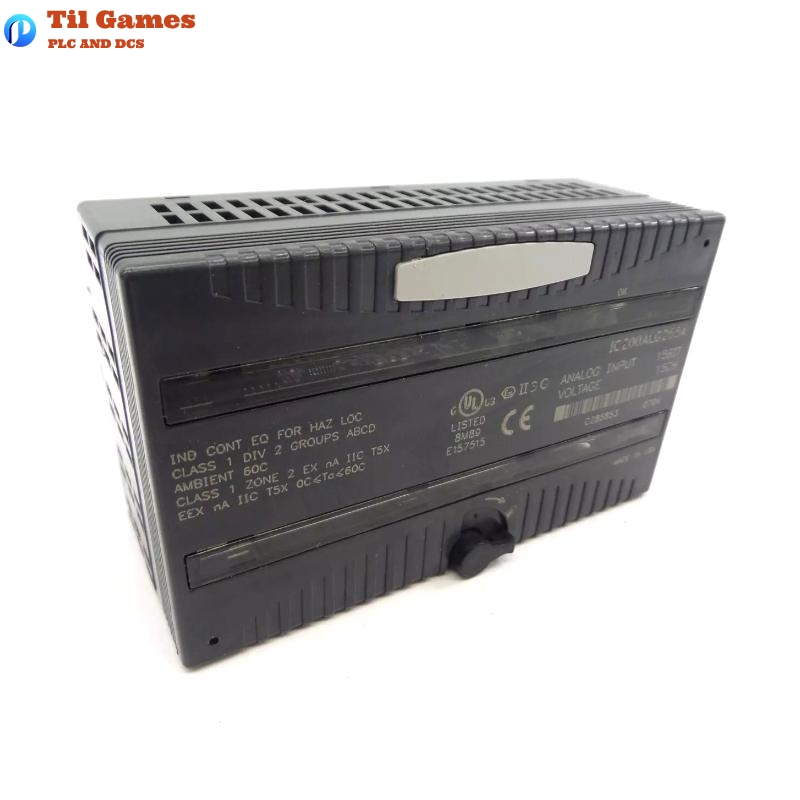

| Module Type | Voltage Analog Input Module |
| Number of Channels | 15 single-ended channels |
| Input Voltage Range | -10V to +10V |
| Input Impedance | 100 KΩ |
| Input Overvoltage Protection | ±30 VDC |
| Resolution | 15 bits (0.3125 mV per count) |
| Accuracy (25°C) | ±0.3% of full scale (typical), ±0.5% (maximum) |
| Accuracy (0 to 60°C) | ±1% of full scale (maximum) |
| Filter Response (3dB) | 32 Hz ±20% |
| Update Rate | 7.5 ms |
| Isolation | 250 VAC continuous (optical), 1500 VAC for 1 minute |
| Backplane Current Consumption | 5V = 150 mA, 3.3V = 50 mA |
| External Power Supply | Not required |
| LED Indicators | OK (green) |
| Module ID | FFFFB00F |
| Dimensions | 110 x 66.8 x 50 mm |
| Weight | 1.36 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range supported by the IC200ALG265 module?
A1: The IC200ALG265 supports a voltage input range from -10V to +10V.
Q2: How many channels does the IC200ALG265 module have?
A2: It has 15 single-ended voltage input channels grouped together.
Q3: Does the module provide isolation between channels?
A3: No, the module provides optical isolation between user input and logic/frame ground but not between channels.
Q4: What is the resolution of the IC200ALG265 module?
A4: It has a 15-bit resolution, equating to 0.3125 mV per count.
Q5: Is an external power supply required for the module operation?
A5: No, it operates using backplane power; external power is not required.
Q6: What is the level of input overvoltage protection provided?
A6: The module protects against input voltages up to ±30VDC.
Q7: Can the IC200ALG265 be used in safety applications?
A7: Yes, it is TÜV approved for use in safety-relevant portions of a GMR system.
Q8: What happens if the module detects an internal hardware fault?
A8: It turns off the OK LED and reports the fault to the CPU/NIU. The module must be power cycled or replaced.
