Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Analog Input Module |
| Input Channels | 15 single-ended voltage inputs (one group) |
| Input Voltage Range | -10V to +10V |
| Input Impedance | Minimum 100 kΩ |
| Resolution | ±15 bits (0.3125 mV per count) |
| A/D Converter Accuracy (25°C) | ±0.3% typical, ±0.5% max of full scale |
| A/D Accuracy (0 to 60°C) | ±1% max of full scale |
| A/D Accuracy (w/ RF interference) | ±2% max (IEC 1000-4-3, 10V/m) |
| Filter Response (3 dB) | 32 Hz ±20% |
| Update Rate | 7.5 ms |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (User Input to Logic/FG) |
| Channel-to-Channel Isolation | None |
| Backplane Power Consumption | 5V output, 150 mA max |
| External Power Supply | Not required |
| Default/Fault Mode | Configurable: default or hold last state |
| Diagnostic Features | – Loss of internal power – A/D conversion malfunction |
| LED Indicators | Green OK LED for power/configuration/diagnostics status |
| Configuration Requirements | No hardware configuration required |
| Dimensions (H x W x D) | 110 x 66.8 x 50 mm |
| Weight | 1.454 kg |
| Compatibility | VersaPro v2.0+, CPU firmware v2.1+, Ethernet NIU EBI001 v1.10+ |
FAQ
Frequently Asked Questions (FAQ)

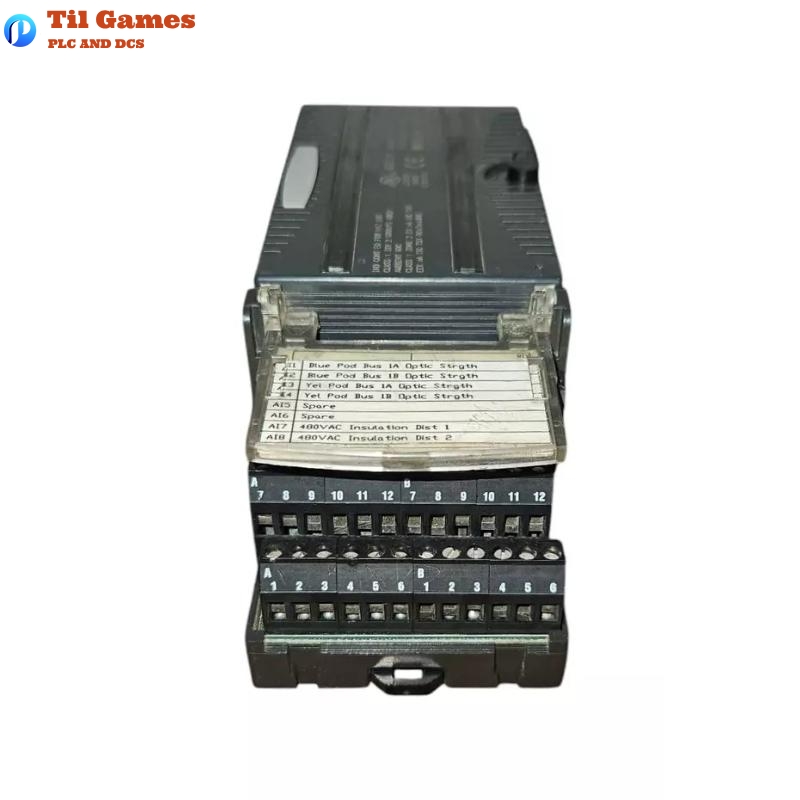

Q1: What types of signals does the IC200ALG263D accept?
A1: The module accepts analog voltage signals ranging from -10V to +10V.
Q2: How many input channels does this module support?
A2: The IC200ALG263D provides 15 single-ended input channels grouped together in one common ground group.
Q3: Does this module require an external power supply?
A3: No external power source is required for the module’s operation. It draws power directly from the backplane.
Q4: What is the resolution of the analog inputs?
A4: The inputs have a resolution of ±15 bits, where each count represents 0.3125 mV.
Q5: How does the module handle A/D conversion faults?
A5: The module includes built-in diagnostics that detect A/D conversion malfunctions. If a known test fails three consecutive times, the module stops scanning and reports a fault.
Q6: Is there electrical isolation between channels?
A6: No, there is no channel-to-channel isolation. However, user input is optically isolated from logic and frame ground.
Q7: Can this module be used in high-EMI environments?
A7: Yes, but with caution. Accuracy may degrade to ±2% under strong RF interference (IEC 1000-4-3, 10V/m).
Q8: What happens when backplane power is lost?
A8: The module will report a loss of internal power fault and stop functioning until power is restored.
