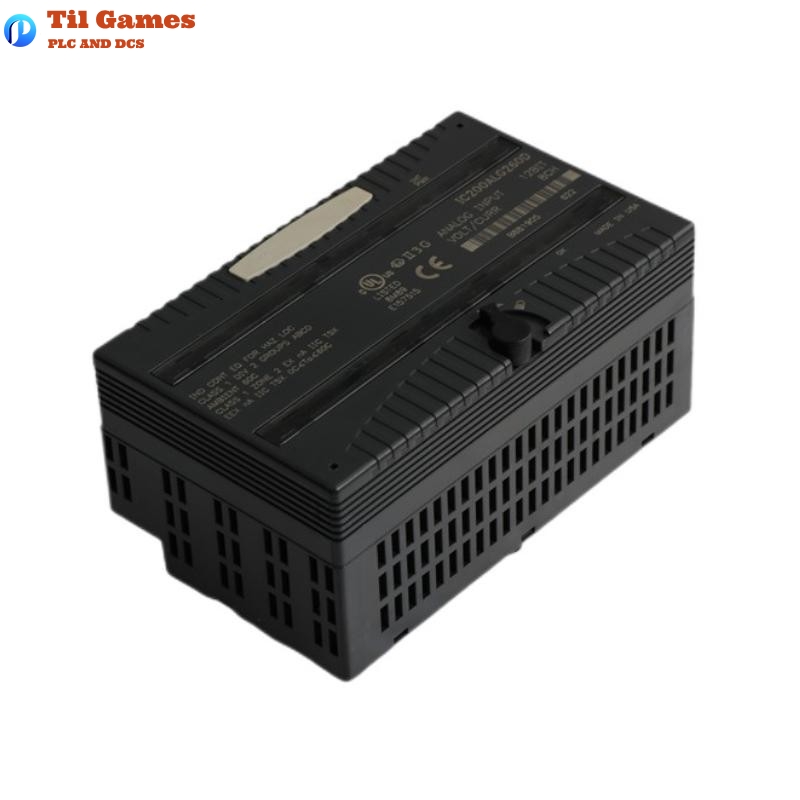

Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Analog Input Module |
| Input Channels | 8 single-ended inputs (1 group) |
| Input Signal Type | Voltage or Current |
| Resolution | 12-bit (2.5mV or 4μA = 8 counts) |
| Input Range (Voltage) | ±10VDC (default), 0 to 10VDC (jumper selectable) |
| Input Range (Current) | 4–20mA |
| Input Impedance (Voltage Mode) | 126 kΩ max |
| Input Impedance (Current Mode) | 200 Ω max |
| Accuracy (25°C) | ±0.3% of full scale typical; ±0.5% max |
| Accuracy (0–60°C) | ±1.0% of full scale |
| Crosstalk Rejection | ≥30 dB minimum between channels |
| Filter Response Time | 5.0 ms |
| Update Rate per Module | 0.4 ms |
| Power Supply | Powered from backplane, no external power required |
| Backplane Current Consumption | 130 mA @ 5VDC |
| Isolation (Input to Logic & Frame Ground) | 250 VAC continuous, 1500 VAC for 1 minute |
| Diagnostics | Loss of internal power detection |
| Configuration Method | Two onboard jumpers (mode and range selection) |
| LED Indicators | “INT PWR” for field power; “OK” for backplane power |
| Dimensions | 110 mm x 66.8 mm x 50 mm |
| Weight | 1.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signals does the IC200ALG260 module accept?
A1: The module accepts either voltage inputs (±10VDC or 0–10VDC) or current inputs (4–20mA). Configuration is done using onboard jumpers.
Q2: How many input channels does the IC200ALG260 provide?
A2: It offers 8 single-ended analog input channels grouped into one group, supporting either voltage or current input per channel.
Q3: Is external power required to operate the module?
A3: No. The module operates using backplane power only. However, an external power source is required for the connected field transceivers.
Q4: What is the resolution of the analog input signals?
A4: The resolution is 12-bit. For voltage mode, this equates to 2.5 mV per 8 counts. For current mode, it equates to 4 μA per 8 counts.
Q5: Does the module provide isolation between input channels?
A5: No, there is no channel-to-channel isolation. However, there is optical isolation between user inputs and logic/frame ground (250 VAC continuous).
Q6: What kind of diagnostics are available on this module?
A6: The module reports a “Loss of Internal Power” diagnostic fault if field-side power fails.
Q7: How is the mode (voltage or current) configured on the IC200ALG260?
A7: Mode selection is accomplished using jumpers on the carrier board. One jumper selects between current and voltage, and another jumper adjusts the voltage range.
Q8: What are the environmental operating conditions for the IC200ALG260?
A8: The module maintains its accuracy up to ±1.0% of full scale over a temperature range of 0 to 60°C. It is also suitable for use in Class I, Division 2 hazardous locations when properly installed.
