Technical Specifications
| Parameter | Description |
|---|---|

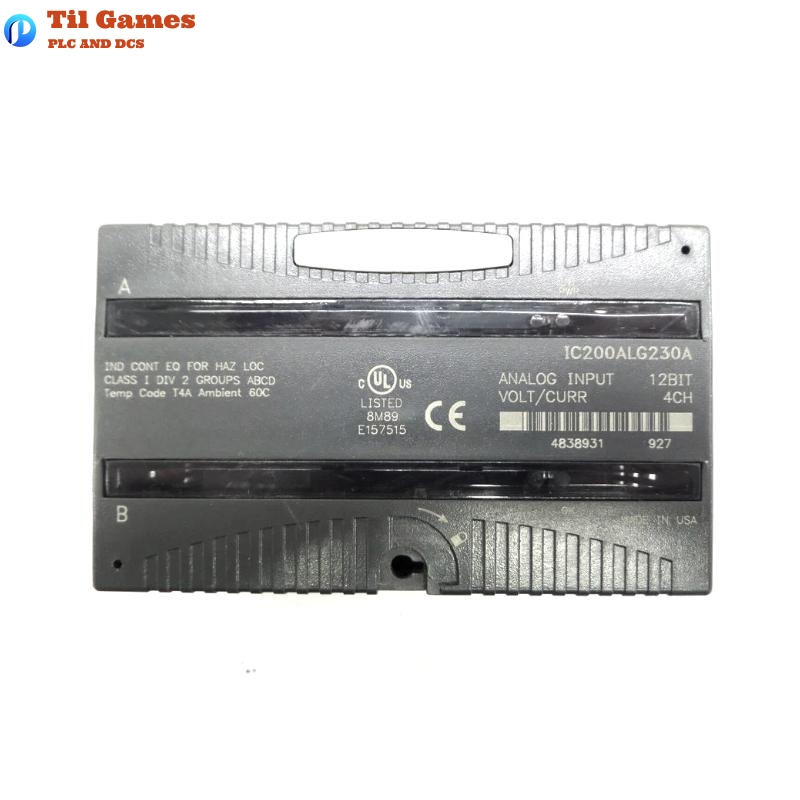

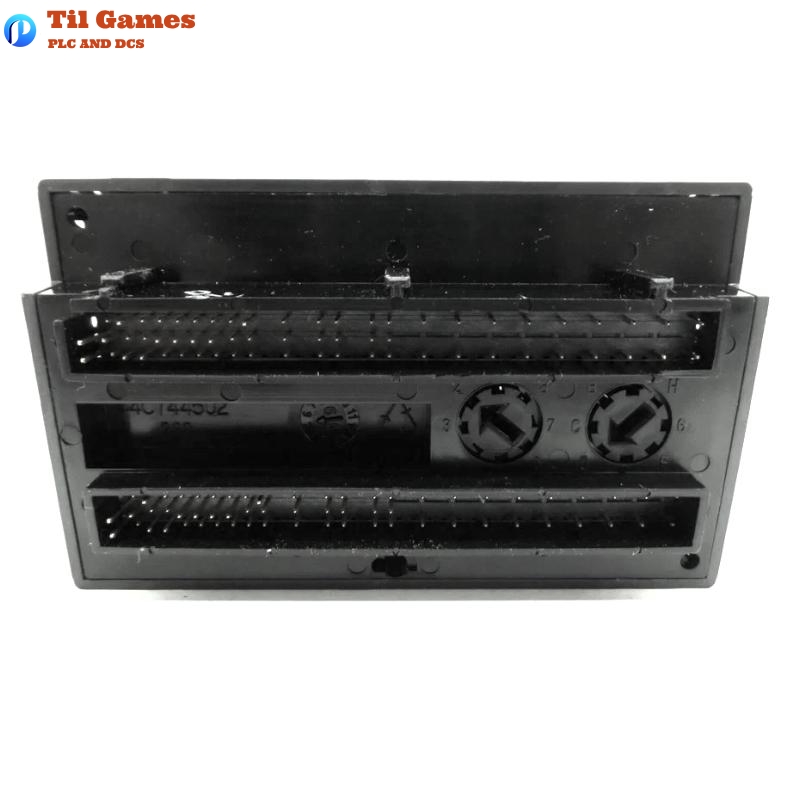

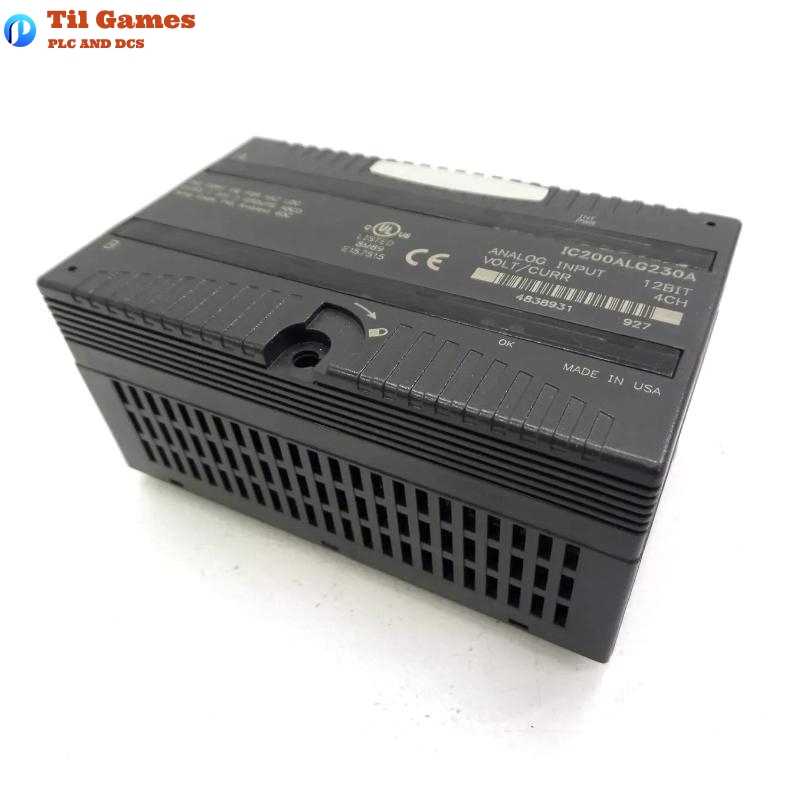

| Product Model | IC200ALG230A |
| Product Type | Analog Input Module |
| Channels | 4 single-ended inputs |
| Input Types | Voltage or Current (Selectable via jumper) |
| Voltage Range (Bipolar/Default) | ±10 VDC |
| Voltage Range (Unipolar) | 0 to 10 VDC (jumper selectable) |
| Current Range | 4 to 20 mA (jumper selectable) |
| Input Impedance (Voltage Mode) | 126 kΩ max |
| Input Impedance (Current Mode) | 200 Ω max |
| Resolution (Voltage Mode) | 2.5 mV = 8 counts |
| Resolution (Current Mode) | 4 µA = 8 counts |
| Accuracy at 25°C | ±0.3% typical, ±0.5% max of full scale |
| Accuracy at 0–60°C | ±1% max of full scale |
| Update Rate per Module | 0.4 ms |
| Filter Response Time | 5 ms |
| Crosstalk Rejection | 30 dB minimum (channel-to-channel) |
| Common Mode Voltage | 0 V |
| Power Source | From backplane, no external power required |
| Backplane Current Consumption | 5V @ 125 mA max |
| Diagnostics | Loss of Internal Power |
| LED Indicators | OK (Backplane Power Present), INT PWR (Internal Power Present) |
| Configuration Method | Jumper selectable: Voltage/Current, Unipolar/Bipolar |
| Electrical Isolation | 250 VAC continuous (user input to logic and ground), 1500 VAC for 1 minute |
| External Power for Sensors | Required (for user transceivers) |
| Dimensions | 110 mm x 66.8 mm x 50 mm |
| Weight | 0.141 kg |
FAQ
Frequently Asked Questions (FAQs)
Q1: What types of analog signals does the IC200ALG230A support?
A1: It supports either voltage (±10 VDC or 0–10 VDC) or current (4–20 mA) signals, selectable via onboard jumpers.
Q2: Can I use both voltage and current inputs simultaneously on different channels?
A2: No, all channels must be configured for the same mode—either voltage or current—using the jumper configuration.
Q3: How accurate is the module in varying temperatures?
A3: At 25°C, accuracy is ±0.3% typical and ±0.5% max. Across 0–60°C, accuracy is within ±1% of full scale.
Q4: Does the IC200ALG230A require an external power supply?
A4: No, the module itself is powered via the backplane, but external power is required for input transceivers.
Q5: How is signal isolation achieved in the module?
A5: Isolation of 250 VAC continuous (1500 VAC for 1 minute) is provided between user input and logic/frame ground.
Q6: What happens to the analog input values if an internal fault occurs?
A6: The module can be configured to either hold the last value or go to a preset default value upon fault detection.
Q7: How fast does the module update its input data?
A7: The IC200ALG230A updates all input data every 0.4 milliseconds.
Q8: How are configuration changes made to the input mode?
A8: Configuration is made via jumpers on the I/O carrier that select between current/voltage mode and voltage range.
