Technical Specifications
| Parameter | Details |
|---|---|

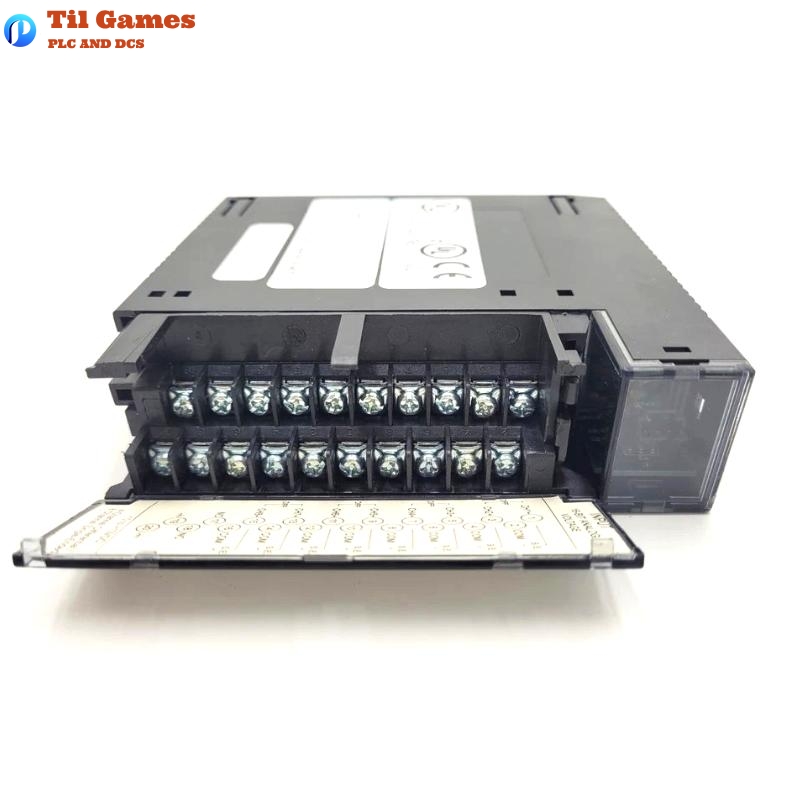

| Product Model | GE HE693ADC816D |
| Product Type | Analog Input Module |
| System Platform | PACSystems RX3i |
| Input Channels | 8 differential or 16 single-ended |
| Input Type | Voltage or Current |
| Voltage Input Range | ±10 VDC |
| Current Input Range | 4 to 20 mA |
| Resolution | 16-bit |
| Input Impedance | >100 kΩ for voltage, 250 Ω for current |
| Update Rate | Configurable per channel (typ. 5 ms) |
| Isolation | 1500 V RMS (channel to backplane) |
| Module Power Requirement | 100 mA at 5 VDC |
| Diagnostics | Open wire detection, over/under range |
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input signals can the HE693ADC816D module accept?
A1: It can accept both voltage (±10 VDC) and current (4–20 mA) input signals.
Q2: How many input channels are available on the HE693ADC816D?
A2: The module offers 8 differential channels or 16 single-ended channels.
Q3: Is the HE693ADC816D module isolated from the backplane?
A3: Yes, each input channel is isolated from the backplane with 1500 V RMS isolation.
Q4: What is the resolution of the analog-to-digital conversion?
A4: The module provides a 16-bit resolution for high-accuracy data acquisition.
Q5: Can the module detect wiring faults such as open wires?
A5: Yes, it supports open wire detection for enhanced diagnostic capabilities.
Q6: What is the typical input impedance of the HE693ADC816D?
A6: For voltage inputs, it is greater than 100 kΩ; for current inputs, it is 250 Ω.
Q7: Is this module hot-swappable in a PACSystems RX3i rack?
A7: No, the HE693ADC816D is not hot-swappable. The system must be powered down during installation or replacement.
Q8: What is the typical update rate for analog inputs?
A8: The update rate is configurable, with a typical value around 5 milliseconds per channel.
