Technical Specifications
| Parameter | Value |
|---|---|

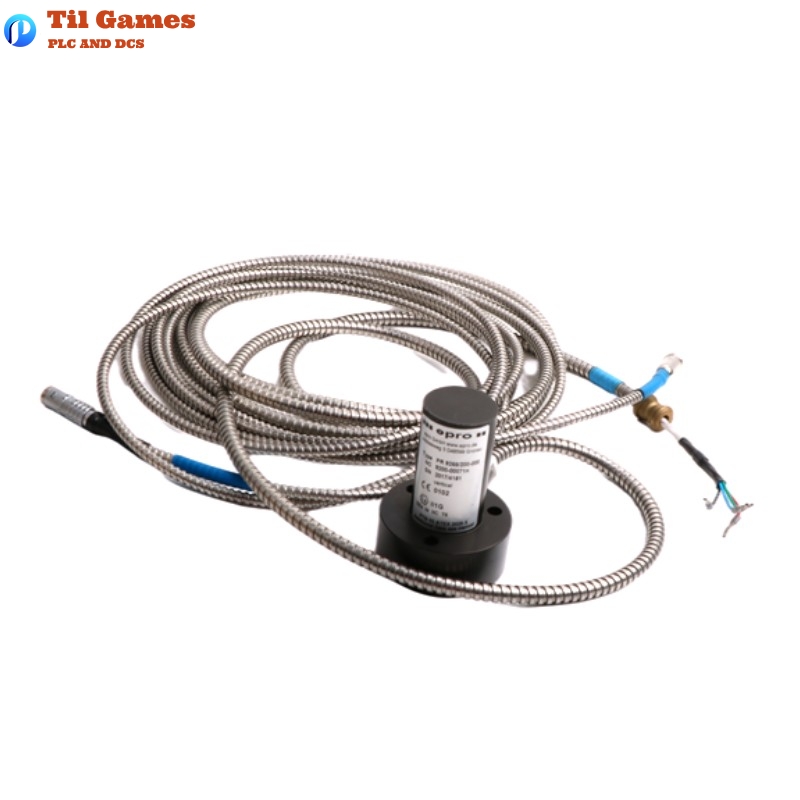

| Model | PR9268/303-000 |
| Measuring Principle | Low tuned measuring principle for absolute vibrations |
| Measuring Direction | Omnidirectional |
| Frequency Range | 4 Hz – 1000 Hz |
| Natural Frequency | 4.5 Hz ± 0.75% (20°C, 100 kΩ load) |
| Sensitivity | 28.5 mV/(mm/s) ±5% (20°C, 80 Hz) |
| Damping Factor | 0.56 (20°C, 100 kΩ load) |
| Maximum Amplitude | 3000 µm peak-peak |
| Maximum Acceleration | 10 g peak-peak (continuous), 20 g peak-peak (short-time) |
| Resistance | 1875 Ω ±10% (PR9268/20x-x00, PR9268/30x-x00) |
| Weight | 0.93 kg |
| Dimensions | 78 × 58 mm |
| Operating Temperature Range | -20°C to +100°C (without connector) |
| Protection Class | IP 65 |
| Connector | 6-pole Harting plug (only for PR9268/01x-000 types) |
FAQ
FAQs
Q1: What types of vibration measurements is this sensor suitable for?
A1: The PR9268/303-000 sensor is suitable for omnidirectional absolute vibration measurements, offering high sensitivity and a wide frequency response for various industrial applications.
Q2: What is the maximum vibration amplitude of this sensor?
A2: The maximum vibration amplitude of this sensor is 3000 µm peak-peak.
Q3: What is the operating temperature range of the sensor?
A3: The operating temperature range is -20°C to +100°C (without connector).
Q4: In which industrial applications can the PR9268/303-000 be used?
A4: This sensor is used in machinery health monitoring, vibration analysis, and predictive maintenance.
Q5: What are the power supply requirements for the sensor?
A5: The sensor requires a 24V safety low voltage power supply for proper operation.
Q6: What is the output signal of this sensor?
A6: The output signal of the sensor is a voltage signal with a sensitivity of 28.5 mV/(mm/s), designed for a standard 100 kΩ load.
Q7: What are the dimensions and weight of the sensor?
A7: The sensor’s dimensions are 78 × 58 mm, and it weighs 0.93 kg.
Q8: Is this sensor suitable for hazardous environments?
A8: Yes, the PR9268/303-000 sensor meets explosion protection standards and is suitable for installation in specified hazardous areas (e.g., Zone 1 or Zone 2), following relevant installation guidelines.
