Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 78 × 58 mm |
| Weight | 0.93 kg |
| Measuring Principle | Electro-dynamic, low tuned measuring principle for absolute vibrations |
| Measuring Direction | Omni directional (PR 9268/01x-x00), Vertical (PR 9268/20x-x00), Horizontal (PR 9268/30x-x00) |
| Frequency Range | 10 Hz to 1000 Hz (PR 9268/60x-000 and PR 9268/70x-000), 4 Hz to 1000 Hz (PR 9268/20x-x00 and PR 9268/30x-x00) |
| Sensitivity | 28.5 mV/(mm/s) ±5% (PR 9268/20x-x00, PR 9268/30x-x00) |
| Damping Factor | 0.56 (at 20°C, 100 kΩ load) |
| Transverse Sensitivity | 0.1 at 80 Hz (PR 9268/60x-000), 0.13 at 110 Hz (PR 9268/20x-x00) |
| Operating Temperature | -20°C to +100°C (standard), -20°C to +200°C (PR 9268/60x-000 and PR 9268/70x-000) |
| Protection Class | IP 65 (PR 9268/01x-x00), IP 55 (PR 9268/20x-x00, PR 9268/30x-x00), IP 65 (PR 9268/60x-000, PR 9268/70x-000) |
| Insulation Resistance | > 1 MΩ (test voltage 500 V AC) |
| Inductance | <90 mH (PR 9268/01x-x00, PR 9268/20x-x00, PR 9268/30x-x00), <160 mH (PR 9268/60x-000, PR 9268/70x-000) |
| Capacity Against Housing | <1.2 nF (PR 9268/01x-x00, PR 9268/20x-x00, PR 9268/30x-x00), Insignificant (PR 9268/60x-000, PR 9268/70x-000) |
FAQ
Frequently Asked Questions (FAQ)
-

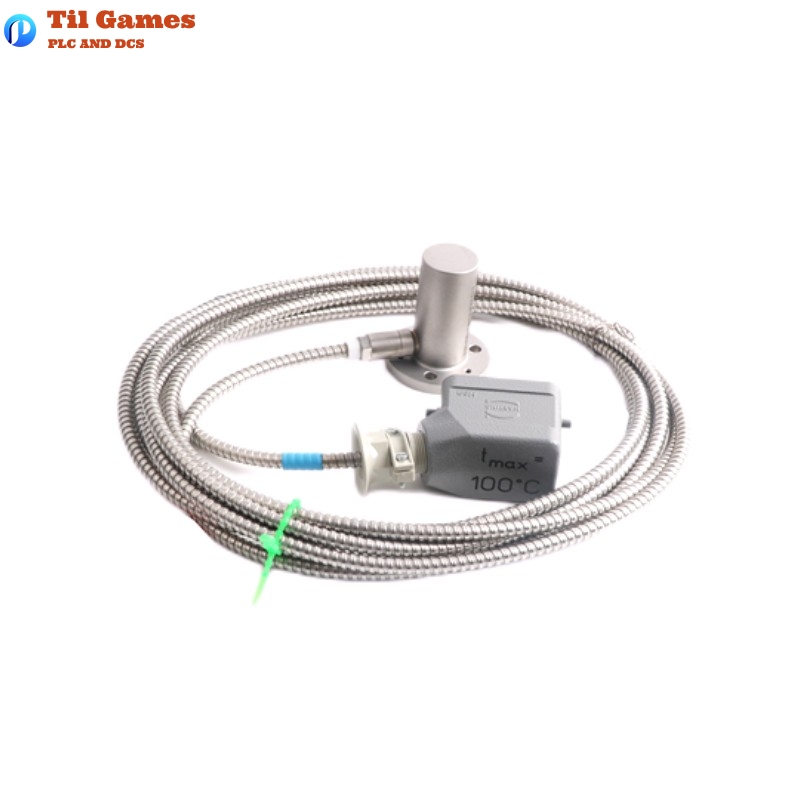

Q: What is the maximum vibration amplitude for the PR9268/301-000 sensor?
-
A: The maximum vibration amplitude at the nominal mounting position is 3000 µm peak-to-peak.
-
-
Q: What is the recommended lifting current for mounting deviations?
-
A: The recommended maximum lifting current is 1.8 mA for the PR 9268/30x-x00 model with a deviation of ±60° from the nominal direction.
-
-
Q: Can the PR9268/301-000 sensor be used in explosive environments?
-
A: Yes, the PR9268/301-000 is certified for hazardous location installations under ATEX/IECEx standards for intrinsic safety.
-
-
Q: What is the temperature range for storing and transporting the PR9268/301-000?
-
A: The sensor can be stored and transported within a temperature range of -40°C to +100°C without packing and -40°C to +70°C with packing.
-
-
Q: What is the connection method for the PR9268/301-000?
-
A: The sensor is connected using a 6-pole Harting plug (for PR 9268/01x-000 types) or a 2-pole C-5051 plug (for PR 9268/018-900).
-
-
Q: How should the PR9268/301-000 sensor be mounted for optimal performance?
-
A: For optimal performance, ensure the sensor is mounted within the specified deviation angles from the nominal position, with or without sinking/lifting current depending on the model.
-
-
Q: What is the weight of the PR9268/301-000 sensor without the cable?
-
A: The weight of the sensor without the cable is approximately 280 g.
-
-
Q: What are the dimensions of the PR9268/301-000?
-
A: The dimensions of the PR9268/301-000 are 78 × 58 mm.
-
