Technical Specifications
| Parameter | Value |
|---|---|

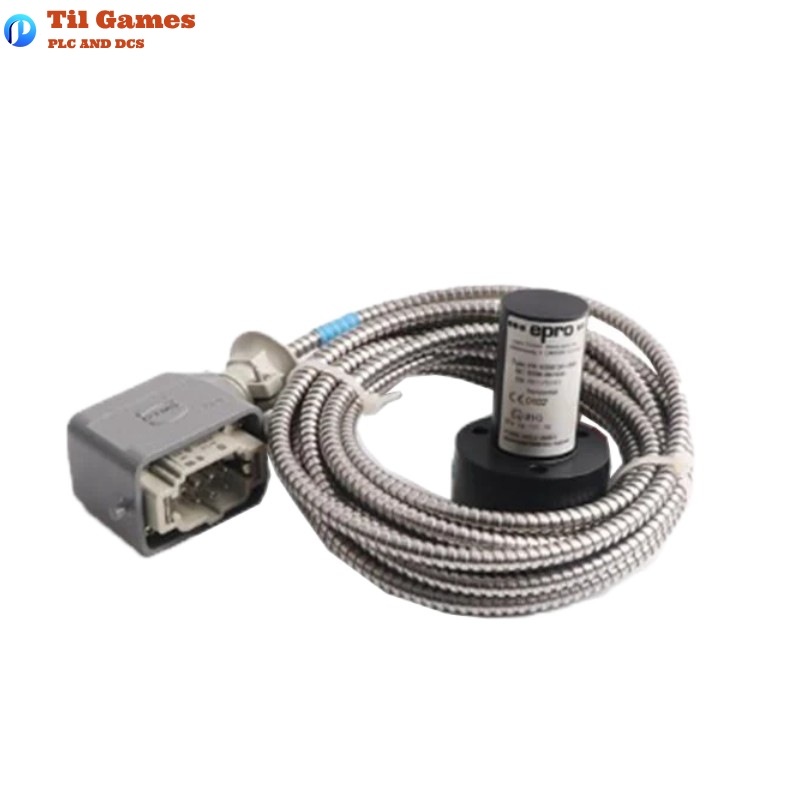

| Model | PR9268/206-100 |
| Dimensions | 78 × 58 mm |
| Weight | 0.93 kg |
| Measuring Direction | Omni-directional |
| Temperature Range | -20 to +100°C (up to 120°C for short periods) |
| Protection Class | IP65 |
| Frequency Range | 4 Hz to 1000 Hz |
| Natural Frequency | 4.5 Hz ±0.75 Hz (at 20°C) |
| Sensitivity | 28.5 mV/(mm/s) ±5% |
| Damping Factor | 0.56 (at 20°C and 100 kΩ load) |
| Resistance Measuring Coil | 1875 Ω ±10% |
| Insulation Resistance | >1 MΩ (test voltage 500V AC) |
FAQ
FAQ
Q1: What is the measuring range of the PR9268/206-100 sensor?
A1: The measuring range is 3000 µm peak-to-peak at the nominal mounting position.
Q2: What is the typical application of this sensor?
A2: The sensor is used for measuring absolute vibrations in a variety of industrial environments, particularly in monitoring machinery health.
Q3: Can the PR9268/206-100 sensor be used in explosive environments?
A3: Yes, certain models in the PR9268 series are certified for use in explosive hazardous areas, including PR9268/20x-x00 and PR9268/30x-x00.
Q4: What is the power supply requirement for the sensor?
A4: The sensor requires a 24V safety low voltage power supply to operate properly.
Q5: How should the sensor be installed?
A5: The sensor should be mounted on a flat and clean surface. Care should be taken to prevent damage to the cable during installation.
Q6: What is the cable length for the PR9268/206-100 sensor?
A6: The sensor comes with various cable lengths depending on the model, typically ranging from 3 meters to 10 meters.
Q7: What is the recommended maximum vibration amplitude for the sensor?
A7: The maximum vibration amplitude at the nominal mounting position is 3000 µm peak-to-peak, with limit stops at 4000 µm peak-to-peak.
Q8: Is maintenance required for this sensor?
A8: The sensor does not require any regular maintenance during operation, but it should be periodically checked for faults like cable damage or incorrect measurements.
