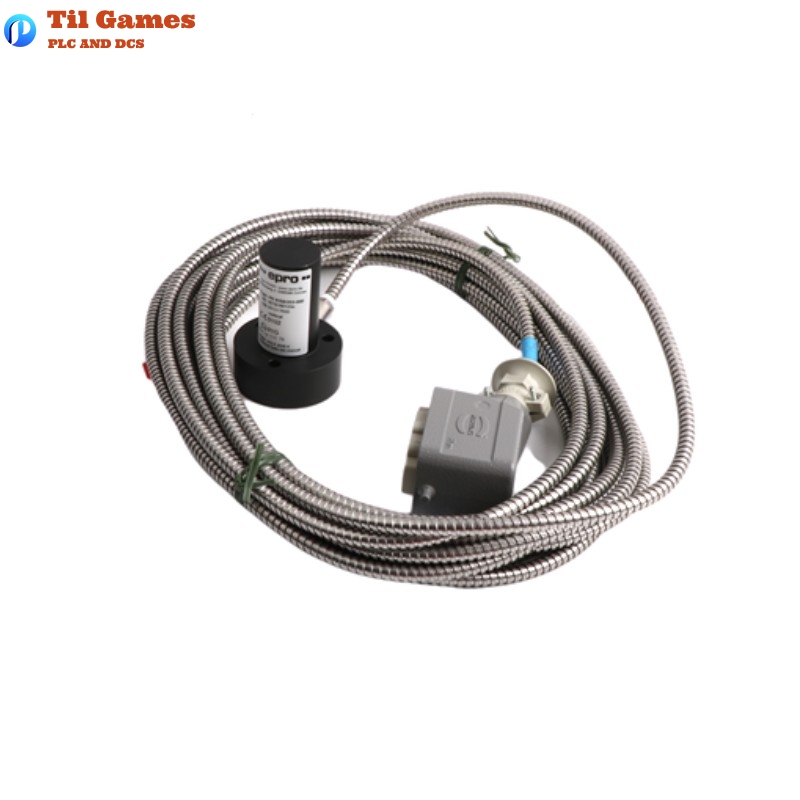

Epro PR9268/017-100 Machinery Health Sensor
| Parameter | Specification |
|---|---|
| Model Number | PR9268/017-100 |
| Measuring Principle | Electrodynamic (Seismic) |
| Measuring Direction | Omnidirectional |
| Frequency Range | 14 Hz to 1000 Hz |
| Natural Frequency | 14 Hz ±7% at 20°C |
| Sensitivity | 17.5 mV/(mm/s) ±8.5 % (at 80 Hz, 100 kΩ load, 20°C) |
| Transverse Sensitivity | <0.1 g at 80 Hz |
| Linearity Error | <2 % |
| Maximum Vibration Amplitude | 500 µm peak-to-peak |
| Limit Stops | 4000 µm peak-to-peak |
| Permissible Acceleration (Meas. Dir.) | 10 g continuous / 20 g short-time |
| Permissible Acceleration (Transverse) | 2 g peak-to-peak |
| Damping Factor | ~0.6 |
| Resistance (Measuring Coil) | 1732 Ω ±2 % |
| Inductance | <90 mH |
| Insulation Resistance | >1 MΩ @ 500 V AC |
| Capacitance (to housing) | <1.2 nF |
| Operating Temperature | -20 °C to +100 °C (up to 120 °C <4h) |
| Storage Temperature | -40 °C to +100 °C (without packing) / -40 °C to +70 °C (with packing) |
| Protection Class | IP65 |
| Material | Stainless Steel (1.4104) |
| Connector Options | 2-pin C-5015 Plug / 6-pin Harting (PR9268/01x-000) / Open Cable End |
| Cable Type | FEP/PTFE-insulated, 3-wire, AWG 20 |
| Mounting Method | M10x1 to M6 bolt (torque: 3.8 to 4.4 Nm) |
| Dimensions | 78 × 58 mm |
| Weight | 0.28 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of vibrations can the PR9268/017-100 measure?
A1: It is designed to measure absolute vibration velocities in an omnidirectional range using a seismic measurement principle.
Q2: What is the expected sensitivity of the sensor?
A2: The nominal sensitivity is 17.5 mV per mm/s, measured at 80 Hz and 20°C under a 100 kΩ load.
Q3: What kind of environment is the sensor suitable for?
A3: The sensor is built with a stainless steel housing and rated IP65, suitable for harsh industrial environments up to 100°C.
Q4: Can the PR9268/017-100 be used in explosive atmospheres?
A4: No, this specific model is not certified for hazardous location use. Models like PR9268/20x or 60x variants are suitable for such environments.
Q5: How should the sensor be mounted?
A5: It should be mounted using the supplied M10x1 to M6 bolt on a clean, flat surface, and tightened with a torque of 3.8 to 4.4 Nm.
Q6: What kind of signal output does this sensor provide?
A6: The output is an analog voltage proportional to the vibration velocity, generated by the relative motion between coil and housing.
Q7: Is the sensor maintenance-free?
A7: Yes, the sensor is maintenance-free under normal operating conditions. However, periodic resistance and insulation checks are recommended.
Q8: What is the maximum vibration amplitude the sensor can withstand?
A8: The sensor supports a vibration amplitude of up to 500 µm peak-to-peak, with 4000 µm as the mechanical limit stop.
