Technical Specifications
| Parameter | Specification |
|---|---|

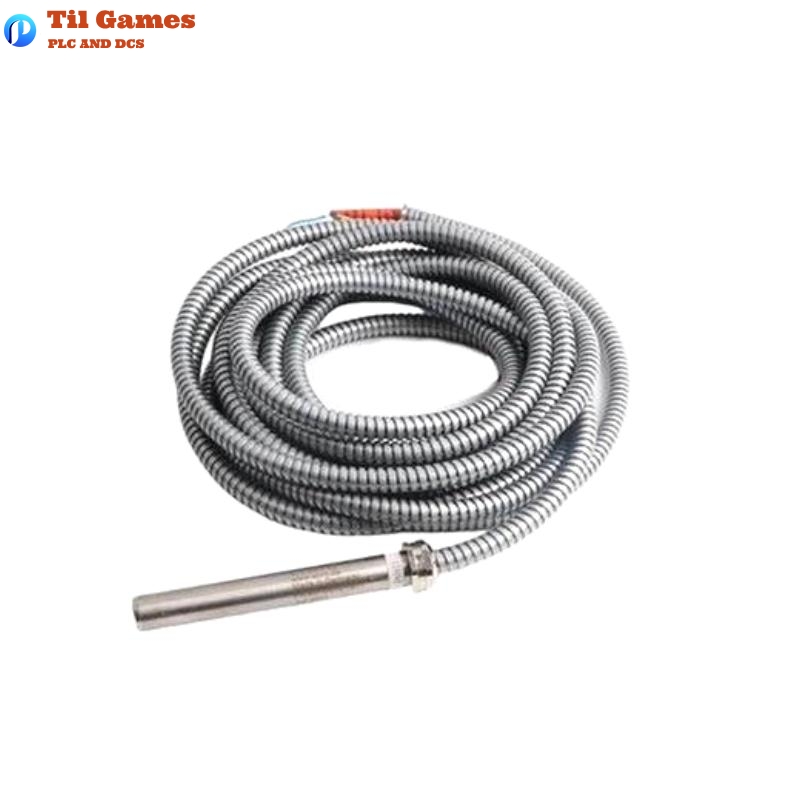

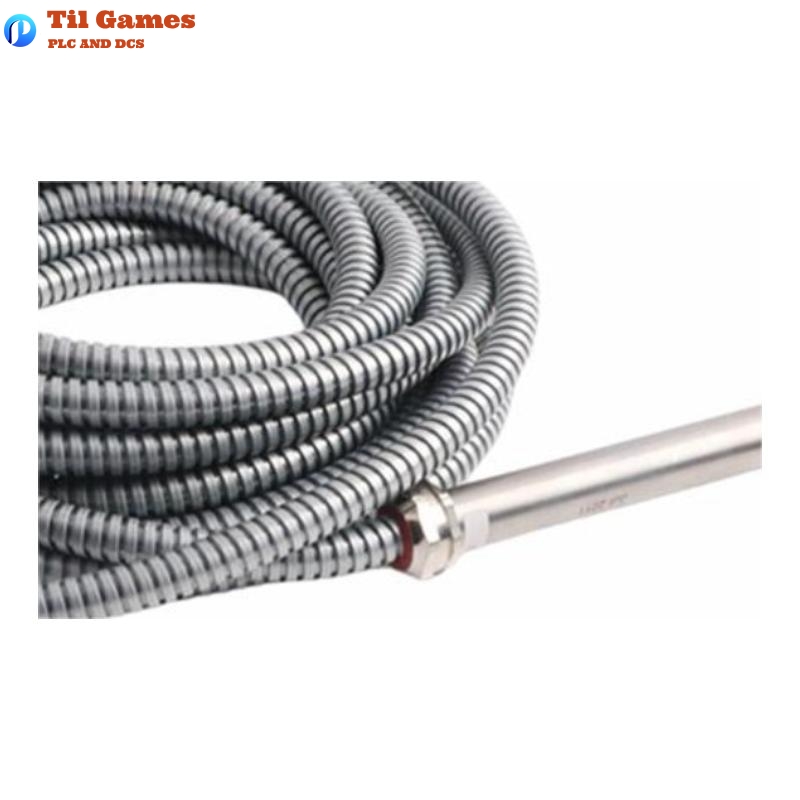

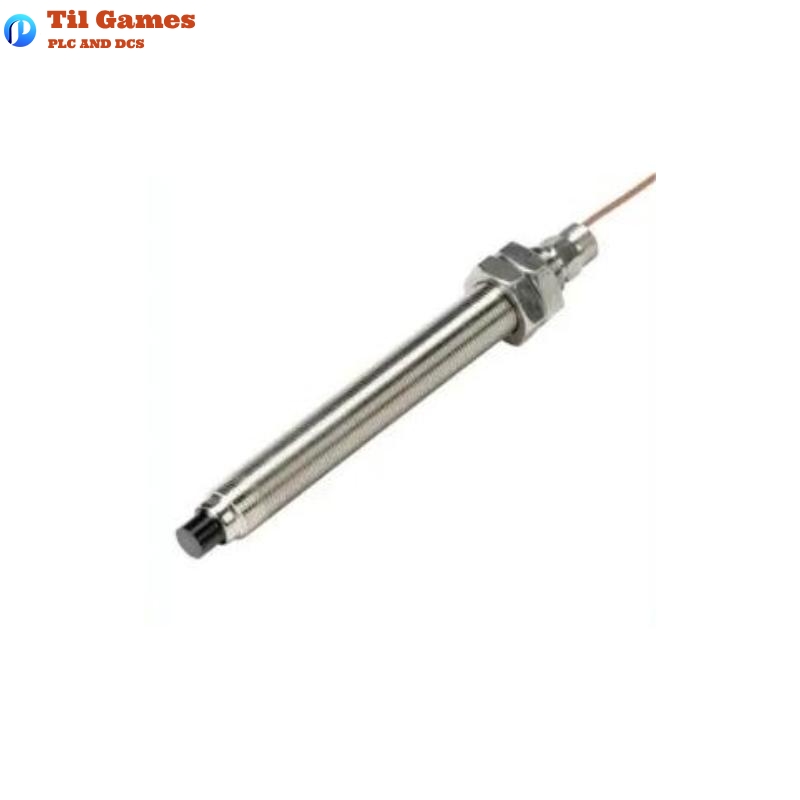

| Model | PR6453/230-101 |
| Sensor Type | Eddy Current Sensor |
| Tip Diameter | 12.5 mm |
| Measurement Range (Position) | ±1.0 mm |
| Vibration Measurement Range | 50 to 500 µm Peak-to-Peak |
| Frequency Range | 0 to 20 kHz |
| Sensitivity | 8 V/mm (203.2 mV/mil) ±1.5% |
| Sensor Body Thread Options | M18x1, M20x1, M20x1.5, M24x1 |
| Operating Temperature Range | -35 to +180°C (-31 to +250°F) |
| Agency Approvals | CE, CSA, ATEX (Refer to converter specifications for full approval scope) |
| Minimum Shaft Diameter | ≥25 mm (0.984 in) |
| Transducer Head Diameter | 12.5 mm |
| Weight | Approx. 0.8 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the PR6453/230-101 sensor?
A1: It is used for non-contact vibration and position measurements in medium-diameter rotating shafts, commonly in turbines, compressors, and pumps.
Q2: What distinguishes this sensor from others in the PR64xx series?
A2: The PR6453 offers a 12.5 mm tip diameter and medium-range measurement capability (±1.0 mm), optimized for shaft diameters ≥25 mm, bridging the gap between PR6422 (small shafts) and PR6424/6425 (large shafts).
Q3: Can this sensor be used in high-temperature environments?
A3: Yes, the sensor is rated for continuous operation from -35°C up to +180°C.
Q4: Is the PR6453/230-101 suitable for hazardous areas?
A4: Yes, it has CE, CSA, and ATEX approvals when used with the appropriate converter, making it suitable for hazardous area installations.
Q5: What converter modules are compatible with the PR6453?
A5: It is compatible with converters such as CON011, CON021, CON031, and CON041 from Emerson, each suited for different mounting environments.
Q6: How close can two PR6453 sensors be mounted?
A6: Thanks to the flexible excitation frequency design, sensors can be mounted as close as 12 mm center-to-center without cross-talk, when properly configured.
Q7: What is the output signal of the sensor?
A7: The sensor works with external converters to deliver voltage signals (e.g., -4 to -20 V range depending on the converter).
Q8: Is the sensor tip replaceable or serviceable?
A8: No, the sensor is a sealed hermetic unit; field repair or tip replacement is not supported. Damaged units must be replaced entirely.
