Technical Specifications

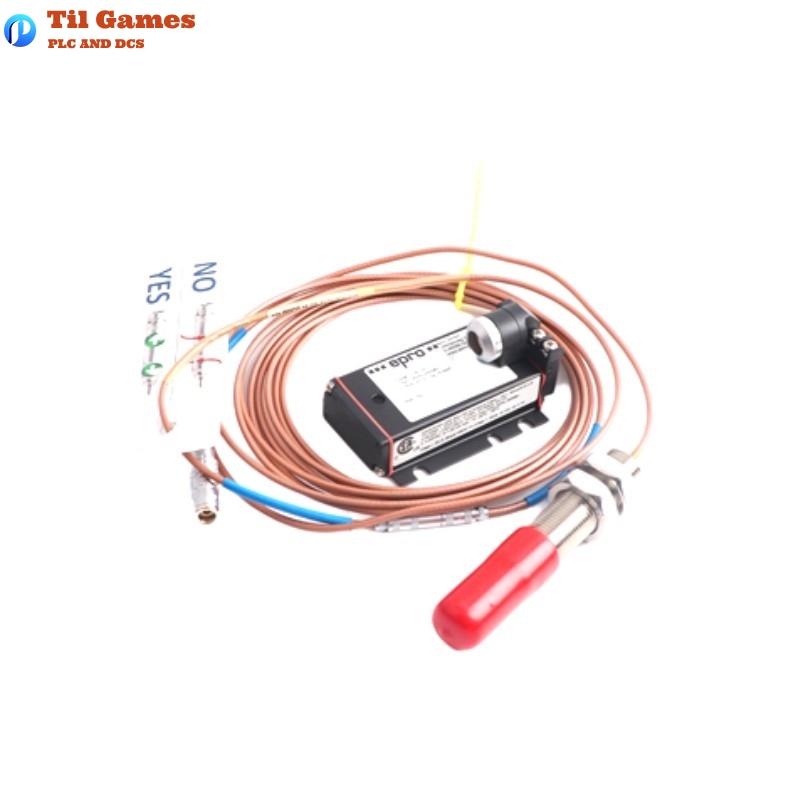

PR6424/012-010 Eddy Current Sensor
| Parameter | Specification |
|---|---|
| Sensor Type | Non-contact Eddy Current Sensor |
| Measurement Functions | Radial/axial shaft displacement, position, eccentricity, speed/key |
| Sensitivity/Linearity | 4 V/mm (101.6 mV/mil), ≤ ±1.5% |
| Air Gap (Center) | Approx. 2.7 mm (0.11”) nominal |
| Static Range | ±2.0 mm (0.079”) |
| Dynamic Range | 0 to 1,000 μm (0 to 0.039”) |
| Target Material | Ferromagnetic steel (42 Cr Mo4 Standard) |
| Minimum Shaft Diameter | ≥80 mm |
| Max Surface Speed | 2,500 m/s (98,425 ips) |
| Long-term Drift | <0.3% |
| Operating Temperature Range | -35 to +150°C (-31 to +302°F) |
| Temperature Error | <4% / 100°K (API 670 compliant) |
| Pressure Resistance | 10,000 hPa (145 psi) |
| Shock and Vibration | 5g @ 60 Hz @ 25°C |
| Material | Sleeve – Stainless steel; Cable – PTFE |
| Weight | Approx. 0.2 kg (with 1 m cable, no armor) |
| Sensor Head Diameter | 16 mm |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL (various standards) |
| Temperature Classifications | T6: Ta ≤ 84°C, T4: Ta ≤ 114°C, T3: Ta ≤ 160°C |

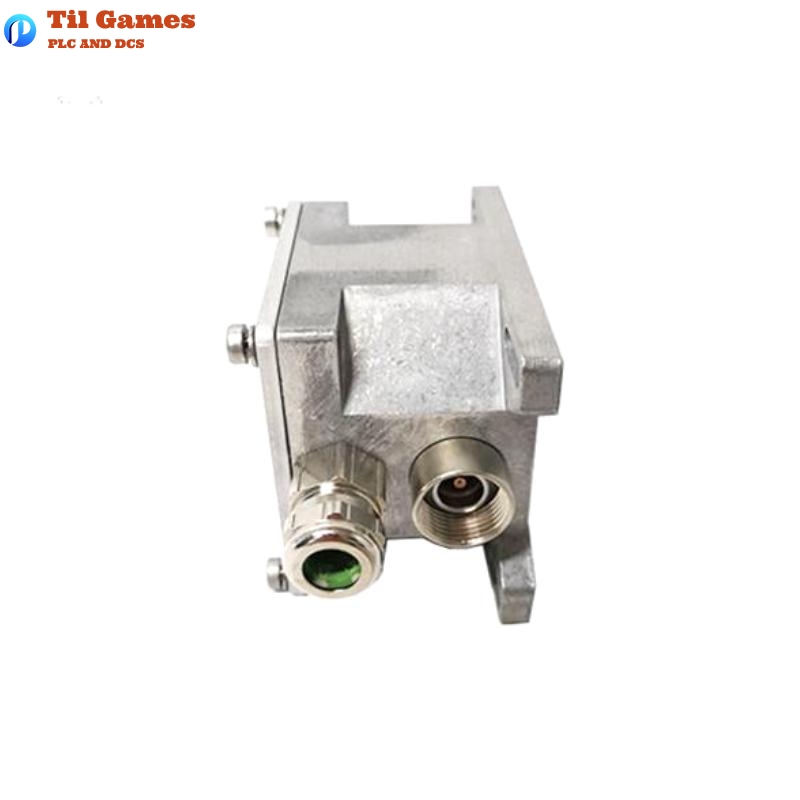

CON011 Eddy Current Signal Converter
| Parameter | Specification |
|---|---|
| Input Sensor Compatibility | PR6422, PR6423, PR6424, PR6425, PR6426 |
| Frequency Range (-3 dB) | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Extended Measuring Range | Available (e.g. CON011/914-100 for 10 mm with PR6424) |
| Operating Temperature Range | -30 to +100°C (-22 to +212°F) |
| Protection Class | IP65 |
| Supply Voltage Range | -23V to -32V / -21V to -32V (depending on output range) |
| Output Voltage Range | -4V to -20V / -2V to -18V |
| Housing Material | GD-ALSi9Cu3 |
| Weight | Approx. 0.6 kg (600 g) |
| Mounting | 4 × M5x20 screws (included) |
| Connections | Lemo plug (transducer); spring terminals (power/output) |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL (various standards) |
| Intrinsic Safety Classification | Ex ia IIC T6 Ga / CSA Division 1 & 2, T6 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main application of the PR6424/012-010 sensor?
A1: It is designed for non-contact measurement of shaft displacement, position, and vibration in high-performance rotating machinery such as turbines, compressors, pumps, and fans.
Q2: What is the standard sensitivity of the PR6424 sensor?
A2: The sensitivity is 4 V/mm (equivalent to 101.6 mV/mil) with a linearity of ≤ ±1.5%.
Q3: What type of material must the shaft be for accurate measurement?
A3: The target surface should be made of ferromagnetic steel, specifically 42CrMo4 or equivalent.
Q4: What is the minimum shaft diameter required for the PR6424 sensor?
A4: The shaft diameter must be at least 80 mm for reliable measurement.
Q5: What certifications does the sensor and converter pair hold for hazardous environments?
A5: Both units are certified under ATEX, IEC-Ex, and CSA standards for use in hazardous areas, including intrinsic safety and non-sparking classifications.
Q6: Is the CON011 converter suitable for all PR6424 sensor ranges?
A6: Yes, but extended measurement ranges (up to 10 mm) require specific converter variants, such as CON011/914-100 for PR6424.
Q7: What is the protection rating of the CON011 converter?
A7: The CON011 is rated IP65, offering complete protection against dust ingress and water jets.
Q8: What is the weight of the complete sensor and converter assembly?
A8: The sensor weighs approximately 0.2 kg, and the converter weighs approximately 0.6 kg, resulting in a combined weight of around 0.8 kg.
