Product Parameters

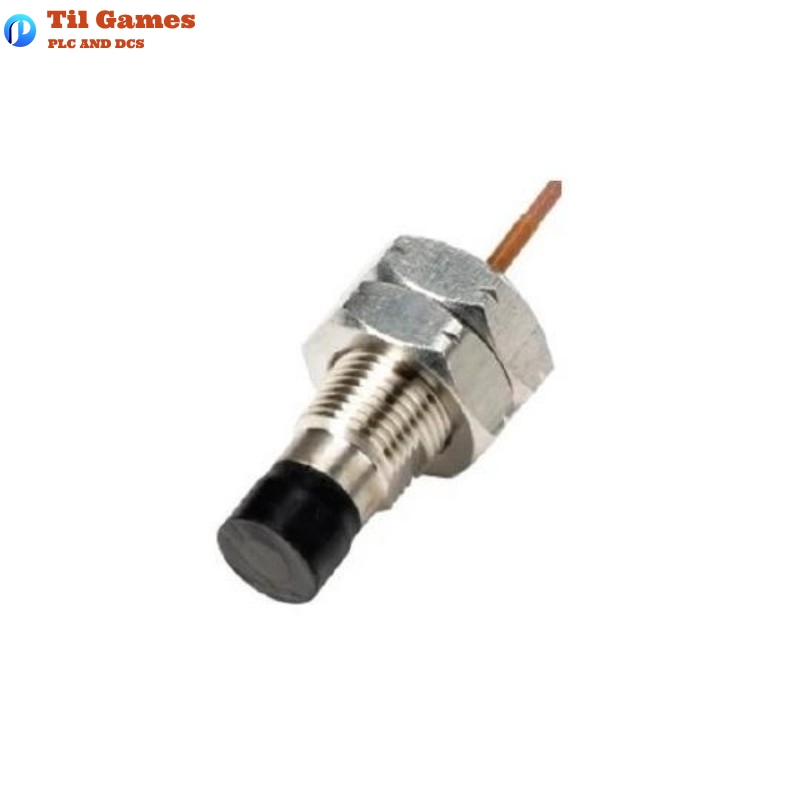

PR6424/010-140 – 16mm Eddy Current Sensor
| Parameter | Specification |
|---|---|
| Sensor Type | Non-contact Eddy Current Displacement Sensor |
| Sensitivity / Linearity | 4 V/mm (101.6 mV/mil) ≤ ±1.5% |
| Static Measurement Range | ±2.0 mm (0.079″) |
| Dynamic Measurement Range | 0 to 1,000 μm (0 to 0.039″) |
| Air Gap (Center) | Approx. 2.7 mm (0.11″) nominal |
| Target Material | Ferromagnetic Steel (42CrMo4 Standard) |
| Maximum Shaft Surface Speed | 2,500 m/s (98,425 ips) |
| Shaft Diameter | ≥80 mm |
| Long-Term Drift | <0.3% |
| Operating Temperature Range | -35 to 150°C (-31 to 302°F) |
| Temperature Error | <4% / 100K (API 670 Compliant) |
| Pressure Resistance | 10,000 hPa (145 psi) |
| Shock and Vibration | 5g @ 60 Hz @ 25°C (77°F) |
| Housing Material | Sleeve – Stainless Steel, Cable – PTFE |
| Weight | Approx. 0.8 kg (Sensor + 1m Cable) |
| Dimensions (Probe Head) | 16 mm diameter |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
| Hazardous Area Rating | Depends on converter; Temp Class: T6, T4, T3 based on ambient |
CON011 – Eddy Current Signal Converter
| Parameter | Specification |
|---|---|
| Compatible Sensors | PR6422, PR6423, PR6424, PR6425, PR6426 |
| Frequency Response (-3 dB) | 0 – 20,000 Hz |
| Rise Time | <15 µs |
| Power Supply Voltage | -23V to -32V |
| Output Voltage Range | -4V to -20V (or -2V to -18V depending on supply) |
| Operating Temperature Range | -30 to 100°C (-22 to 212°F) |
| Protection Class | IP65 |
| Shock and Vibration | 5g @ 60 Hz @ 25°C |
| Housing Material | GD-ALSi9Cu3 Aluminum Alloy |
| Weight | Approx. 0.6 kg (600 grams) |
| Mounting | Panel Mount with 4 x M5x20 screws |
| Connections | LEMO plug for sensor, spring terminal for power/output |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
| Hazardous Area Approvals | Intrinsic Safety and Non-Sparking certified (based on model variant) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the measurement range of the PR6424 sensor?
A1: The PR6424 sensor offers a static measurement range of ±2.0 mm and a dynamic range of 0 to 1,000 μm.
Q2: What material is recommended for the shaft target surface?
A2: The sensor is designed to operate with ferromagnetic steel, typically 42CrMo4.
Q3: Can the PR6424 sensor operate in high-temperature environments?
A3: Yes, the sensor operates in ambient temperatures ranging from -35°C to 150°C.
Q4: What kind of signal output does the CON011 converter provide?
A4: The converter outputs voltage in the range of -4V to -20V or -2V to -18V depending on the supply voltage.
Q5: What is the sensitivity and linearity error of this sensor-converter combination?
A5: The sensitivity is 4 V/mm with a linearity error of ≤ ±1.5%.
Q6: Is the system compliant with international hazardous area certifications?
A6: Yes, both sensor and converter are certified under ATEX, IEC-Ex, CSA, and UL standards for hazardous environments.
Q7: What is the recommended minimum shaft diameter for accurate measurement?
A7: A shaft diameter of at least 80 mm is recommended for optimal sensor performance.
Q8: Is the system resistant to vibration and mechanical shock?
A8: Yes, both components withstand 5g at 60 Hz at room temperature without performance degradation.
