Technical Specifications Table

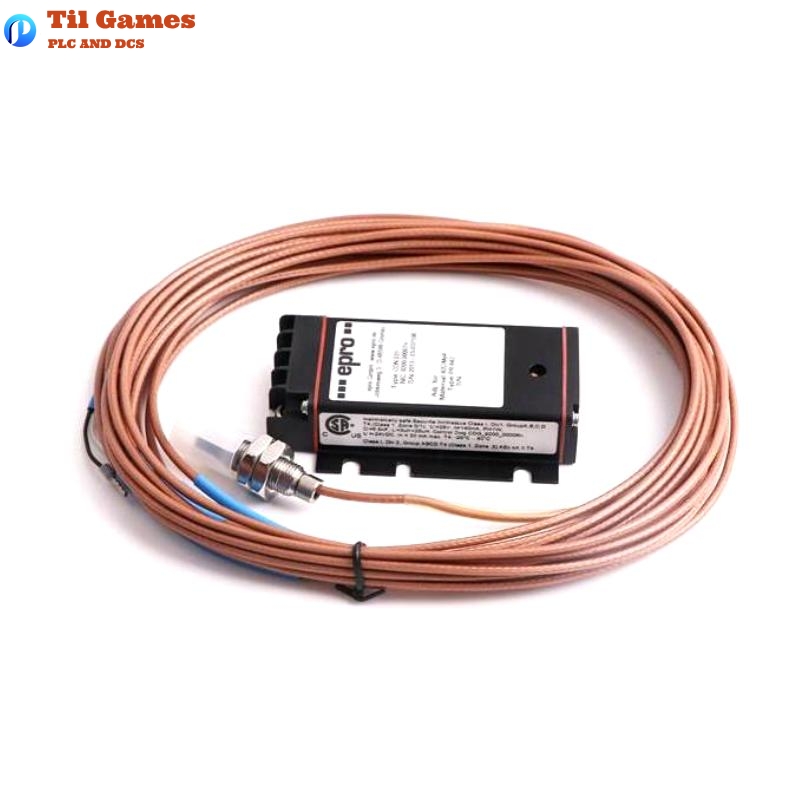

PR6424/010-131 Eddy Current Sensor (16mm)
| Parameter | Specification |
|---|---|
| Sensor Type | Non-contact Eddy Current Sensor |
| Sensitivity / Linearity | 4 V/mm (101.6 mV/mil), ≤ ±1.5% |
| Static Measurement Range | ±2.0 mm (0.079”) |
| Dynamic Measurement Range | 0 to 1,000 μm (0 to 0.039”) |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4) |
| Minimum Shaft Diameter | ≥80 mm |
| Maximum Surface Speed | 2,500 m/s (98,425 ips) |
| Center Air Gap | Approx. 2.7 mm (0.11”) nominal |
| Long-Term Drift | <0.3% |
| Operating Temperature Range | -35 to +150°C (-31 to +302°F) |
| Temperature Error | <4%/100 K (API 670 Compliant) |
| Pressure Resistance | Up to 10,000 hPa (145 psi) |
| Shock and Vibration | 5g @ 60 Hz @ 25°C (77°F) |
| Material | Sleeve: Stainless Steel; Cable: PTFE |
| Weight | Approx. 200 grams (0.32 kg) |
| Diameter (Sensor Head) | 16 mm |
| Compliance | CE, ATEX, IECEx, CSA certified |
CON031 Eddy Current Signal Converter
| Parameter | Specification |
|---|---|
| Compatible Sensors | PR6422, PR6423, PR6424, PR6425, PR6426 |
| Frequency Range (-3 dB) | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Supply Voltage Range | -23V to -32V (-4V to -20V output) |
| Alternate Supply Voltage Range | -21V to -32V (-2V to -18V output) |
| Operating Temperature Range | -30 to +100°C (-22 to +212°F) |
| Protection Class | IP20 |
| Shock and Vibration | 5g @ 60 Hz @ 25°C (77°F) |
| Material (Housing) | ALMgSi 0.5 F22 |
| Mounting | 4 Screws M5x20 (included) |
| Electrical Connection | Screw terminals (max 1.5 mm², wire-end sleeves) |
| Weight | Approx. 120 grams (0.12 kg) |
| Compliance | CE, ATEX, IECEx, CSA certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the PR6424/010-131 sensor?
A1: It is used for non-contact measurement of shaft vibration, position, and speed in turbomachinery applications such as turbines, compressors, and pumps.
Q2: What is the measurement range of the PR6424 sensor?
A2: The sensor supports a static measurement range of ±2.0 mm and a dynamic range of 0 to 1,000 μm.
Q3: Can the PR6424 sensor operate in high-temperature environments?
A3: Yes, it can operate in temperatures ranging from -35°C to +150°C.
Q4: What is the required shaft diameter for reliable measurement with the PR6424?
A4: The shaft must be at least 80 mm in diameter.
Q5: Is the CON031 converter compatible with the PR6424 sensor?
A5: Yes, the CON031 is specifically designed to work with the PR6424 and other Epro PR64xx series sensors.
Q6: What power supply does the CON031 converter require?
A6: It requires a voltage supply between -23V to -32V depending on the desired output range.
Q7: What is the maximum vibration or shock the system can handle?
A7: Both the sensor and the converter are rated for 5g at 60 Hz under standard operating conditions.
Q8: Are the PR6424 and CON031 certified for use in hazardous areas?
A8: Yes, both components are ATEX, IECEx, and CSA certified for use in hazardous environments when properly installed with certified converters and barriers.
