Product Description
The Epro PR6424/010-100+CON021 is a precision-engineered eddy current sensor system, comprising the PR6424 16mm sensor and CON021 signal converter, designed to deliver high-resolution measurements in critical rotating machinery applications. With a non-contact design, the system reliably monitors radial and axial shaft displacement, position, eccentricity, and rotational speed/key-phasing. Ideal for deployment in steam turbines, gas turbines, hydro turbines, compressors, pumps, and fans, this sensor system ensures robust condition monitoring in demanding industrial environments.
The PR6424 sensor features a stainless steel body and PTFE cable, while the CON021 signal converter ensures accurate signal transformation and safety compliance. Together, they meet stringent certifications for hazardous area installations and industrial-grade reliability.
Product Specifications
PR6424/010-100 Sensor Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current (Non-contact) |
| Sensitivity | 4 V/mm (101.6 mV/mil) |
| Linearity | ≤ ±1.5% |
| Static Measurement Range | ±2.0 mm (0.079”) |
| Dynamic Measurement Range | 0 to 1,000 µm (0 to 0.039”) |
| Nominal Air Gap (Center) | Approx. 2.7 mm (0.11”) |
| Target Material | Ferromagnetic steel (42CrMo4) |
| Minimum Shaft Diameter | ≥ 80 mm |
| Max Surface Speed | 2,500 m/s (98,425 ips) |
| Operating Temperature | -35°C to +150°C (-31°F to +302°F) |
| Pressure Resistance (Sensor Head) | 10,000 hPa (145 psi) |
| Shock/Vibration | 5g @ 60 Hz @ 25°C |
| Sensor Head Diameter | 16 mm |
| Weight (Sensor with 1m Cable) | ~0.32 kg |
| Cable Material | PTFE |
| Sleeve Material | Stainless Steel |
| Certifications | CE, ATEX, IEC-Ex, CSA, UL |
| Sensor Length | 100 mm (Model /010-100) |

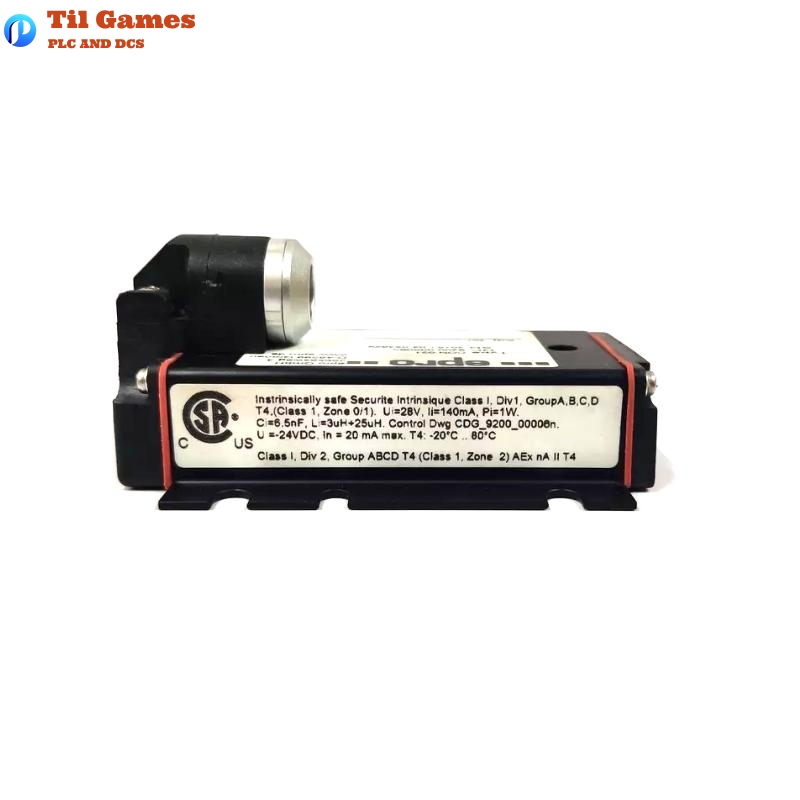

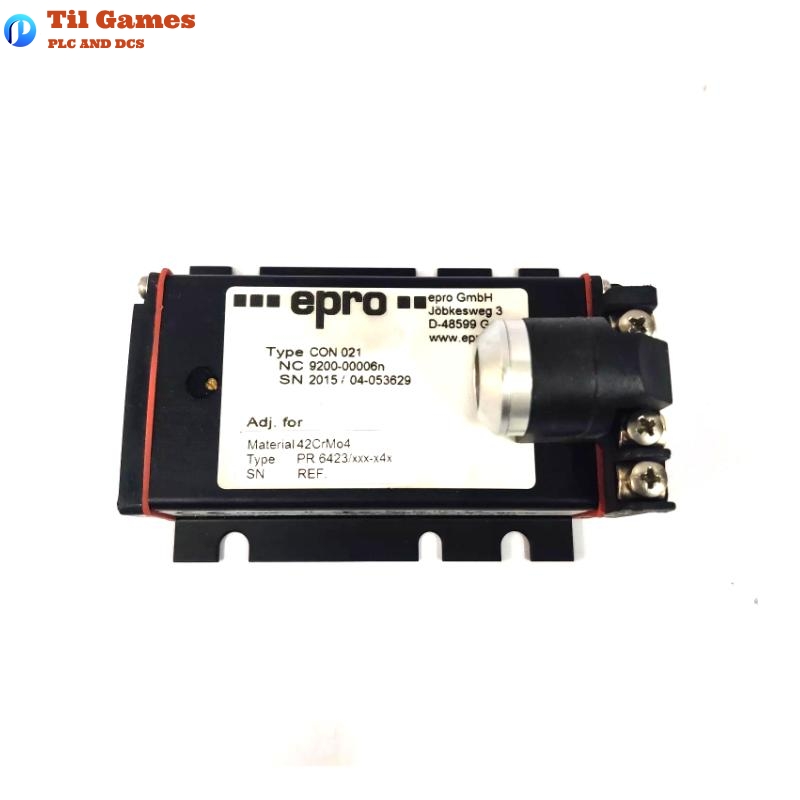

CON021 Signal Converter Specifications
| Parameter | Specification |
|---|---|
| Compatible Sensors | PR6422, PR6423, PR6424, PR6425, PR6426 |
| Measuring Range (Standard) | Up to 10.0 mm (depends on configuration) |
| Frequency Range | 0 to 20,000 Hz |
| Rise Time | <15 µs |
| Power Supply | -23V to -32V DC |
| Output Range | -4V to -20V / -2V to -18V |
| Operating Temperature | -30°C to +100°C (-22°F to 212°F) |
| Shock/Vibration | 5g @ 60 Hz @ 25°C |
| Protection Rating | IP20 |
| Mounting | Panel Mount with M5 Screws |
| Housing Material | LMgSi 0.5 F22 |
| Weight | ~120 g (4.24 oz) |
| Compliance | CE, ATEX, IEC-Ex, CSA, UL |
Product Features
-
Non-Contact Sensing: Enables reliable operation without mechanical wear.
-
High Sensitivity: Provides precision measurement of displacement and vibration.
-
Rugged Design: Engineered with stainless steel housing and PTFE cable for harsh industrial conditions.
-
Wide Operating Range: Supports temperatures from -35°C to 150°C for extreme environments.
-
Excellent Linearity: Maintains accuracy within ±1.5%.
-
Hazardous Area Approvals: Certified for ATEX, CSA, and IEC-Ex zones.
-
Easy Integration: Compatible with a wide range of Epro signal converters and systems.
Product Advantages
-
Long-Term Stability: <0.3% drift ensures consistent measurement over extended periods.
-
Extended Range Compatibility: When paired with the CON021, supports up to 10 mm range.
-
High-Speed Capability: Handles shaft surface speeds up to 2,500 m/s.
-
Intrinsically Safe Options: Ideal for installations in explosive environments.
-
Versatile Applications: Effective in both static and dynamic monitoring applications.
-
Compact Form Factor: Small footprint makes it suitable for limited-space installations.
Applications
-
Turbomachinery Monitoring: Gas, steam, and hydro turbines.
-
Rotating Equipment Diagnostics: Compressors, pumps, and blowers.
-
Condition-Based Maintenance Systems.
-
Keyphasor/Speed Probes.
-
OEM Installations and Upgrades.
-
Vibration Monitoring Systems in Power and Process Industries.
Latest News Headlines (Product Related)
-
“Epro PR6424 Series Expanded with Enhanced Converter Compatibility for Turbomachinery Applications”
-
“CON021 Converter Now Certified for Broader ATEX Zones with PR6424 Sensor”
-
“Epro Enhances Eddy Current Sensor Line for Higher Temperature Tolerance and Dynamic Response”
Related Models in the Same Series
| Model Number | Description | Range | Compatibility |
|---|---|---|---|
| PR6424/010-060+CON021 | 16mm Sensor + Signal Converter (60mm) | ±2.0 mm | Standard CON021 |
| PR6424/010-080+CON021 | 16mm Sensor + Signal Converter (80mm) | ±2.0 mm | Standard CON021 |
| PR6424/010-150+CON021 | 16mm Sensor + Signal Converter (150mm) | ±2.0 mm | Extended Range Converter |
| PR6424/010-200+CON021 | 16mm Sensor + Signal Converter (200mm) | ±2.0 mm | Extended Range Converter |
| PR6424/010-290+CON021 | 16mm Sensor + Signal Converter (290mm) | ±2.0 mm | Extended Range Converter |
| PR6423/010-040+CON021 | 11mm Sensor + Signal Converter (40mm) | ±1.5 mm | Extended Converter |
Popular Models from Epro
| Model Number | Description | Sensor Diameter | Weight | Compatible Converter |
|---|---|---|---|---|
| PR6422/010-010 | 5mm Eddy Current Sensor | 5 mm | ~0.25 kg | CON021 |
| PR6423/010-030 | 11mm Eddy Current Sensor | 11 mm | ~0.28 kg | CON021 |
| PR6424/010-080 | 16mm Eddy Current Sensor | 16 mm | ~0.32 kg | CON021 |
| PR6425/010-060 | 25mm Eddy Current Sensor | 25 mm | ~0.40 kg | CON021 |
| PR6426/010-120 | 37mm Eddy Current Sensor | 37 mm | ~0.55 kg | CON021 |
| PR9268/301-000 | Piezo Vibration Sensor | N/A | ~0.20 kg | N/A |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the PR6424/010-100+CON021 system?
A1: It measures radial and axial shaft displacement, position, eccentricity, and speed in rotating machinery using non-contact eddy current technology.
Q2: What is the sensor’s sensitivity?
A2: The PR6424 has a sensitivity of 4 V/mm (or 101.6 mV/mil).
Q3: What kind of materials can the sensor detect?
A3: It is designed to detect movement of ferromagnetic materials, typically steel (42CrMo4 standard).
Q4: Is the PR6424/010-100 suitable for hazardous environments?
A4: Yes, it has certifications such as ATEX, IEC-Ex, and CSA, making it compliant for hazardous locations.
Q5: Can I use this sensor system in high-temperature environments?
A5: Yes, the sensor operates reliably from -35°C to 150°C, and the converter supports up to 100°C.
Q6: What is the maximum shaft surface speed supported?
A6: The sensor supports up to 2,500 m/s (98,425 ips) of shaft surface speed.
Q7: What output signal does the CON021 converter provide?
A7: It provides a voltage output in the range of -4V to -20V or -2V to -18V, depending on the supply voltage.
Q8: What is the difference between standard and extended range models?
A8: Standard range models measure up to 4 mm, while extended range configurations (e.g., CON021/914-100) can measure up to 10 mm with tailored accuracy.
