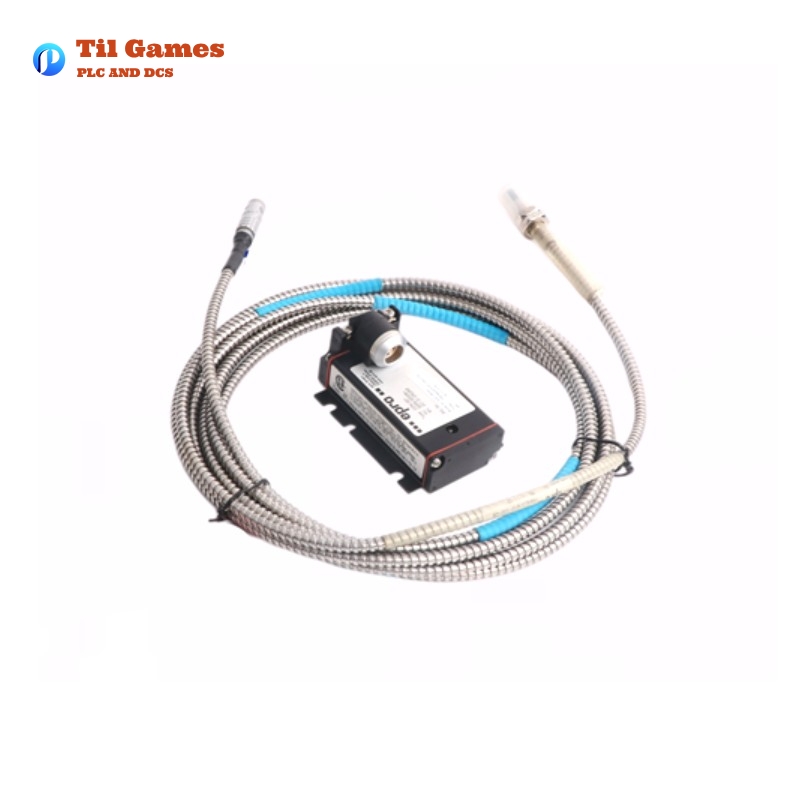

Epro PR6423/018-010 8mm Eddy Current Sensor

Epro PR6423/018-010 8mm Eddy Current Sensor

Manufacturer:Epro

Product Number:PR6423/018-010

Product Type:8mm Eddy Current Sensor

Origin:Germany

Sensor Head Diameter:8 mm

Weight:0.1 kg

Views:5

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-018-010-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-018-010-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-018-010-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-018-010-4-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Epro PR6423/018-010 8mm Eddy Current Sensor is a non-contact sensor designed to monitor critical components in turbomachinery applications, including steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans. It is specifically used for measuring radial and axial shaft dynamic displacement, position, eccentricity, and speed. The sensor’s advanced design ensures high precision, reliability, and durability in harsh industrial environments.

Key Product Parameters

Parameter Specification
Sensor Tip Diameter 8 mm
Measuring Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor (ISF) 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C
Deviation from Best Fit Line ± 0.025 mm (± 1 mil) @ 0 to 45°C
Shaft Diameter (Min.) 25 mm (0.79″)
Target Material Ferromagnetic Steel (42CrMo4 / AISI/SAE 4140)
Environmental Protection IP66, IEC 60529
Operating Temperature -35 to +180°C (sensor), -35 to +150°C (cable)
Weight Approx. 100 g (3.53 oz)
Material Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE
Cable Length 1m (standard), customizable lengths available

Product Features

  • Non-contact Measurement: The sensor provides accurate measurements without physical contact with the measured surface, reducing wear and tear.

  • High Precision: The incremental scale factor ensures accurate readings with minimal deviation from the best-fit line, offering precise monitoring.

  • Wide Operating Range: The sensor operates in a broad temperature range and is built to withstand extreme conditions in industrial settings.

  • Durability: The IP66 protection rating and robust material construction allow the sensor to function reliably in harsh environments, including exposure to high temperatures and moisture.

  • Certified for Hazardous Areas: The sensor complies with various hazardous area certifications such as ATEX and IEC-Ex, making it suitable for use in explosive atmospheres.

  • Versatile Applications: It is ideal for use in measuring shaft displacement, eccentricity, and speed in critical machinery, contributing to better monitoring and preventive maintenance strategies.

Product Advantages

  • Enhanced Measurement Accuracy: With minimal deviation and a high scale factor, this sensor delivers precise displacement and position readings, essential for machinery health monitoring.

  • Long Service Life: Designed for critical applications, it offers long-term durability with resistance to harsh industrial conditions.

  • Customizable Options: The sensor can be customized with various cable lengths and mounting configurations, making it adaptable to specific application needs.

  • Explosion-Proof Certifications: With approvals for use in hazardous environments, it is safe for deployment in areas with potential for explosive atmospheres.

  • Reduced Maintenance Needs: The non-contact nature of the sensor minimizes wear, reducing the frequency and cost of maintenance.

Applications

  • Turbomachinery Monitoring: Used extensively in turbines (steam, gas, hydro), compressors, and gearboxes for real-time monitoring of shaft displacement and speed.

  • Pumps and Fans: Ideal for continuous monitoring of pumps and fans to prevent mechanical failure and optimize operation.

  • Critical Machinery Maintenance: Helps ensure proper alignment and functioning of rotating machinery, contributing to predictive maintenance programs.

Related Models and Products

Model Key Features Application
PR6423/00 No armored cable, M10x1 thread Standard applications
PR6423/01 Armored cable, M10x1 thread Harsh environments
PR6423/10 No armored cable, 3/8-24 UNF thread General applications
PR6423/11 Armored cable, 3/8-24 UNF thread Harsh environments
PR6423/03 Armored cable, 3/8-24 UNF, Reverse Mount Turbomachinery applications
PR6423/13 Armored cable, 3/8-24 UNF, Reverse Mount, Enhanced version Specialized industrial use

Popular Epro Models

Model Key Features Measuring Range Target Material Applications
PR6423/018-010 8mm Eddy Current Sensor with armored cable option 2 mm Ferromagnetic Steel Industrial turbines, compressors, pumps
PR6423/00 Basic 8mm Eddy Current Sensor without armored cable 2 mm Steel General machinery monitoring
PR6423/01 8mm Eddy Current Sensor with armored cable 2 mm Steel Harsh industrial environments
PR6423/11 Armored cable, M10x1, reverse mount 2 mm Steel Industrial machinery, safety critical
PR6423/13 Armored cable, reverse mount, enhanced specifications 2 mm Steel Critical machinery maintenance
PR6423/10 Standard 8mm sensor with 3/8-24 UNF thread 2 mm Steel General applications, turbines
FAQ

FAQ

Q1: What is the primary function of the Epro PR6423/018-010 Eddy Current Sensor?
A1: The primary function is to measure radial and axial displacement, position, eccentricity, and speed in critical turbomachinery applications such as turbines, compressors, and pumps.

Q2: Can the PR6423 sensor be used in hazardous environments?
A2: Yes, the PR6423 is certified for hazardous areas, including ATEX, IEC-Ex, and CSA, making it suitable for use in explosive atmospheres.

Q3: What materials are compatible with the PR6423 sensor?
A3: The sensor works with ferromagnetic steel, specifically materials like 42CrMo4 (AISI/SAE 4140), but other materials can be used upon request.

Q4: What is the operating temperature range of the PR6423 sensor?
A4: The sensor can operate in temperatures ranging from -35°C to +180°C, while the cable operates within -35°C to +150°C.

Q5: How is the sensor connected to the system?
A5: The sensor uses a standard 1m cable with a Lemo connector or open cable end, with customizable cable lengths available.

Q6: What is the weight of the PR6423 sensor?
A6: The sensor, including the 1m cable, weighs approximately 100 grams (3.53 oz).

Q7: What industries commonly use the PR6423 sensor?
A7: Common industries include turbomachinery, power generation, oil and gas, and any sector that requires precise displacement measurement of rotating machinery.

Q8: Can the PR6423 sensor be customized for specific applications?
A8: Yes, the sensor can be customized with different cable lengths, mounting options, and armored cable choices for various applications.
