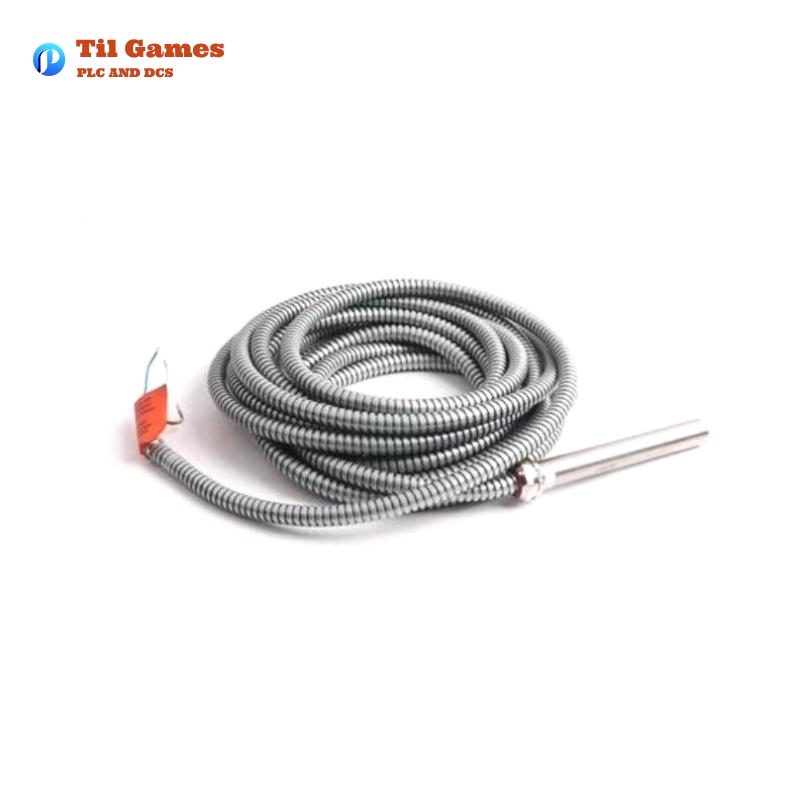

Epro PR6423/016-011-CN 8mm Eddy Current Sensor

Epro PR6423/016-011-CN 8mm Eddy Current Sensor

Manufacturer:Epro

Product Number:PR6423/016-011-CN

Product Type:8mm Eddy Current Sensor

Origin:Germany

Sensor Head Diameter:8 mm

Weight:0.1 kg

Views:7

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-016-011-CN-1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-016-011-CN-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-016-011-CN-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-016-011-CN-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview: Epro PR6423/016-011-CN 8mm Eddy Current Sensor

The Epro PR6423/016-011-CN is an 8mm Eddy Current Sensor designed for critical turbomachinery applications, including turbines, compressors, gearboxes, pumps, and fans. This sensor is used to measure dynamic shaft displacement (both radial and axial), position, eccentricity, and speed without direct contact, making it ideal for monitoring the condition of rotating machinery.


Product Specifications

The following table presents the key parameters of the Epro PR6423/016-011-CN 8mm Eddy Current Sensor:

Parameter Value
Linear Measurement Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor (ISF) 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C (+32 to +113°F)
Deviation from Best Fit Line (DSL) ± 0.025 mm (± 1 mil) @ 0 to 45°C (+32 to +113°F)
Minimum Shaft Diameter 25 mm (0.79″)
Target Material Ferromagnetic Steel (42CrMo4 / AISI 4140)
Protection Class IP66, IEC 60529
Operating Temperature Range Sensor: -35 to +180°C (-31 to 356°F), Cable: -35 to +150°C (-31 to 302°F)
Material Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE
Weight (with 1m Cable) Approx. 100 grams (3.53 oz)
Dimensions Sensor Diameter: 8 mm; Cable Diameter: 2.8 mm (standard), 6 mm (armored)

Product Features

  • Non-Contact Measurement: This sensor operates on the principle of eddy currents, ensuring no physical contact with the rotating machinery. This reduces wear and tear, enhancing reliability and lifespan.

  • High Precision: The sensor provides highly accurate measurements with minimal deviation, ensuring precise monitoring of shaft displacement, eccentricity, and position.

  • Rugged Construction: The sensor is built to withstand harsh environments, with an IP66 protection class ensuring resistance to dust and water ingress.

  • Wide Operating Temperature Range: The PR6423 sensor functions effectively across a broad range of temperatures, from -35°C to +180°C (-31°F to +356°F), making it suitable for high-temperature applications.


Product Advantages

  • Versatile Application: The PR6423 sensor is suitable for a range of critical turbomachinery applications, providing vital data for machinery condition monitoring, preventing failures, and improving operational efficiency.

  • Compact and Lightweight: Despite its robust capabilities, the sensor is compact, with a diameter of just 8mm, and is lightweight (100g), making it easy to integrate into existing systems.

  • Enhanced Durability: The sensor’s stainless steel casing and PEEK sensor tip provide long-term reliability, while its resistance to radiation and extreme temperatures makes it ideal for industrial environments.

  • Certifications: The sensor complies with various international standards, including CE, ATEX, IEC-Ex, and CSA, ensuring its safety and reliability in hazardous areas.


Applications

The Epro PR6423/016-011-CN 8mm Eddy Current Sensor is widely used in:

  • Turbomachinery: For measuring dynamic displacement, position, and eccentricity in steam, gas, and hydro turbines.

  • Compressors and Gearboxes: Monitoring axial and radial displacements for performance evaluation and fault detection.

  • Pumps and Fans: Used in industrial applications to measure speed and position, ensuring optimal operation.


Latest Reports on Epro PR6423

The most recent reports and articles on the Epro PR6423 8mm Eddy Current Sensor include the following:

  1. “Advancements in Non-Contact Measurement Technologies: The Role of Eddy Current Sensors in Turbomachinery”

  2. “How Epro PR6423 Sensors Are Enhancing Safety in Hazardous Environments”

  3. “A Comprehensive Guide to Installing Epro Eddy Current Sensors for Critical Machinery Monitoring”

  4. “The Impact of High-Precision Eddy Current Sensors on Maintenance Strategies in Industrial Applications”


Recommended Related Models (Same Series)

Model Sensor Diameter Case Thread Cable Length Special Features
PR6423/00 8 mm M10x1 25-115 mm Standard Cable
PR6423/01 8 mm M10x1 25-115 mm Armored Cable Option
PR6423/10 8 mm 3/8”-24 UNF 25-115 mm Standard Cable
PR6423/11 8 mm 3/8”-24 UNF 25-115 mm Armored Cable Option
PR6423/13 8 mm 3/8”-24 UNF 25-115 mm Armored Cable & Reverse Mount
PR6423/16 8 mm M10x1 25-115 mm Extended Temperature Range

Recommended Popular Epro Models

Model Sensor Type Measurement Range Target Material Operating Temperature Weight
PR6421/001 Eddy Current Sensor 2 mm Ferromagnetic Steel (42CrMo4) -35 to +180°C 100g
PR6422/015 Eddy Current Sensor 3 mm Stainless Steel -35 to +180°C 105g
PR6430/020 Eddy Current Sensor 5 mm Steel -40 to +150°C 120g
PR6440/010 Eddy Current Sensor 1 mm Ferromagnetic Steel -35 to +180°C 95g
PR6450/001 Eddy Current Sensor 10 mm Stainless Steel -40 to +120°C 130g
PR6460/005 Eddy Current Sensor 2 mm Steel -35 to +180°C 110g
FAQ

FAQ

Q1: What is the working principle of the Epro PR6423 Eddy Current Sensor?

A1: The PR6423 Eddy Current Sensor operates by detecting changes in the magnetic field caused by the displacement of a conductive target. The sensor emits a magnetic field and measures the resulting eddy currents to determine the position of the target.

Q2: What is the operating temperature range of the sensor?

A2: The sensor operates at temperatures between -35°C and +180°C (-31°F to +356°F), while the cable operates in the range of -35°C to +150°C (-31°F to +302°F).

Q3: Can the sensor be used in hazardous environments?

A3: Yes, the sensor complies with ATEX, IEC-Ex, and CSA certifications, making it suitable for use in hazardous areas.

Q4: What is the linear measurement range of the PR6423 sensor?

A4: The linear measurement range of the sensor is 2 mm (80 mils).

Q5: What is the minimum shaft diameter that the sensor can measure?

A5: The minimum shaft diameter that can be measured by the sensor is 25 mm (0.79″).

Q6: How do I install the Epro PR6423 sensor?

A6: The sensor can be installed using M10x1 or 3/8″-24 UNF threaded connections. Specific installation instructions are available in the product manual.

Q7: What materials are compatible with the PR6423 sensor?

A7: The sensor is designed for use with ferromagnetic materials like 42CrMo4 (AISI 4140) steel, but other materials can be used upon request.

Q8: What certifications does the PR6423 sensor have?

A8: The PR6423 sensor is CE-certified, and also complies with ATEX, IEC-Ex, and CSA standards for use in hazardous environments.
