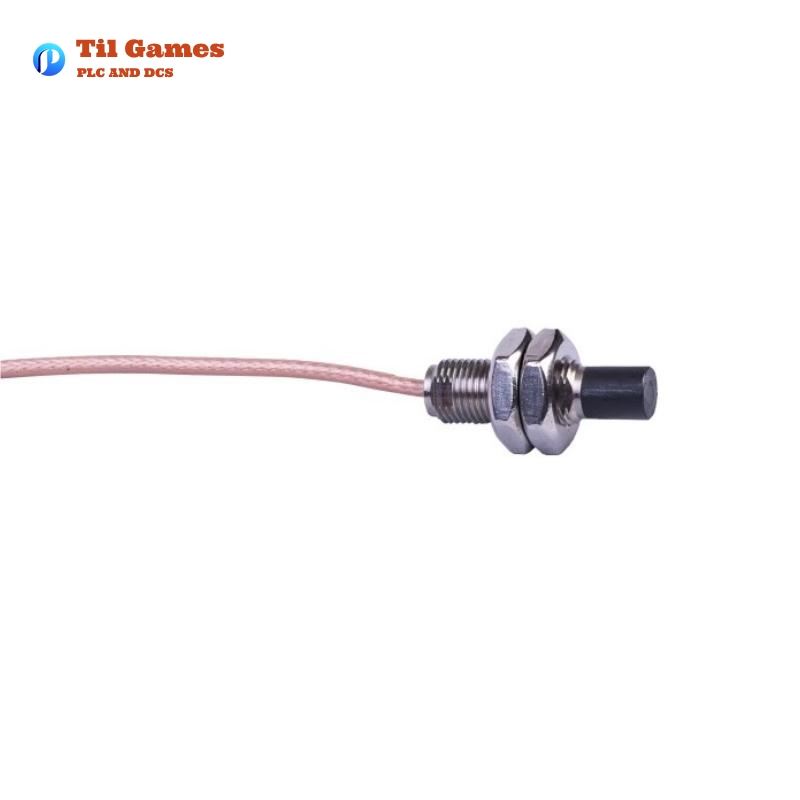

Epro PR6423/012-100 8mm Eddy Current Sensor

Epro PR6423/012-100 8mm Eddy Current Sensor

Manufacturer:Epro

Product Number:PR6423/012-100

Product Type:8mm Eddy Current Sensor

Origin:Germany

Sensor Head Diameter:8 mm

Weight:0.1 kg

Views:7

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-012-100-1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-012-100-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-012-100-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-012-100-4.jpg
Company Information
E-mail sales@xmjzjsgs.com
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Epro PR6423/012-100 8mm Eddy Current Sensor

The Epro PR6423/012-100 8mm Eddy Current Sensor is a high-performance, non-contact sensor primarily used in critical turbomachinery applications. It is designed for use in monitoring systems in industries such as power generation, aerospace, and mechanical engineering. This sensor measures radial and axial shaft dynamic displacement, position, eccentricity, and speed, making it highly valuable for monitoring steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.

Product Specifications

Parameter Value
Linear Measurement Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor (ISF) ISO: 8 V/mm (203.2 mV/mil) ± 5% (0 to 45°C)
Deviation from Best Fit Line (DSL) ± 0.025 mm (± 1 mil) (0 to 45°C)
Minimum Shaft Diameter 25 mm (0.79”)
Target Material Ferromagnetic Steel 42CrMo4 (AISI/SAE 4140)
Protection Class IP66, IEC 60529
Operating Temperature Range Sensor incl. 1m Cable: -35 to +180°C
Weight 0.1 kg
Sensor Tip Material PEEK Polyether Ether Ketone
Cable Material PTFE Polytetrafluoroethylene
Connector Material Brass, nickel-plated
Sensor Tip Diameter 8 mm

Product Features

  • Non-contact measurement: Ideal for applications where physical contact with the moving part would lead to wear or operational issues.

  • High linearity and precision: Offers an excellent linear measurement range and minimal deviation, ensuring high accuracy in demanding environments.

  • Wide operating temperature range: Can operate effectively across a broad temperature spectrum from -35°C to 180°C, suitable for harsh industrial environments.

  • Corrosion-resistant: Constructed with materials such as PEEK and stainless steel, ensuring durability even in corrosive settings.

  • Compact design: The 8mm sensor head diameter ensures easy integration into tight spaces.

Product Advantages

  • Enhanced performance in critical systems: The sensor’s ability to detect small displacements and changes in position makes it crucial for monitoring rotating machinery.

  • Versatility in harsh environments: With IP66 protection and a wide operating temperature range, the sensor performs reliably in severe environmental conditions.

  • Long-lasting durability: Resistant to corrosion and high-temperature damage, it provides a long operational life in challenging environments.

  • Intrinsically safe for hazardous areas: Certified for use in explosive or hazardous areas, meeting global safety standards including ATEX, IEC-Ex, and CSA.

Product Applications

The Epro PR6423/012-100 Eddy Current Sensor is widely used in:

  • Turbomachinery: Monitoring turbine shafts for dynamic displacement and eccentricity.

  • Gearboxes and Compressors: Ensuring precise control and monitoring of rotating machinery.

  • Pumps and Fans: Detecting any displacement issues to prevent system failures.

  • Other rotating machinery: Vital in any application requiring non-contact displacement, position, and speed measurement.

Latest Reports on the Epro PR6423

  • “Enhanced Accuracy in Monitoring Turbomachinery with Epro PR6423 Sensors”

  • “Improved Operational Efficiency through Epro Eddy Current Sensors in Power Generation”

  • “Ensuring Safety in Hazardous Environments with Epro PR6423 Sensor Technology”

Recommended Related Models

Model Target Diameter Case Thread Armored Cable Cable Length Connector Type Weight
PR6423/00 8 mm M10x1 No 25 mm Lemo 100 grams
PR6423/01 8 mm M10x1 Yes 25 mm Lemo 100 grams
PR6423/10 8 mm 3/8”-24 UNF No 25 mm Lemo 100 grams
PR6423/11 8 mm 3/8”-24 UNF Yes 25 mm Lemo 100 grams
PR6423/13 8 mm 3/8”-24 UNF Yes 35 mm Lemo 100 grams
PR6423/01-R 8 mm M10x1 Yes 25 mm Open Cable End 100 grams

Popular Epro Models

Model Measurement Type Shaft Diameter Operating Temp Range Weight Protection Class
PR6423/012-100 Eddy Current Sensor 25 mm (0.79”) -35°C to +180°C 100 grams IP66
PR6423/013-100 Eddy Current Sensor 30 mm (1.18”) -40°C to +180°C 110 grams IP66
PR6423/014-100 Eddy Current Sensor 20 mm (0.79”) -35°C to +150°C 95 grams IP67
PR6423/015-100 Eddy Current Sensor 15 mm (0.59”) -30°C to +180°C 90 grams IP66
PR6423/011-100 Eddy Current Sensor 40 mm (1.57”) -35°C to +200°C 115 grams IP66
PR6423/012-200 Eddy Current Sensor 25 mm (0.79”) -40°C to +180°C 100 grams IP66
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the measurement range of the Epro PR6423 sensor?
A1: The Epro PR6423 sensor offers a linear measurement range of 2 mm (80 mils).

Q2: What is the minimum shaft diameter required for this sensor?
A2: The minimum shaft diameter for the sensor is 25 mm (0.79”).

Q3: Can this sensor operate in hazardous environments?
A3: Yes, the Epro PR6423 sensor is certified for use in hazardous areas, including ATEX, IEC-Ex, and CSA classifications.

Q4: What materials are used in the construction of the sensor?
A4: The sensor tip is made of PEEK Polyether Ether Ketone, the case is stainless steel, and the cable is made from PTFE Polytetrafluoroethylene.

Q5: What is the protection class of the sensor?
A5: The sensor has a protection class of IP66, ensuring it is highly resistant to dust and water.

Q6: What is the weight of the sensor?
A6: The sensor weighs approximately 100 grams (3.53 oz).

Q7: What is the operating temperature range for the sensor?
A7: The sensor can operate within a temperature range of -35°C to +180°C for the sensor and 150°C for the cable.

Q8: How does the Epro PR6423 sensor compare to other eddy current sensors in terms of accuracy?
A8: The Epro PR6423 provides excellent linearity with a deviation of only ± 0.025 mm (± 1 mil), ensuring highly accurate measurements for demanding applications.
