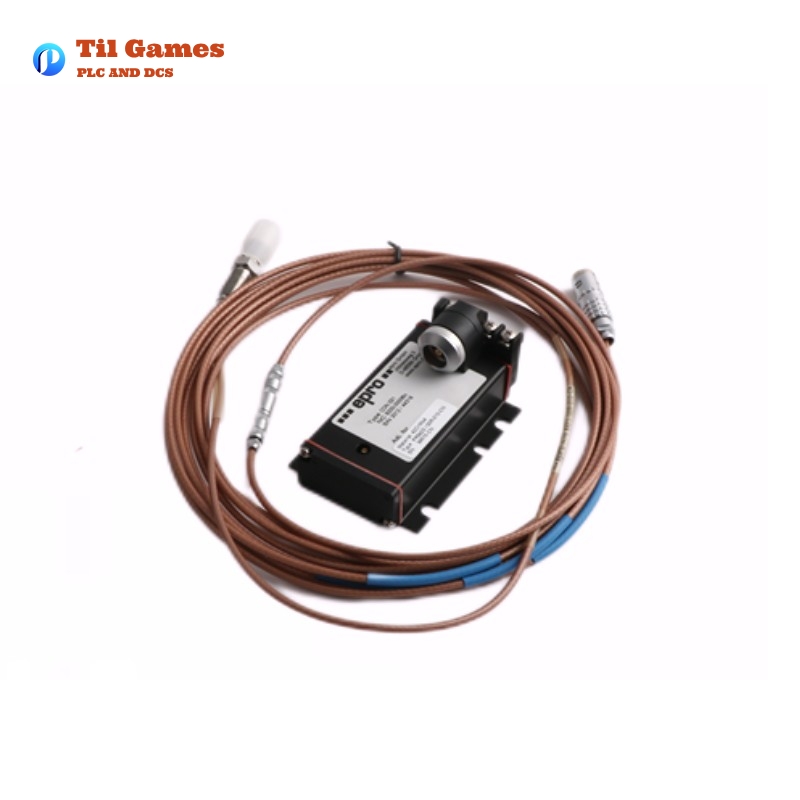

Epro PR6423/010-140 8mm Eddy Current Sensor

Epro PR6423/010-140 8mm Eddy Current Sensor

Manufacturer:Epro

Product Number:PR6423/010-140

Product Type:8mm Eddy Current Sensor

Origin:Germany

Sensor Head Diameter:8 mm

Weight:0.1 kg

Views:3

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-010-140-1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-010-140-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-010-140-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-012-120-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview: Epro PR6423/010-140 8mm Eddy Current Sensor

The Epro PR6423/010-140 8mm Eddy Current Sensor is designed for non-contact measurement of critical turbomachinery applications. This sensor is particularly suited for measuring the dynamic displacement, position, eccentricity, and speed of machinery components such as turbines, compressors, gearboxes, pumps, and fans. It is essential for industries that require high-precision measurements under challenging conditions, including steam, gas, and hydro turbines.


Product Specifications

Parameter Value
Linear Measurement Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor 8 V/mm (203.2 mV/mil) ± 5% (0 to 45°C)
Deviation from Best Fit ± 0.025 mm (± 1 mil) (0 to 45°C)
Minimum Shaft Diameter 25 mm (0.79”)
Target Material Ferromagnetic Steel (42CrMo4, AISI/SAE 4140)
Protection Class IP66, IEC 60529
Operating Temperature -35 to +180°C (-31 to +356°F)
Material (Sensor Tip) PEEK Polyether Ether Ketone
Material (Case) Stainless Steel
Material (Cable) PTFE Polytetrafluoroethylene
Material (Connector) Brass, nickel-plated
Weight (Sensor + 1m Cable) 100 grams (3.53 oz)
Cable Length 1m (standard), customizable

Product Features

  • Non-contact measurement: Provides highly accurate and reliable readings without physical contact with the target, reducing wear and tear.

  • Wide temperature range: Operates in temperatures ranging from -35°C to +180°C, making it suitable for extreme environments.

  • Durable construction: Made from high-quality materials such as stainless steel, PEEK, and PTFE for long-term reliability.

  • Versatile shaft compatibility: Compatible with shafts as small as 25 mm in diameter, typically used for large industrial machinery.

  • IP66 Protection Class: Ensures protection against dust and water, making it ideal for harsh industrial environments.

  • CE and ATEX certified: Complies with global safety standards for hazardous environments, making it suitable for use in explosive atmospheres.


Advantages

  1. Precision: The sensor offers exceptional accuracy in dynamic displacement and position measurement, making it ideal for applications in turbomachinery.

  2. Durability: Resistant to high temperatures and harsh environments, the PR6423 sensor is designed for long-lasting operation in demanding conditions.

  3. Versatility: Suitable for a wide range of industrial applications such as turbines, compressors, and pumps, providing consistent performance across various types of machinery.

  4. Safety Certified: With certifications like ATEX and IEC-Ex, the sensor can be used safely in hazardous areas.

  5. Minimal Maintenance: As a non-contact sensor, it reduces the risk of wear and maintenance needs over time, offering cost savings and reliability.

  6. Easy Integration: The sensor is compatible with a wide range of converters and accessories, allowing for seamless integration into existing monitoring systems.


Applications

The Epro PR6423/010-140 8mm Eddy Current Sensor is used in various critical machinery applications where high precision and reliability are necessary, including:

  • Turbomachinery: For monitoring turbines in power generation plants (steam, gas, and hydro turbines).

  • Compressors: Provides real-time monitoring of compressors in industries like oil and gas.

  • Gearboxes and Pumps: Helps track displacement and speed in heavy industrial machinery.

  • Fans and Motors: Measures the dynamic behavior of fans and motors in ventilation and cooling systems.


Latest News/Reports on the Product

  • “New Developments in Eddy Current Sensors for Turbomachinery Monitoring” – Published in December 2024.

  • “The Future of Non-contact Measurement Systems in Industrial Applications” – A review on the role of non-contact sensors, including the PR6423, in critical applications.


Related Models

Here are six models related to the Epro PR6423/010-140 8mm Eddy Current Sensor:

Model Description Key Parameters
PR6423/00 Standard version, no armored cable M10x1 thread, 25mm cable length
PR6423/01 With armored cable for rugged applications M10x1 thread, 35mm cable length
PR6423/10 Reverse Mount, no armored cable 3/8”-24 UNF thread, 25mm cable
PR6423/11 Reverse Mount with armored cable 3/8”-24 UNF thread, 45mm cable
PR6423/13 Armored cable version for Reverse Mount 3/8”-24 UNF thread, 55mm cable
PR6423/03 Special application model with extended cable M10x1 thread, 65mm cable length

Popular Epro Models

Here are six popular Epro models that share similar functionality or belong to the same product family:

Model Description Key Parameters
PR6421/010-140 Similar to PR6423, designed for high-speed applications 2mm range, 100g weight
PR6425/020-150 High precision for turbomachinery monitoring 3mm range, IP65 protection class
PR6422/010-140 Designed for smaller shafts 1.5mm range, 80g weight
PR6410/010-140 Lower range sensor for high-accuracy displacement measurements 1mm range, 50g weight
PR6408/010-140 Compact design for space-limited applications 2mm range, 70g weight
PR6430/010-140 For use in extreme temperatures and hazardous environments 2mm range, -40°C to +180°C range
FAQ

Frequently Asked Questions (FAQs)

Q1: What is the measuring range of the PR6423 sensor?
A1: The linear measurement range of the PR6423 is 2 mm (80 mils).

Q2: Can the PR6423 be used for measuring eccentricity?
A2: Yes, the sensor is designed to measure radial and axial shaft dynamic displacement, which includes eccentricity.

Q3: What type of materials can be measured with the PR6423 sensor?
A3: The sensor is ideal for ferromagnetic materials like steel, including 42CrMo4 (AISI/SAE 4140).

Q4: What certifications does the PR6423 sensor have?
A4: The sensor is CE certified and has ATEX, IEC-Ex, and CSA hazardous area certifications for use in explosive atmospheres.

Q5: What is the operating temperature range of the sensor?
A5: The sensor operates in temperatures ranging from -35°C to +180°C (-31°F to 356°F).

Q6: What is the weight of the sensor?
A6: The sensor with a 1m cable weighs approximately 100 grams (3.53 oz).

Q7: How is the PR6423 sensor mounted?
A7: The sensor can be mounted with a standard M10x1 or 3/8”-24 UNF thread. Reverse mount options are also available.

Q8: Can the PR6423 sensor be used in hazardous environments?
A8: Yes, the sensor is certified for use in hazardous areas with appropriate certifications such as ATEX and IEC-Ex.
