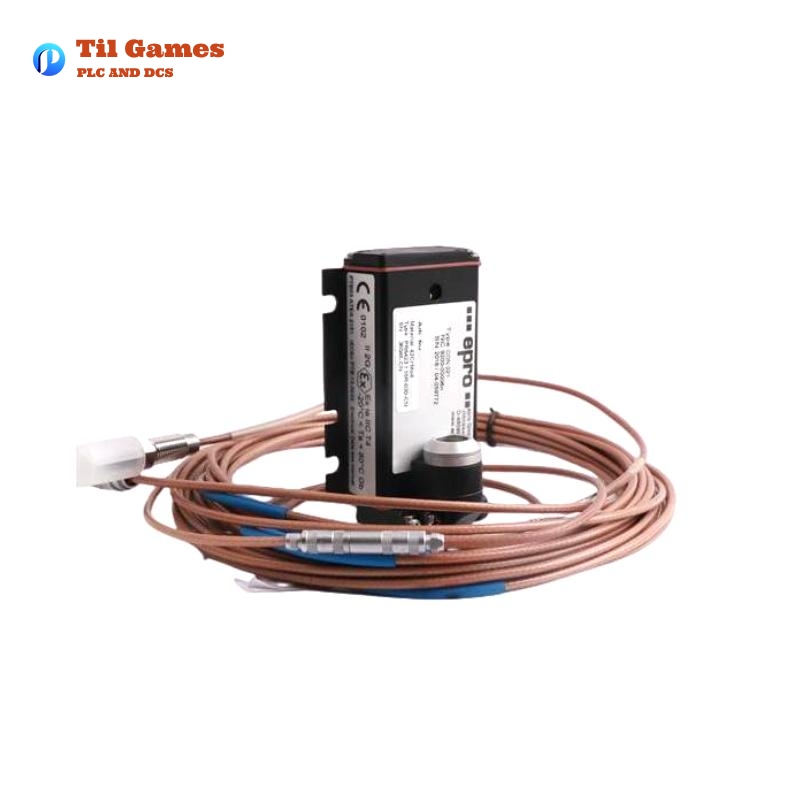

Epro PR6423/010-120 8mm Eddy Current Sensor

Epro PR6423/010-120 8mm Eddy Current Sensor

Manufacturer:Epro

Product Number:PR6423/010-120

Product Type:8mm Eddy Current Sensor

Origin:Germany

Sensor Head Diameter:8 mm

Weight:0.1 kg

Views:4

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-010-120-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-010-120-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-010-120-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/PR6423-010-120-3-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Description:

The Epro PR6423/010-120 is an advanced 8mm Eddy Current Sensor, designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans. This sensor measures dynamic displacement, position, eccentricity, and speed of rotating machinery, providing a non-contact solution for precision measurement.

Key Features:

  • Non-contact measurement: Ideal for sensitive and critical applications where physical contact is undesirable.

  • Wide operating temperature range: Ensures reliability in extreme conditions (-35 to +180°C for the sensor and -35 to +150°C for the cable).

  • Compact design: With an 8mm sensor tip diameter, it’s suitable for tight spaces and precision tasks.

  • Robust construction: The sensor tip is made from durable PEEK, and the casing is stainless steel, ensuring longevity and resistance to harsh environments.

  • CE & ATEX Certified: Meets international safety and compliance standards for hazardous environments.

Product Specifications:

Parameter Value
Linear Measurement Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor 8 V/mm (203.2 mV/mil) ± 5%
Deviation from Best Fit Line ± 0.025 mm (± 1 mil)
Minimum Shaft Diameter 25 mm (0.79”)
Target Material 42CrMo4 (AISI/SAE 4140)
Protection Class IP66, IEC 60529
Operating Temperature Range -35 to +180°C (-31 to 356°F)
Sensor Tip Material PEEK (Polyether Ether Ketone)
Case Material Stainless Steel
Cable Material PTFE (Polytetrafluoroethylene)
Connector Material Brass, Nickel-Plated
Weight (with 1m cable) Approx. 100 grams (3.53 oz)
Cable Diameter 2.8 mm (0.110 in)
Minimum Bending Radius 25 mm (0.984 in)

Advantages:

  • Durability: Constructed from high-quality materials like PEEK and stainless steel, this sensor is designed to withstand harsh industrial environments.

  • Precision: With a deviation of just ± 0.025 mm, this sensor ensures high accuracy for critical machinery monitoring.

  • Flexibility: Available with armored cable options for enhanced protection, and different cable lengths and connector options to suit various setups.

  • Certifications: Compliance with CE, ATEX, IEC-Ex, and CSA ensures the sensor can be used in hazardous areas with safety and reliability.

Applications:

  • Turbomachinery: Ideal for use in steam, gas, and hydro turbines.

  • Compressors and Gearboxes: Used for monitoring the condition and performance of rotating machinery.

  • Pumps and Fans: Suitable for applications where shaft displacement and speed need to be measured with high accuracy.

  • Critical Process Monitoring: Can be used in industries such as oil & gas, power generation, and manufacturing for non-contact measurement in harsh environments.


Related Models:

Here are six related models within the same series or category of sensors:

Model Tip Diameter Case Threads Cable Length Armored Cable
PR6423/00 8 mm M10x1 0.25 m – 10 m No
PR6423/01 8 mm M10x1 0.25 m – 10 m Yes
PR6423/10 8 mm 3/8”-24 UNF 0.25 m – 10 m No
PR6423/11 8 mm 3/8”-24 UNF 0.25 m – 10 m Yes
PR6423/03 8 mm M10x1 0.25 m – 10 m Yes
PR6423/13 8 mm 3/8”-24 UNF 0.25 m – 10 m Yes

Popular Epro Models:

Here are six other popular Epro models that may interest you:

Model Description Tip Diameter Measurement Range Operating Temp Weight
PR6424/030-120 Advanced non-contact displacement sensor 10 mm 5 mm -40 to +180°C 110 grams
PR6422/110-150 High precision shaft vibration sensor 12 mm 3 mm -40 to +200°C 120 grams
PR6425/010-100 Non-contact measurement for rotating machinery 8 mm 2 mm -30 to +150°C 95 grams
PR6421/030-130 Sensor for turbomachinery applications 6 mm 1.5 mm -40 to +180°C 100 grams
PR6426/050-140 Displacement sensor for high-speed turbines 10 mm 4 mm -50 to +200°C 115 grams
PR6423/010-180 Versatile sensor for industrial equipment 8 mm 2 mm -30 to +180°C 105 grams
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the measurement range of the PR6423 sensor?
A1: The PR6423 sensor offers a linear measurement range of 2 mm (80 mils).

Q2: What is the initial air gap of the sensor?
A2: The initial air gap is 0.5 mm (20 mils).

Q3: Can this sensor be used in hazardous environments?
A3: Yes, it is certified for use in hazardous environments, including ATEX and IEC-Ex.

Q4: What materials are used in the construction of the sensor?
A4: The sensor tip is made from PEEK, and the case is constructed from stainless steel.

Q5: What is the operating temperature range of the sensor?
A5: The sensor operates in temperatures ranging from -35 to +180°C (-31 to +356°F).

Q6: Does the sensor come with an armored cable option?
A6: Yes, an armored cable option is available for enhanced protection.

Q7: What is the weight of the sensor with the 1-meter cable?
A7: The sensor weighs approximately 100 grams (3.53 oz) with the 1-meter cable.

Q8: Is the PR6423 suitable for use with all types of machinery?
A8: It is primarily designed for critical turbomachinery applications such as turbines, compressors, and pumps.
