Product Introduction

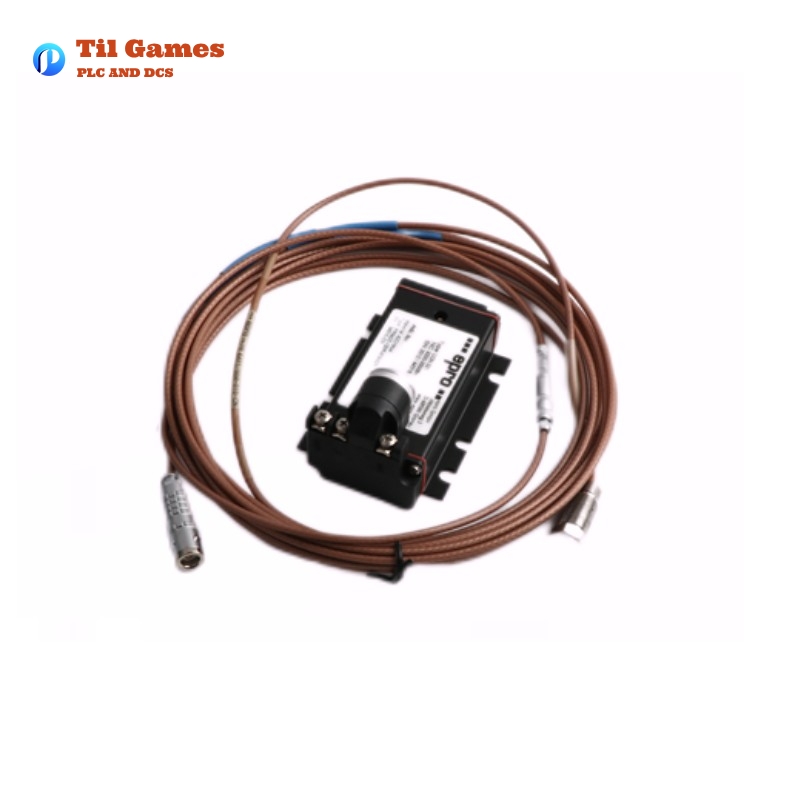

The Epro PR6423/00R-010-CN is a high-precision 8mm eddy current sensor designed for non-contact measurement of dynamic displacement, position, eccentricity, and speed in critical turbomachinery applications. It is widely used in steam turbines, gas turbines, compressors, gearboxes, and other rotating machinery where reliability and accuracy are paramount.
This sensor features a reverse mount configuration (R) with an M10x1 threaded case, standard non-armored cable, and a Lemo connector. Its robust construction ensures durability in harsh industrial environments, including high temperatures and hazardous areas.
Product Specifications
| Parameter | Value |
|---|---|
| Sensor Head Diameter | 8 mm |
| Linear Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ±5% (0-45°C) |
| Deviation from Best Fit Straight Line (DSL) | ±0.025 mm (±1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79″) |
| Target Material | 42CrMo4 (AISI 4140) or equivalent ferromagnetic steel |
| Protection Class | IP66 (IEC 60529) |
| Operating Temperature Range | -35°C to +180°C (sensor & 1m cable) |
| Material | Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE |
| Weight (Sensor + 1m Cable) | 0.1 kg (100 grams) |
| Connector Type | Lemo (male) |
| Cable Length | 5.0 m (standard for PR6423/00R-010-CN) |
| Thread Type | M10x1 (reverse mount) |
Key Features
- Non-contact measurement – Eliminates mechanical wear and ensures long-term reliability.
- High accuracy – ±0.025 mm deviation from the best-fit straight line for precise readings.
- Wide temperature range – Operates in extreme conditions (-35°C to +180°C).
- Robust construction – Stainless steel case and PEEK sensor tip for durability.
- Hazardous area certifications – ATEX, IEC-Ex, and CSA approvals for intrinsic safety (ia).
- Flexible mounting options – Standard and reverse mount configurations available.
- Multiple cable and connector options – Supports armored and non-armored cables with Lemo or open ends.
Product Advantages
- Superior performance in harsh environments – Resistant to dust, moisture, and extreme temperatures.
- Long service life – Minimal maintenance required due to non-contact operation.
- Compatibility with industry standards – Works seamlessly with most turbomachinery monitoring systems.
- Customizable configurations – Various cable lengths, armored options, and connector types available.
- Radiation-resistant variant available (PR6423/xxx-xxx-RAD) – Suitable for nuclear applications.
Applications
- Steam & gas turbines – Shaft displacement and vibration monitoring.
- Compressors & pumps – Radial and axial position measurement.
- Gearboxes & fans – Eccentricity and speed detection.
- Hydro turbines – Thrust bearing monitoring.
- Nuclear power plants (with RAD version) – Radiation-resistant measurements.
Latest News & Updates
“Emerson Expands Epro PR6423 Series with Enhanced Radiation-Resistant Sensor for Nuclear Applications”
- The new PR6423/xxx-xxx-RAD variant offers 80 Mrad radiation resistance, extending sensor lifespan in high-radiation environments.
Recommended Related Models
Same Series (PR6423 Family)
| Model | Key Parameters | Differences from PR6423/00R-010-CN |
|---|---|---|
| PR6423/01 | Armored cable, M10x1 thread | Higher mechanical protection for harsh environments. |
| PR6423/10 | 3/8-24UNF thread, non-armored | Alternative threading for specific mounting needs. |
| PR6423/11 | 3/8-24UNF thread, armored cable | Combines alternative threading with armored protection. |
| PR6423/03* | Reverse mount, armored cable with adapter plug | Enhanced durability in reverse-mount applications. |
| PR6423/13* | 3/8-24UNF, reverse mount, armored | Thread and armored cable flexibility. |
| PR6423/xxx-RAD | Radiation-resistant (80 Mrad) | For nuclear and high-radiation environments. |
Other Popular Epro Models
| Model | Sensor Diameter | Measurement Range | Weight | Key Feature |
|---|---|---|---|---|
| PR6424 | 11 mm | 4 mm | 0.12 kg | Larger range for bigger shafts. |
| PR6425 | 14 mm | 6 mm | 0.15 kg | Heavy-duty industrial use. |
| PR6426 | 18 mm | 10 mm | 0.2 kg | Extra-long measurement range. |
| PR6422 | 5 mm | 1 mm | 0.08 kg | Compact for tight spaces. |
| PR9376 | 8 mm (high-temp) | 2 mm | 0.1 kg | Up to +220°C operation. |
| PR9350 | 8 mm (ATEX) | 2 mm | 0.1 kg | Optimized for explosive atmospheres. |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the difference between standard and reverse mount configurations?
A1: The reverse mount (R) allows the cable to exit from the opposite side, useful for tight installations.
Q2: Can this sensor be used in explosive environments?
A2: Yes, it has ATEX, IEC-Ex, and CSA certifications for intrinsic safety (ia).
Q3: What is the maximum cable length available?
A3: Up to 10 meters, depending on the model variant.
Q4: Is the sensor resistant to radiation?
A4: Only the PR6423/xxx-xxx-RAD variant is radiation-resistant (80 Mrad).
Q5: What is the minimum shaft diameter required?
A5: 25 mm for accurate measurements.
Q6: Can the sensor measure non-ferrous metals?
A6: No, it is optimized for ferromagnetic steel (AISI 4140 equivalent).
Q7: What is the typical lifespan of this sensor?
A7: Decades under normal operating conditions due to non-contact design.
Q8: Does it require calibration?
A8: Factory calibration is included, but periodic checks are recommended for critical applications.
