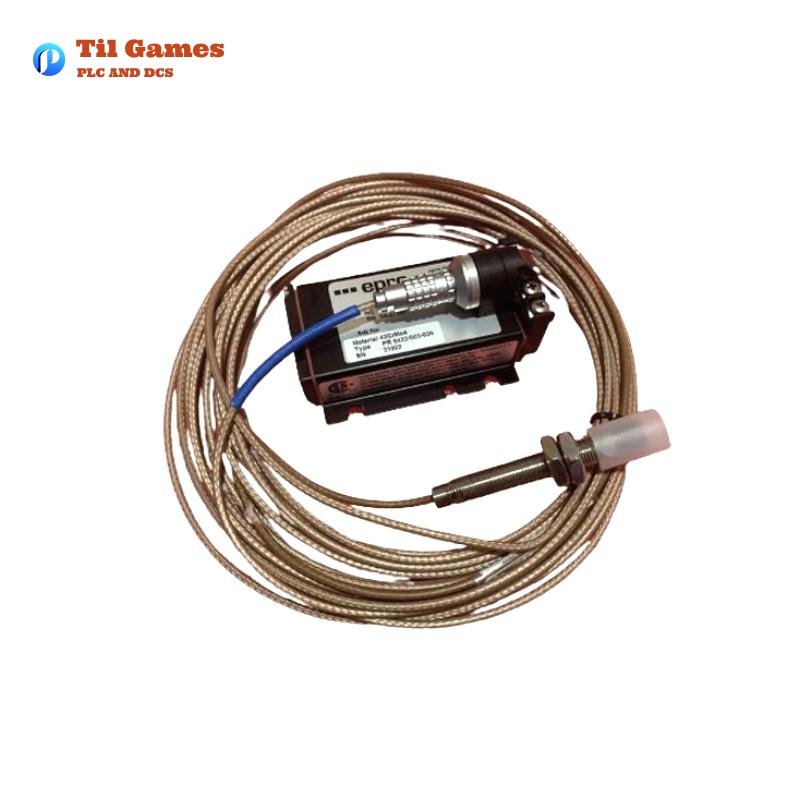

Epro PR6423/00C-030 8mm Eddy Current Sensor

Epro PR6423/00C-030 8mm Eddy Current Sensor

Manufacturer:Epro

Product Number:PR6423/00C-030

Product Type:8mm Eddy Current Sensor

Origin:Germany

Sensor Head Diameter:8 mm

Weight:0.1 kg

Views:20

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/PR6423-00C-030-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/PR6423-00C-030-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/PR6423-00C-030-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/PR6423-00C-030-3.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Epro PR6423/00C-030 is a high-performance 8mm eddy current sensor designed for non-contact measurement of dynamic displacement, position, eccentricity, and speed in critical turbomachinery applications. It is widely used in industries such as power generation, oil & gas, and manufacturing for monitoring steam turbines, gas turbines, compressors, and other rotating equipment.

The sensor offers exceptional accuracy and reliability in harsh environments, featuring robust construction with a stainless steel case and PEEK sensor tip. Its compact design and flexible configuration options make it suitable for both standard and reverse mount installations.


Product Specifications

Parameter Specification
Sensor Head Diameter 8 mm
Linear Measurement Range 2 mm (80 mils)
Initial Air Gap 0.5 mm (20 mils)
Incremental Scale Factor (ISF) 8 V/mm (203.2 mV/mil) ±5%
Deviation from Best Fit Straight Line (DSL) ±0.025 mm (±1 mil)
Minimum Shaft Diameter 25 mm (0.79”)
Target Material 42CrMo4 (AISI/SAE 4140)
Protection Class IP66, IEC 60529
Operating Temperature Range -35°C to +180°C (-31°F to +356°F)
Material Sensor Tip: PEEK, Case: Stainless Steel, Cable: PTFE
Weight 0.1 kg (100 grams)
Cable Length 5.0 m (as per PR6423/00C-030 configuration)
Connector Type Lemo (male) or Open Cable End

Product Features

  • Non-Contact Measurement: Ensures no wear and tear on the sensor or target.
  • High Accuracy: DSL deviation of ±0.025 mm for precise measurements.
  • Robust Construction: Stainless steel case and PEEK tip for durability in harsh environments.
  • Wide Temperature Range: Operates from -35°C to +180°C, suitable for extreme conditions.
  • Flexible Configuration: Options for armored cable, reverse mount, and multiple cable lengths.
  • Certified for Hazardous Areas: Compliant with ATEX, IEC-Ex, and CSA standards.

Product Advantages

  • Reliability: Designed for critical applications with long-term stability.
  • Versatility: Compatible with various shaft materials and diameters.
  • Easy Integration: Standardized connectors and mounting options simplify installation.
  • Low Maintenance: Non-contact design reduces downtime and servicing needs.
  • Global Compliance: Meets international standards for safety and performance.

Product Applications

  • Turbomachinery: Monitoring radial and axial displacement in steam/gas turbines.
  • Compressors: Vibration and position measurement in industrial compressors.
  • Pumps & Fans: Detection of eccentricity and speed variations.
  • Gearboxes: Dynamic displacement monitoring for preventive maintenance.
  • Hydro Turbines: Shaft runout and alignment checks.

Latest News Headline

“Emerson’s PR6423 Eddy Current Sensor Now Certified for Use in Explosive Environments with Enhanced ATEX/IEC-Ex Compliance”


Recommended Related Models

Model No. Key Parameters Description
PR6423/01-000 Armored Cable, M10x1 Thread, 4.0m Cable Standard armored version for rugged environments.
PR6423/10-000 3/8″-24 UNF Thread, No Armor, 4.0m Cable Alternative thread option for specific mounts.
PR6423/11-000 3/8″-24 UNF Thread, Armored Cable, 4.0m Cable Armored version with UNF thread.
PR6423/00R-000 Reverse Mount, M10x1 Thread, 4.0m Cable Reverse configuration for space-constrained installations.
PR6423/xxx-xxx-RAD Radiation-Resistant (80Mrad), Epoxy Tip Special version for nuclear applications.
PR6423/03-000 Extended Cable (8.0m), M10x1 Thread Longer cable for remote installations.

Popular Epro Sensor Models

Model No. Type Key Parameters
PR6424 11mm Eddy Current Larger diameter for heavy-duty applications.
PR6425 14mm Eddy Current High-range displacement measurement.
PR9376 Velocity Sensor For vibration monitoring, 4-20mA output.
PR9268 Accelerometer High-frequency vibration analysis.
PR6600 Proximity Sensor General-purpose displacement measurement.
PR3000 Pressure Sensor For hydraulic and pneumatic systems.
FAQ

FAQ

Q1: What is the minimum shaft diameter for the PR6423/00C-030?
A1: The minimum shaft diameter is 25 mm (0.79”).

Q2: Can the sensor be used in explosive environments?
A2: Yes, it is ATEX/IEC-Ex/CSA certified for hazardous areas (Intrinsic Safety “ia”).

Q3: What is the operating temperature range?
A3: -35°C to +180°C (-31°F to +356°F) for the sensor with 1m cable.

Q4: Is the sensor resistant to radiation?
A4: Only the special RAD version (PR6423/xxx-xxx-RAD) is radiation-resistant (80Mrad).

Q5: What is the weight of the sensor?
A5: Approximately 0.1 kg (100 grams) with 1m cable.

Q6: Can the cable length be customized?
A6: Yes, standard lengths range from 4.0m to 10.0m, with tolerances of 0…+10%.

Q7: What connector types are available?
A7: Lemo (male) or open cable end.

Q8: How do I interpret the model number (e.g., PR6423/00C-030)?
A8: The code indicates thread type (00=M10x1), armored cable (C=optional), and cable length (030=5.0m).
