Product Introduction

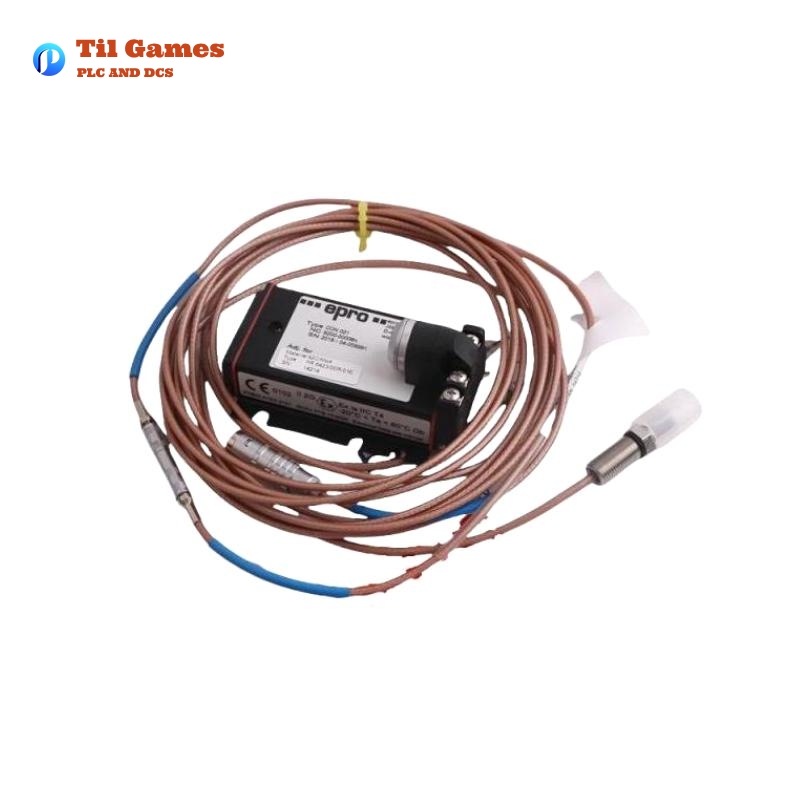

The Epro PR6423/009-010-CN is a high-performance 8mm Eddy Current Sensor designed for precision measurement in rotating machinery. This non-contact sensor is engineered to provide real-time monitoring of shaft displacement, position, eccentricity, and speed. It is widely used in applications involving turbines, compressors, and gearboxes within the power generation, oil & gas, and aerospace industries.
Product Features
-
Non-contact Measurement Technology: Utilizes eddy current technology for measuring radial and axial shaft displacement without physical contact.
-
High Accuracy: Offers excellent precision with an Incremental Scale Factor (ISF) of 8 V/mm and minimal deviation from the best fit straight line.
-
Compact and Robust Design: The 8mm diameter sensor head is made of stainless steel and is housed in a PEEK polyether ether ketone tip, ensuring durability in extreme environments.
-
Wide Temperature Range: Operates efficiently in temperatures from -35°C to +180°C, making it suitable for diverse industrial applications.
-
Environmental Protection: Rated IP66, making the sensor resistant to dust, water, and other harsh environmental factors.
-
Hazardous Area Certification: The sensor has ATEX, IEC-Ex, and CSA certifications for use in hazardous environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg (100 grams) |
| Measurement Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) | 8 V/mm (203.2 mV/mil) ±5% |
| Accuracy (Deviation from DSL) | ±0.025 mm (±1 mil) |
| Minimum Shaft Diameter | 25 mm (0.79”) |
| Target Material | 42CrMo4 (AISI/SAE 4140) (Other materials available on request) |
| Protection Class | IP66, IEC 60529 |
| Operating Temperature Range | -35 to +180°C (-31 to 356°F) |
| Cable & Connector Temperature Range | -35 to +150°C (-31 to 302°F) |
| Material | Sensor Tip: PEEK (Polyether Ether Ketone), Case: Stainless Steel |
| Cable Material | PTFE (Polytetrafluoroethylene) |
| Connector | Brass, nickel-plated |
| Certifications | CE, ATEX, IEC-Ex, CSA |
Product Advantages
-
Precision Measurement: With a high ISF and minimal deviation, the PR6423/009-010-CN offers excellent precision, making it suitable for high-accuracy applications.
-
Durability: The sensor is designed to withstand extreme conditions, from harsh temperatures to rugged environments.
-
Ease of Integration: Compact design and compatibility with various machinery types make it easy to integrate into existing systems.
-
Safety Features: With its certifications for hazardous areas, the sensor is a safe option for industries requiring stringent safety standards.
-
Versatility: Ideal for a wide range of industrial applications, including power generation, manufacturing, and aerospace.
Product Applications
-
Power Plants: Used for monitoring steam, gas, and hydro turbines.
-
Oil & Gas Industry: Applied in the condition monitoring of compressors and pumps.
-
Aerospace: Vibration and displacement monitoring in turbine engines.
-
Manufacturing: Ideal for machinery vibration analysis.
-
Automotive: Used for testing high-speed rotating components.
-
Mining: Condition monitoring of heavy-duty equipment.
Latest News Headlines
-
“Epro Enhances Performance with PR6423/009-010-CN for High-Precision Monitoring”
-
“New Epro Eddy Current Sensors Improve Condition Monitoring for Industrial Equipment”
-
“Epro PR6423 Series Revolutionizes Predictive Maintenance with Accurate Vibration Detection”
-
“PR6423/009-010-CN: A Game Changer for Aerospace Turbine Applications”
-
“Epro’s Latest Sensor Innovations Lead to Safer and More Efficient Industrial Operations”
Related Models in the Same Series
| Model | Sensor Head Diameter | Measurement Range | Armored Cable |
|---|---|---|---|
| PR6423/000-000 | 8 mm | 2 mm | No |
| PR6423/001-000 | 8 mm | 2 mm | Yes |
| PR6423/010-000 | 8 mm | 2 mm | No |
| PR6423/011-000 | 8 mm | 2 mm | Yes |
| PR6423/002-030 | 8 mm | 2 mm | No |
| PR6423/009-010-CN | 8 mm | 2 mm | Yes |
Popular Epro Sensor Models
| Model | Sensor Head Diameter | Measurement Range | Key Feature |
|---|---|---|---|
| PR6423/009-010-CN | 8 mm | 2 mm | High-precision, non-contact |
| PR6424/000-000 | 5 mm | 1.5 mm | Compact design for tight spaces |
| PR6425/010-000 | 10 mm | 3 mm | Suitable for larger machinery |
| PR6426/001-000 | 12 mm | 4 mm | Heavy-duty, high-temperature resistance |
| PR6427/020-000 | 5 mm | 1.5 mm | Ideal for high-vibration environments |
| PR6428/030-000 | 8 mm | 2 mm | Reverse mounting option |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the primary use of the PR6423/009-010-CN sensor?
A1: The sensor is used to monitor shaft displacement and vibration in rotating machinery, ensuring optimal performance and preventing equipment failure.
Q2: Can the sensor be used in high-temperature environments?
A2: Yes, the sensor operates within a wide temperature range of -35°C to +180°C, suitable for both high and low-temperature applications.
Q3: How accurate is the PR6423/009-010-CN sensor?
A3: The sensor offers ±0.025 mm accuracy, with minimal deviation from the best fit straight line, ensuring highly precise measurements.
Q4: Is the PR6423/009-010-CN sensor suitable for hazardous environments?
A4: Yes, it is certified for use in hazardous areas with ATEX, IEC-Ex, and CSA certifications.
Q5: What materials are compatible with this sensor?
A5: The sensor is designed for use with ferromagnetic steel, such as 42CrMo4 (AISI/SAE 4140), though other materials are available upon request.
Q6: Does the sensor require direct contact with the target?
A6: No, the sensor uses non-contact eddy current technology for measuring displacement and vibration.
Q7: What is the maximum measurement range of the PR6423/009-010-CN sensor?
A7: The sensor has a linear measurement range of 2 mm (80 mils), making it suitable for precise shaft displacement measurements.
Q8: How does the sensor contribute to predictive maintenance?
A8: By continuously monitoring displacement and vibration, the sensor helps detect anomalies early, allowing for proactive maintenance and reducing machine downtime.
