Epro PR6423/000-000+CON011 8mm Eddy Current Sensor + Eddy Current Signal Converter

Epro PR6423/000-000+CON011 8mm Eddy Current Sensor + Eddy Current Signal Converter

Manufacturer:Epro

Product Number:PR6423/000-000+CON011

Product Type:Eddy Current Sensor + Eddy Current Signal Converter

Origin:Germany

Sensor Head Diameter:8 mm

Weight:0.7 kg

Views:25

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description

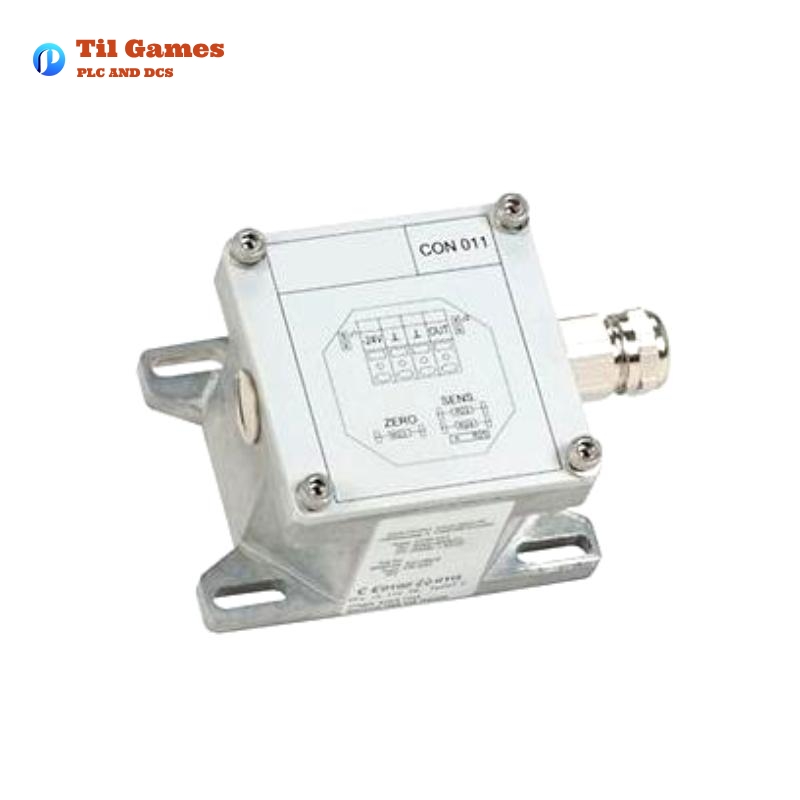

https://www.tilgames.com/wp-content/uploads/2025/03/CON011-1-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/CON011-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/PR6423-40.png
https://www.tilgames.com/wp-content/uploads/2025/03/PR6423-41.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Epro PR6423/000-000 + CON011 is an advanced eddy current sensor system designed for high-precision monitoring of rotating machinery, including turbines, compressors, pumps, and fans. This system consists of the PR6423 eddy current probe and the CON011 signal converter, making it ideal for measuring shaft displacement, position, eccentricity, and speed/key phasor signals.

The PR6423 sensor features a non-contact eddy current principle, ensuring accurate and reliable measurements even in harsh environments. The CON011 converter processes the sensor’s signal, providing a high level of signal integrity and compatibility with industrial monitoring systems.


Technical Specifications

Epro PR6423 Eddy Current Sensor

Parameter Specification
Measurement Principle Eddy Current
Probe Diameter 8 mm
Measuring Range Standard: 2mm, Extended: 3mm or 4mm
Material Stainless Steel
Weight 0.7 kg
Operating Temperature -35°C to +180°C
Sensitivity 7.87mV/μm
Output Signal Analog
Cable Length Various lengths available
Protection Class IP65

Epro CON011 Eddy Current Signal Converter

Parameter Specification
Input Sensor Types PR6422, PR6423, PR6424, PR6425, PR6426
Frequency Response 0 to 20 kHz (-3 dB)
Rise Time < 15 μs
Output Voltage -4V to -20V / -2V to -18V
Supply Voltage -23V to -32V
Weight 0.6 kg
Housing Material GD-ALSi9Cu3
Operating Temperature -30°C to 100°C
Protection Class IP65
Mounting 4 Screws (M5x20)

Applications

The Epro PR6423 + CON011 system is widely used in industrial applications requiring high-precision vibration monitoring and shaft position detection. Typical applications include:

  1. Turbines – Steam, gas, and hydro turbines for power generation.
  2. Compressors – Used in refineries, chemical plants, and gas processing.
  3. Pumps – Monitoring critical pump systems in industrial facilities.
  4. Fans and Blowers – Ensuring balanced operation in HVAC and industrial air handling.
  5. Generators – Detecting rotor eccentricity and position.
  6. Large Motors – Monitoring bearing wear and shaft movement.
  7. Gearboxes – Detecting misalignment and vibration.
  8. Hydraulic Systems – Monitoring fluid machinery for early fault detection.

Product Advantages

  1. High Precision – Accurate measurement of shaft displacement with a sensitivity of 7.87mV/μm.
  2. Non-Contact Measurement – Minimizes wear and maintenance requirements.
  3. Wide Operating Range – Suitable for temperatures from -35°C to +180°C.
  4. Robust Construction – Stainless steel housing and IP65 protection for industrial environments.
  5. Fast Response Time – Rise time of <15 μs for high-speed machinery monitoring.
  6. ATEX Certified – Intrinsically safe for hazardous environments.
  7. Extended Measuring Ranges – Configurable with different converters (CON011 series).
  8. Seamless Integration – Compatible with various industrial monitoring systems.
  9. Reliable Performance – Designed for continuous operation in critical applications.
  10. Global Standards Compliance – Meets CE, IEC-Ex, ATEX, and CSA standards.

Latest Reports & News

  1. “Epro PR6423: Advancing Eddy Current Sensing for Industrial Applications” – 2024 Industry Review
  2. “Enhanced Turbomachinery Monitoring with the PR6423 Sensor System” – Journal of Vibration Analysis
  3. “New Developments in Non-Contact Displacement Sensing” – Sensor Technology Magazine
  4. “Epro PR6423 and CON011: Improving Reliability in Power Plants” – EnergyTech News
  5. “Vibration Monitoring Trends in 2024: The Role of Eddy Current Sensors” – Automation Insights

Recommended Models (Same Series or Related)

Model Description
PR6422 Eddy Current Sensor with 5mm probe
PR6423/000-001 Alternative PR6423 model with extended cable length
PR6424 Eddy Current Sensor with 10mm probe
PR6425 High-accuracy sensor for critical machinery
PR6426 Large-range eddy current sensor (12mm)
CON011/912-015 Extended range converter for PR6422
CON011/913-030 Extended range converter for PR6423
CON011/914-080 Extended range converter for PR6424
CON011/915-060 Extended range converter for PR6425
CON011/916-200 Extended range converter for PR6426

Top 10 Popular Epro Models

Model Description
PR6423/000-000 Standard 8mm eddy current sensor
PR6422/10R-030 Compact eddy current probe for tight spaces
PR9376/010-011 High-frequency vibration sensor
PR9268/300-001 Temperature and vibration monitoring sensor
MMS6210 Machinery protection system module
MMS6350 Advanced signal monitoring module
CON021 Alternative signal converter for PR64XX series
PR9238/00 Displacement and velocity sensor
PR9377/010-001 Multi-parameter vibration sensor
PR6425/10R-040 High-accuracy eddy current sensor
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the measuring range of the PR6423 sensor?

A1: The PR6423 has a standard measuring range of 2mm, but with the appropriate CON011 converter, it can be extended to 3mm or 4mm.

Q2: What industries commonly use this sensor?

A2: It is widely used in power generation, oil & gas, petrochemical, and heavy machinery industries.

Q3: What is the output signal of the PR6423 sensor?

A3: The PR6423 provides an analog output signal, which is processed by the CON011 signal converter.

Q4: Can the sensor be used in hazardous environments?

A4: Yes, the PR6423 + CON011 system is ATEX and IEC-Ex certified for use in explosive environments.

Q5: What is the response time of the system?

A5: The system has an ultra-fast response time of less than 15 microseconds.

Q6: What is the weight of the PR6423 sensor?

A6: The PR6423 sensor weighs 0.7 kg.

Q7: What is the protection rating of the PR6423 and CON011?

A7: Both components have an IP65 protection rating, making them suitable for harsh environments.

Q8: What is the typical cable length for the PR6423 sensor?

A8: Standard cables are 5m to 10m, but other lengths are available upon request.

Q9: Can the PR6423 work with other converters?

A9: It is primarily designed for CON011, but it can be used with other compatible converters from Epro.

Q10: What is the supply voltage requirement for the CON011 converter?

A10: The CON011 requires a -23V to -32V DC power supply.
