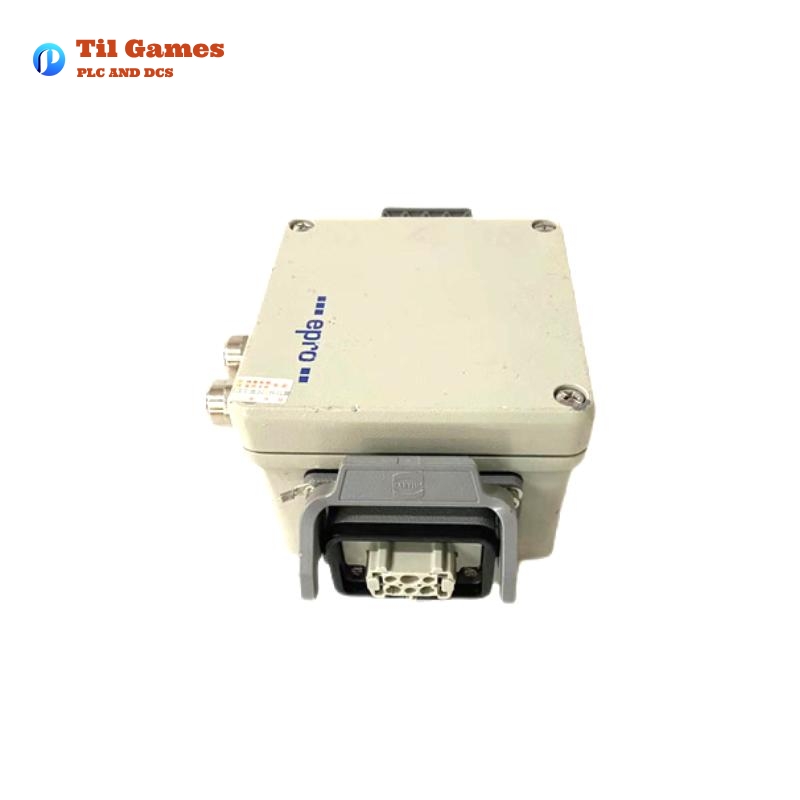

Epro MMS3120/022-100 Dual Channel Bearing Vibration Transmitter

Epro MMS3120/022-100 Dual Channel Bearing Vibration Transmitter

Manufacturer:EPRO

Product Number:MMS3120/022-100

Product Type:Dual Channel Bearing Vibration Transmitter

Origin:Germany

Dimensions:127.5 x 125.75 x 80 mm

Weight:1.3 kg

Views:31

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/MMS3120-9.png
https://www.tilgames.com/wp-content/uploads/2025/03/MMS3120-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/MMS3120-11.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/MMS3120-12-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Parameters

Parameter Details
Measurement Type Absolute bearing vibrations
Input Type Electrodynamic vibration transducers (PR 9268 series)
Output Signal 0/4…20 mA current outputs (one per channel or max of both)
Measuring Range 0…5/10/25/50/100 mm/s RMS (vibration velocity) or 0…25/50/100/125/250/500 µm peak-to-peak (vibration amplitude)
Frequency Range 5/10…1000 Hz
Power Supply 18-36V DC, redundant 24V DC inputs
Power Consumption Approx. 2.5W
Housing Aluminium, non-corroding
Protection Class IP65 (DIN 40050, IEC 144)
Operating Temperature -20°C to +65°C
Storage Temperature -30°C to +90°C
Relative Humidity 0-95% (non-condensing)
Shock Resistance 20g (2ms)
Vibration Resistance 5g (60 Hz)
Mounting Preferably with cable glands facing downward
Dimensions 127.5 x 125.75 x 80 mm
Weight 1.3 kg (Net), 1.5 kg (Gross)
Compliance CE-certified, EMC-tested (EN 55011 & EN 50082-2)

Product Description

The Epro MMS3120/022-100 is a dual-channel vibration transmitter that converts the signals from electrodynamic vibration transducers into independent output signals proportional to vibration velocity or amplitude. It features self-diagnostic functions, redundant power supply, and configurable settings using DIP switches and jumpers.

It is suitable for use in large-scale industrial systems with programmable logic controllers (PLCs) and host computers, commonly found in power plants, refineries, and chemical plants. The transmitter provides limit supervision and ensures continuous monitoring of machine health.


Applications

The MMS3120/022-100 is primarily used for the monitoring and protection of rotating machinery, including:

  • Turbomachinery (Steam and gas turbines)
  • Compressors
  • Fans & Blowers
  • Gearboxes
  • Pumps

It is especially suited for industries that require continuous machine monitoring, such as power generation, oil & gas, chemical processing, and heavy manufacturing.


Product Advantages

  • Dual-Channel Measurement – Monitors two independent vibration signals simultaneously.
  • Highly Configurable – DIP switches allow flexible measurement settings.
  • Industrial-Grade Durability – IP65-rated aluminium housing for harsh environments.
  • Self-Test & Diagnostics – Detects faults in the sensor and electronic module.
  • High Accuracy & Stability – Linearity error of 0.25%, stable over time and temperature.
  • Redundant Power Supply – Ensures reliability in industrial environments.
  • Seamless Integration – Works with Epro PR 9268 vibration sensors and other standard electrodynamic transducers.
  • Alarm & Limit Supervision – Configurable alerts for preventive maintenance.

Latest News and Updates

  • “Epro Expands MMS3000 Series: Enhanced Vibration Monitoring for Industrial Machinery”
  • “MMS3120: The Future of Predictive Maintenance in Power Plants”
  • “Epro’s Next-Gen Transmitters: Improving Rotating Machinery Health Monitoring”

Recommended Related Models

Model Description
MMS3110 Single-channel bearing vibration transmitter
MMS3120 Dual-channel vibration transmitter (similar to requested model)
MMS3210 Vibration and displacement transmitter
MMS3220 Dual-channel transmitter for vibration and displacement
MMS3410 Axial displacement monitoring transmitter
MMS3520 Multi-channel machine protection transmitter
PR 9268/20 Standard electrodynamic vibration transducer
PR 9268/30 High-sensitivity electrodynamic vibration transducer
PR 9268/60 Industrial-grade vibration transducer for harsh environments
PR 9268/70 Advanced vibration sensor for critical applications

Top 10 Popular Epro Models

Model Description
MMS6110 Advanced machine protection system
MMS6120 Dual-channel machinery health monitor
MMS6350 Turbomachinery protection system
MMS6410 Comprehensive machine diagnostic system
MMS6500 Modular protection system for rotating equipment
PR 6423 Proximity sensor for displacement measurement
PR 6424 High-precision eddy current proximity sensor
PR 6425 Compact eddy current probe
PR 6426 High-temperature displacement sensor
PR 9268 Standard electrodynamic vibration transducer

FAQ

FAQ (Frequently Asked Questions)

Q1: What is the primary function of the MMS3120?

A: It is a dual-channel bearing vibration transmitter designed to measure and monitor absolute bearing vibrations in rotating machinery.

Q2: Which sensors are compatible with the MMS3120?

A: It supports Epro PR 9268 series electrodynamic vibration transducers.

Q3: Can this device operate in hazardous environments?

A: No, the MMS3120 is not certified for hazardous areas.

Q4: What are the output signal types?

A: It provides 0/4…20 mA current outputs, with one per channel or a combined max value.

Q5: How does the transmitter ensure reliability?

A: It includes redundant power inputs, self-diagnostics, and limit supervision.

Q6: What is the power supply requirement?

A: It operates on 18-36V DC, with a typical power consumption of 2.5W.

Q7: What are the key advantages of using MMS3120?

A: Dual-channel measurement, high stability, IP65 protection, self-test functions, and configurable alarm limits.

Q8: Can the transmitter be mounted in any orientation?

A: It is recommended to be mounted with cable glands facing downward for optimal performance.

Q9: What industries commonly use the MMS3120?

A: Power plants, refineries, chemical plants, and other industries relying on turbomachinery and rotating equipment.

Q10: How is the MMS3120 configured?

A: Configuration is done via DIP switches and jumpers, allowing flexible setting adjustments.
