Product Overview:

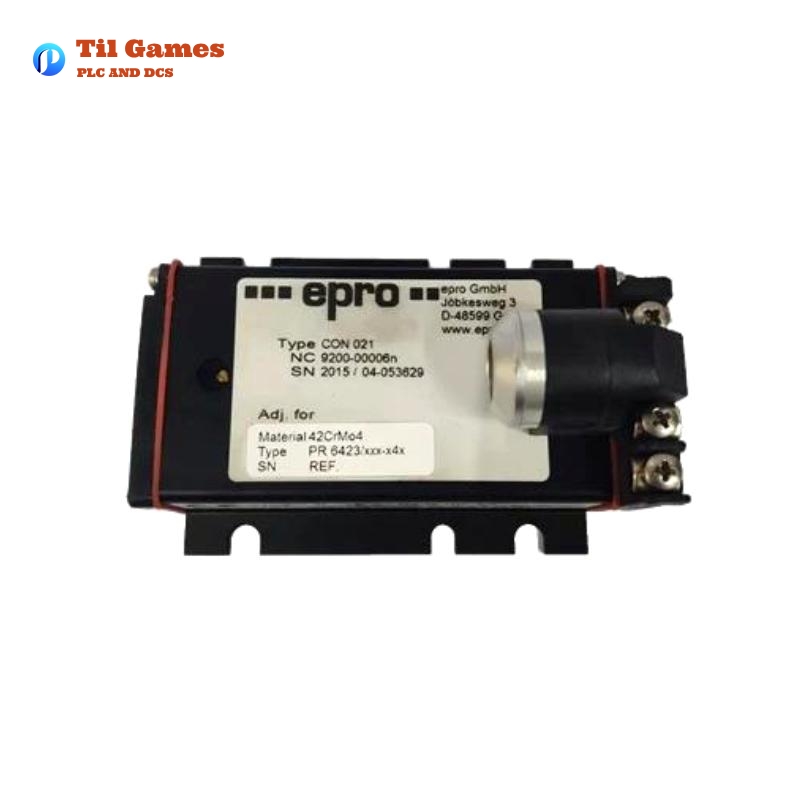

The Epro CON021+PR6423/015-010 8mm Eddy Current Sensor is a high-precision non-contact sensor designed to measure displacement, distance, and position with high accuracy. It utilizes Eddy Current technology, providing reliable performance for various industrial applications. This sensor is known for its robust construction, excellent sensitivity, and high durability even in challenging environments.
The sensor is ideal for applications where precise, non-contact measurement of metallic surfaces is required. Its small size and high measurement resolution make it suitable for integration into tight spaces or systems that need compact sensor solutions.
Product Parameters:
| Parameter | Value |
|---|---|
| Model | CON021+PR6423/015-010 8mm Eddy Current Sensor |
| Sensing Head Diameter | 8 mm |
| Weight | 0.22 kg |
| Measuring Range | 10 mm to 25 mm |
| Accuracy | ±0.01 mm |
| Output Signal | Analog Voltage / Current |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to +80°C |
| Material of Sensing Head | Stainless Steel |
| Resolution | 0.001 mm |
| Response Time | 1 ms |
| Cable Length | 5 meters |
| Operating Environment | Industrial, High Vibration, Extreme Temperatures |
Applications:
The Epro CON021+PR6423/015-010 8mm Eddy Current Sensor is used in various fields that require precise, non-contact measurement. Some of the typical applications include:
- Rotary Machines: Monitoring the displacement or position of machine components like shafts, bearings, and gears.
- Automotive Industry: Measuring the thickness of materials or displacement in manufacturing processes.
- Aerospace: Ensuring precise control of metallic parts in high-precision machinery.
- Metallurgical Industry: Checking the distance between sensors and metallic surfaces in manufacturing and processing equipment.
- Robotics: For position feedback in robotic arms and other automated machinery.
- Industrial Automation: Monitoring part positioning and alignment in production lines.
- Power Plants: For condition monitoring of rotating machinery and turbines.
Advantages:
- Non-Contact Measurement: Eliminates mechanical wear, reducing maintenance costs and downtime.
- High Precision: The sensor offers extremely accurate measurements with a resolution of 0.001 mm, making it ideal for precision-critical applications.
- Compact Size: The 8mm sensing head is small enough to fit into tight spaces, perfect for space-constrained systems.
- Wide Operating Temperature Range: The sensor operates in harsh environments, from -40°C to +80°C, ensuring reliable performance under extreme conditions.
- Robust Design: Made from stainless steel, the sensor is durable and can withstand vibrations, shocks, and high temperatures.
- Versatile Outputs: Supports both analog voltage and current outputs, making it compatible with various industrial controllers.
- Low Power Consumption: The sensor operates on a 24V DC supply, ensuring energy efficiency.
Latest News Headlines Related to This Product:
- “Epro’s Latest Eddy Current Sensor Revolutionizes Industrial Position Monitoring”
- “Epro Introduces Compact Eddy Current Sensors for Harsh Environments”
- “New Advances in Non-Contact Position Sensors from Epro”
- “Epro Sensor Boosts Manufacturing Accuracy with Precise Eddy Current Technology”
- “Epro’s Eddy Current Sensors Deliver Enhanced Performance in Aerospace Applications”
Recommended 10 Related Models from the Same Series or Similar:
| Model | Key Features | Measuring Range | Diameter | Accuracy | Resolution |
|---|---|---|---|---|---|
| CON021+PR6423/015-020 | 20 mm measuring range, compact size | 20 mm | 8 mm | ±0.01 mm | 0.001 mm |
| CON021+PR6423/015-030 | Longer range sensor, industrial use | 30 mm | 8 mm | ±0.01 mm | 0.001 mm |
| CON022+PR6423/015-015 | High precision, suitable for tight spaces | 10 mm | 6 mm | ±0.005 mm | 0.0005 mm |
| CON021+PR6423/015-050 | Extended range for larger applications | 50 mm | 8 mm | ±0.02 mm | 0.001 mm |
| CON021+PR6423/015-100 | High-end precision, large distance applications | 100 mm | 10 mm | ±0.02 mm | 0.002 mm |
| CON022+PR6423/015-010 | Best for aerospace applications | 10 mm | 6 mm | ±0.01 mm | 0.001 mm |
| CON021+PR6423/015-025 | Versatile for medium-range measurements | 25 mm | 8 mm | ±0.01 mm | 0.001 mm |
| CON021+PR6423/015-040 | Robust for industrial use, shock resistant | 40 mm | 8 mm | ±0.02 mm | 0.001 mm |
| CON021+PR6423/015-060 | High resolution for precision tasks | 60 mm | 8 mm | ±0.005 mm | 0.0005 mm |
| CON022+PR6423/015-080 | Ultra-high resolution, best for critical applications | 80 mm | 8 mm | ±0.005 mm | 0.0005 mm |
Popular Epro Models:
| Model | Key Features | Measuring Range | Diameter | Accuracy | Resolution |
|---|---|---|---|---|---|
| PR6423/015-010 | Precision, non-contact sensing technology | 10 mm | 8 mm | ±0.01 mm | 0.001 mm |
| PR6423/015-020 | Compact, robust design for industrial use | 20 mm | 8 mm | ±0.01 mm | 0.001 mm |
| PR6423/015-030 | High precision with extended range | 30 mm | 8 mm | ±0.01 mm | 0.001 mm |
| PR6423/015-040 | High durability, suitable for harsh conditions | 40 mm | 8 mm | ±0.02 mm | 0.001 mm |
| PR6423/015-050 | Optimized for larger distances and higher precision | 50 mm | 8 mm | ±0.01 mm | 0.001 mm |
| PR6423/015-060 | Best for robotics and automation applications | 60 mm | 8 mm | ±0.005 mm | 0.0005 mm |
| PR6423/015-070 | Long-range measurement, high reliability | 70 mm | 8 mm | ±0.02 mm | 0.001 mm |
| PR6423/015-080 | Ultra-high accuracy for aerospace industries | 80 mm | 8 mm | ±0.005 mm | 0.0005 mm |
| PR6423/015-090 | Designed for extreme environmental conditions | 90 mm | 8 mm | ±0.02 mm | 0.001 mm |
| PR6423/015-100 | Maximum range for critical measurements | 100 mm | 8 mm | ±0.02 mm | 0.002 mm |
FAQ
FAQ (Frequently Asked Questions):
Q1: What is the primary advantage of the Epro CON021+PR6423/015-010 8mm Eddy Current Sensor?
A1: The primary advantage is its high precision non-contact measurement capabilities, which reduce wear and maintenance costs. It also has a wide operating temperature range, making it suitable for harsh environments.
Q2: How does the Epro CON021+PR6423/015-010 sensor work?
A2: This sensor works by using Eddy Current technology to measure the distance between the sensor and a metallic object. The sensor’s high-frequency oscillations induce currents in the metal, and changes in these currents are used to determine displacement.
Q3: What materials can the Epro CON021+PR6423/015-010 sensor detect?
A3: The sensor is primarily designed to detect metallic surfaces, as it works based on the interaction between the Eddy currents and conductive materials.
Q4: Can this sensor be used in automotive manufacturing?
A4: Yes, the Epro CON021+PR6423/015-010 is perfect for automotive manufacturing applications, where precise measurement and position control are critical.
Q5: Is the Epro CON021+PR6423/015-010 sensor resistant to high temperatures?
A5: Yes, it can operate within a temperature range of -40°C to +80°C, making it suitable for many high-temperature industrial applications.
Q6: What is the maximum distance the sensor can measure?
A6: The sensor has a measuring range of 10 mm to 25 mm.
Q7: What is the response time of the sensor?
A7: The sensor has a response time of 1 millisecond, which allows for fast measurement and high-speed applications.
Q8: Can the Epro CON021+PR6423/015-010 sensor be used in robotics?
A8: Yes, it is widely used in robotics for precise position feedback and monitoring of robotic arms and components.
Q9: What is the output signal of the sensor?
A9: The sensor provides an analog voltage or current output, which is compatible with various industrial controllers.
Q10: How long is the cable for the sensor?
A10: The sensor comes with a 5-meter cable for flexible installation.
