Technical Specifications
| Parameter | Specification |
|---|---|

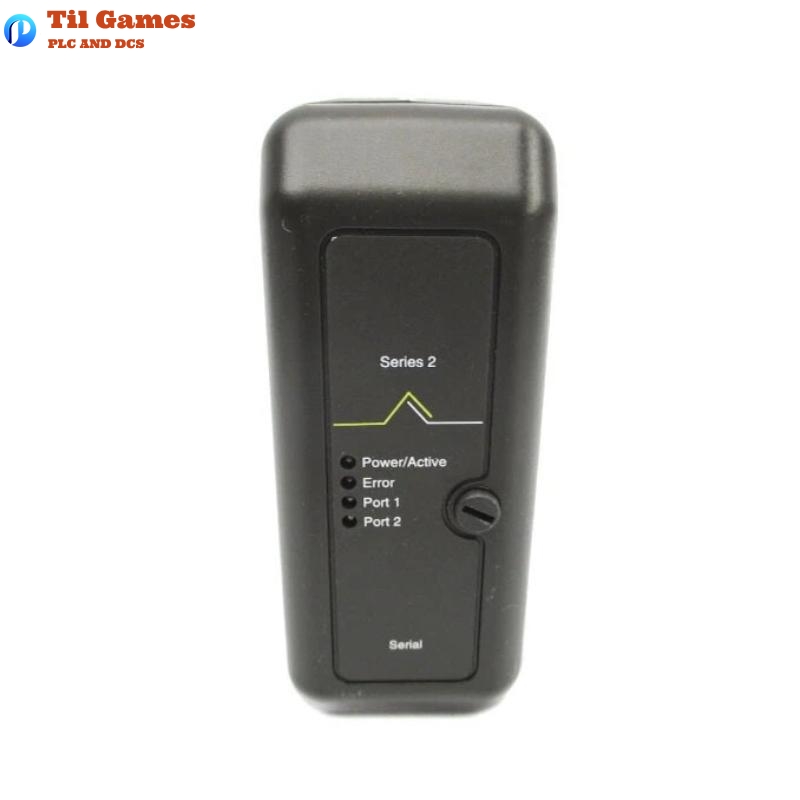

| Model Number | KJ3241X1-BA1 |
| Product Type | Serial Interface Card |
| Part Number | 12P2506X062 |
| Power Supply (Local Bus) | 12 VDC @ 300 mA |
| Operating Temperature | -40°C to +70°C |
| Shock Resistance | 10 g, ½ sinewave, 11 milliseconds |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Relative Humidity | 5% to 95%, non-condensing |
| Environmental Standards | ISA-S71.04-1985 G3 for airborne contaminants |
| Enclosure Protection | IP20 |
| Terminal Block Key Position | D4 |
| Approvals | ATEX: FM12ATEX0090U IECEx: FMG 12.0035U |
| Hazardous Area Rating | II 3G Ex nA nC IIC Gc |
| Dimensions (W x H x D) | 107 mm x 41 mm x 105 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the power requirement of the KJ3241X1-BA1?
A1: The module requires 12 VDC at 300 mA from the local bus.
Q2: Can this card be hot-swapped during system operation?
A2: No, insertion or removal must only be done in non-hazardous areas and with the system powered down.
Q3: What environmental conditions is this card designed for?
A3: It is rated for -40°C to +70°C and 5%–95% non-condensing humidity.
Q4: Does the card require calibration?
A4: No calibration is needed; the unit is factory-calibrated and not user-serviceable.
Q5: Is the terminal block keyed for this module?
A5: Yes, it uses a rotary keying system. The block must be keyed to match the module (position D4).
Q6: What type of vibration and shock resistance does it support?
A6: It can withstand 10 g shock and vibrations up to 0.7 g across a range of 2–150 Hz.
Q7: What certifications does it have for hazardous environments?
A7: It is ATEX (FM12ATEX0090U) and IECEx (FMG 12.0035U) certified for Zone 2 use.
Q8: Can this unit be serviced by the user?
A8: No, it contains no user-serviceable parts and should not be disassembled.
