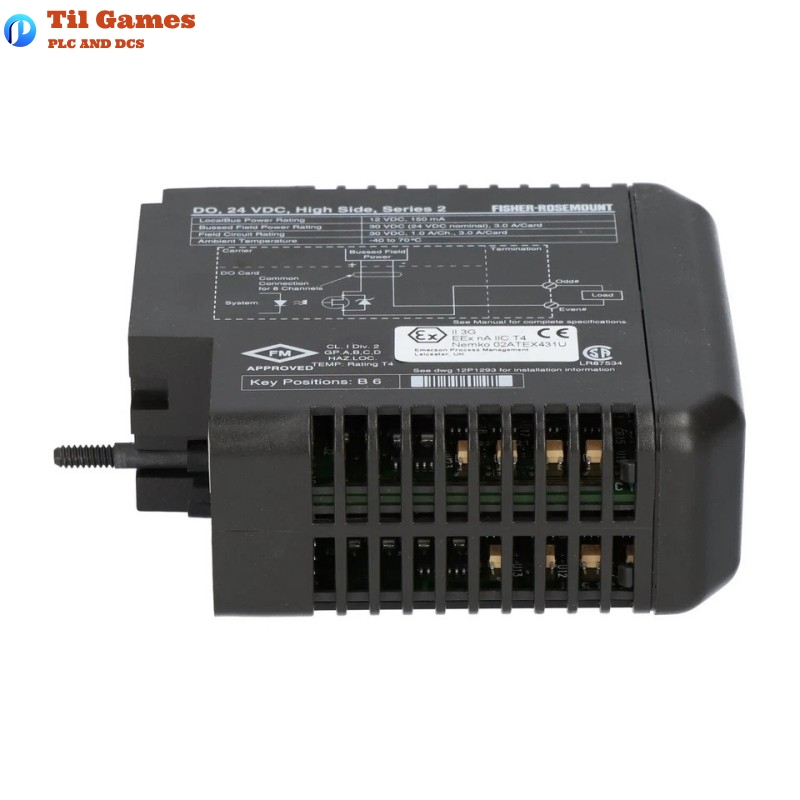

Product Specifications (Emerson VE4002S1T2B2 KJ3202X1-BA1 DeltaV Digital Output Module)
| Item | Specification |
|---|---|
| Model | VE4002S1T2B2 |
| Input Voltage | 24V DC |
| Output Current | 1.0 A (per channel continuous) |
| Output Voltage Range | 2V DC to 60V DC |
| Maximum Power per Channel | 3.0 A |
| Electrical Isolation | Optically isolated per channel |
| Local Bus Current | 12 VDC, 150 mA |
| Operating Temperature Range | -40°C to 70°C |
| Vibration | 1mm peak-to-peak 5 to 16Hz, 0.5g 16 to 150Hz |
| Shock | 10g ½-sine wave for 11ms |
| Humidity | 5% to 95% Non-condensing |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.2 kg |
FAQ
FAQ
1. What applications is the VE4002S1T2B2 suitable for?
The VE4002S1T2B2 is used in the DeltaV Distributed Control System, particularly for digital output in automation processes, widely applied in industrial control, automation equipment, and process monitoring.
2. Does the module support redundancy?
Yes, the VE4002S1T2B2 supports redundant configurations. It can be installed on a redundant terminal block, ensuring high availability and system reliability.
3. Can the module be replaced while powered on?
Yes, the VE4002S1T2B2 supports hot swapping, but field power must be disconnected, and only one module can be replaced at a time.
4. What is the operating temperature range for the VE4002S1T2B2?
The operating temperature range for this module is -40°C to 70°C.
5. Does the module have any protection ratings?
Yes, the VE4002S1T2B2 has an IP20 protection rating, suitable for most industrial environments.
6. What are the installation requirements for the module?
The module must be installed in accordance with relevant electrical standards and safety regulations, especially when used in hazardous areas, following the provided installation manuals.
7. Does the module require calibration?
No, the VE4002S1T2B2 does not require calibration by the user.
8. Is it necessary to power off the system before replacing the module?
Yes, unless using a certified power supply, field power must be removed before replacing the module.
