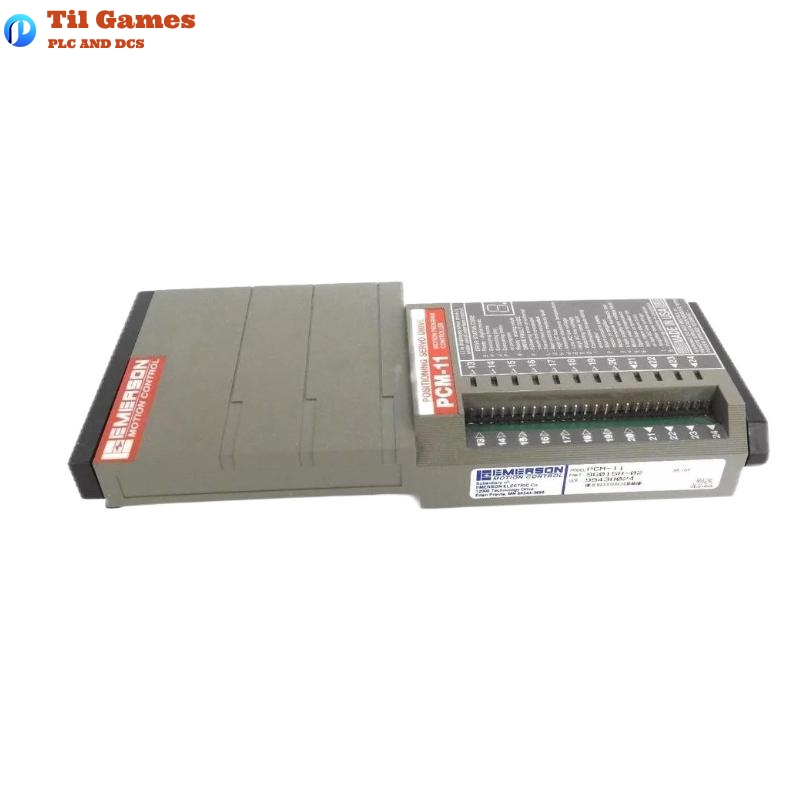

Emerson PCM-11 Motion Program Controller Technical Specifications
| Technical Specification | Details |
|---|---|
| Product Name | Emerson PCM-11 Motion Program Controller |
| I/O Interface | 8 optically isolated inputs, 4 optically isolated outputs |
| Memory | Stores up to 256 indexes, 100 programs, and 1024 steps |
| Programming Software | Programmed using PCX software |
| Program Types | Incremental, absolute, feed to sensor, registration, rotary clockwise, rotary counterclockwise |
| I/O Functions | 65 user-assignable I/O functions |
| Program Capacity | Up to 100 programs, with up to 30 steps per program, totaling 1024 steps |
| Program Storage | Non-volatile memory storage |
| Dimensions | 440 x 230 x 110 mm |
| Weight | 0.648 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What are the main features of the PCM-11 Motion Program Controller?
A1: The PCM-11 enhances the FX positioning servo drive from a simple indexing drive to a flexible and powerful motion programmer. It supports 256 indexes, 100 programs, and up to 1024 steps in complex programs.
Q2: How is the PCM-11 programmed?
A2: PCM-11 is programmed using the EMERSON Motion Control PCX software, which provides an intuitive interface to set motion parameters and write control programs.
Q3: How does PCM-11 expand I/O capacity?
A3: PCM-11 expands the I/O capacity of the FX drive with 8 optically isolated inputs and 4 optically isolated outputs, and supports 65 user-assignable I/O functions.
Q4: How many programs can PCM-11 store?
A4: PCM-11 can store up to 100 programs, each containing up to 30 steps, for a total of 1024 steps.
Q5: What types of motion programs can PCM-11 handle?
A5: PCM-11 supports incremental, absolute, feed to sensor, registration, rotary clockwise, rotary counterclockwise, and other motion program types.
Q6: How does PCM-11 store program data?
A6: PCM-11 uses non-volatile memory to store all parameters, so even when moved to another FX drive of the same model, no data is lost.
Q7: Does PCM-11 support compound indexing?
A7: Yes, PCM-11 supports compound indexing, allowing precise velocity changes without stopping the motor, thus reducing machine cycle times.
Q8: Can PCM-11 programs run on other devices?
A8: Yes, because PCM-11 uses non-volatile memory to store programs, it can be moved to another FX drive of the same model and run the same programs without reloading.
