Product Introduction

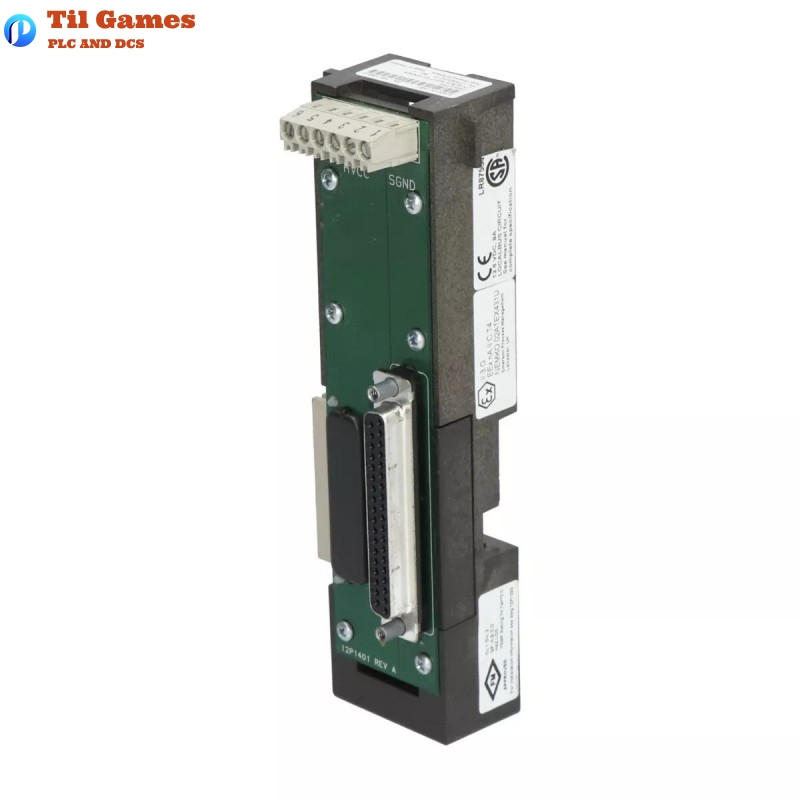

The Emerson KJ4010X1-BG1 12P0830X072 is a Right LocalBus Extender Cable Assembly designed for use in the DeltaV™ M-series Traditional I/O system. It is an essential component used to extend the LocalBus communication between I/O interface carriers in a modular DeltaV system. Engineered for robustness, this extender cable ensures signal integrity and secure interconnection across modules and enclosures in both general-purpose and hazardous area installations.
This cable assembly is built with compliance to international standards for safe operation in environments classified under Zone 2 or Class I, Division 2 hazardous locations. It supports the seamless scalability and field expandability of DeltaV systems by providing reliable LocalBus communication beyond a single carrier.
Product Features
-
Supports modular system design for DeltaV M-series Traditional I/O systems
-
Enables interconnection between multiple I/O interface carriers
-
Designed for use in hazardous area classifications: Zone 2, Class I Div. 2
-
Ensures secure and reliable communication over LocalBus
-
Suitable for installation in conduit between cabinets
-
Must be used in de-energized systems when inserting or removing
-
Conforms to G3 airborne contaminants standard
-
Built-in compliance with ATEX, IECEx, CSA, and FM safety standards
Product Advantages
-
Hazardous Area Rated: Approved for use in explosive atmospheres, including Class I Div. 2 Groups A, B, C, D and Zone 2 installations
-
Robust Environmental Tolerance: Operates in extreme temperatures from -40 to 70°C and high humidity conditions up to 95% non-condensing
-
Minimized Downtime: Designed for reliable performance without requiring maintenance or calibration
-
Secure Connection: Conduit-required installation ensures mechanical protection and shielding from electromagnetic interference
-
Space Optimization: Facilitates efficient I/O arrangement, reducing enclosure footprint
-
High Shock and Vibration Tolerance: Suitable for rugged industrial settings with mechanical stress
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | KJ4010X1-BG1 |
| Part Number | 12P0830X072 |
| Product Type | Right LocalBus Extender Cable Assembly |
| System Compatibility | DeltaV™ M-series Traditional I/O |
| Power Rating (LocalBus) | 12.6 VDC @ 8 A |
| Dimensions | 168 x 42 x 44 mm |
| Weight | 0.231 kg |
| Ambient Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Shock Resistance | 10 g, ½ sine wave, 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (5–16 Hz); 0.5 g (16–150 Hz) |
| Airborne Contaminants | ISA-S71.04-1985, Class G3 |
| Certifications | ATEX, IECEx, FM, CSA, Marine (IACS E10, DNV, ABS) |
| Hazardous Location Approval | Zone 2 / Class I Div. 2, Groups A, B, C, D, T4 |
| Insertion/Removal Condition | Must be powered off before connecting or disconnecting |
| Maintenance Requirement | None; factory calibrated and sealed |
Typical Applications
-
Extension of LocalBus communication between DeltaV I/O interface carriers
-
Distributed control architecture across multiple enclosures or field panels
-
Safe zone interconnections in petrochemical plants and oil refineries
-
Pharmaceutical process control systems requiring certified hazardous area components
-
Power generation facilities with rugged operating environments
-
Modular expansion of control cabinets in water and wastewater treatment systems
Latest Product Report Title
“DeltaV™ M-series Traditional I/O: Scalable, Flexible Field Integration with Hazardous Area Compliance – September 2023 Update”
This document outlines the updated certifications, environmental specifications, and modular architecture for the DeltaV M-series, including components like the KJ4010X1-BG1 extender.
Related Models from the Same Series
| Model Number | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| KJ3204X1-BA1 | 4-channel Analog Input Card | 107 x 41 x 105 | 0.22 |
| KJ4001X1-NA1 | 8-channel Thermocouple Input Card | 107 x 41 x 105 | 0.25 |
| KJ4002X1-BA2 | 8-channel Analog Output Card | 107 x 41 x 105 | 0.23 |
| KJ4010X1-BF1 | Left LocalBus Extender Cable Assembly | 168 x 42 x 44 | 0.231 |
| VE4002S1T1B1 | Discrete Output Terminal Block, 8-Channel, 24V DC | 107 x 41 x 105 | 0.19 |
| VE4003S2B11 | 48-pin AI Mass Termination Block for Series 2 Plus | 107 x 41 x 105 | 0.30 |
Popular Emerson Models
| Model Number | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| KJ3001X1-BB1 | 16-channel Analog Input Card, HART | 107 x 41 x 105 | 0.22 |
| KJ3002X1-BB1 | 8-channel Analog Output Card, HART | 107 x 41 x 105 | 0.21 |
| KJ4001X1-CA1 | RTD Input Card, 8-channel | 107 x 41 x 105 | 0.26 |
| KJ3002X1-BG2 | Thermocouple Analog Input Card | 107 x 41 x 105 | 0.25 |
| VE4001S2T2B4 | 32-Channel DI Terminal Block | 107 x 41 x 105 | 0.30 |
| VE4005S2B5 | 48-pin AO Mass Termination Block | 107 x 41 x 105 | 0.32 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the Emerson KJ4010X1-BG1 cable?
A1: It is used to extend the LocalBus communication between multiple DeltaV M-series I/O carriers.
Q2: Can the KJ4010X1-BG1 be used in hazardous environments?
A2: Yes, it is certified for use in Zone 2 and Class I Div. 2 hazardous locations.
Q3: Is the KJ4010X1-BG1 hot-swappable?
A3: No, it must not be connected or disconnected while the system is energized.
Q4: What are the physical dimensions and weight of this cable assembly?
A4: The unit measures 168 x 42 x 44 mm and weighs approximately 0.231 kg.
Q5: Is calibration required for the KJ4010X1-BG1?
A5: No, the cable is factory-sealed and does not require calibration or user maintenance.
Q6: What is the rated operating temperature for the KJ4010X1-BG1?
A6: It operates between -40°C to 70°C, suitable for most industrial environments.
Q7: Can this cable be used with S-series DeltaV hardware?
A7: No, it is designed for M-series hardware. M-series and S-series carriers are not physically compatible.
Q8: How long can a chain of I/O carriers connected by LocalBus extenders be?
A8: The total length of interconnected I/O carriers and extenders must not exceed 6.5 meters.
