Product Introduction

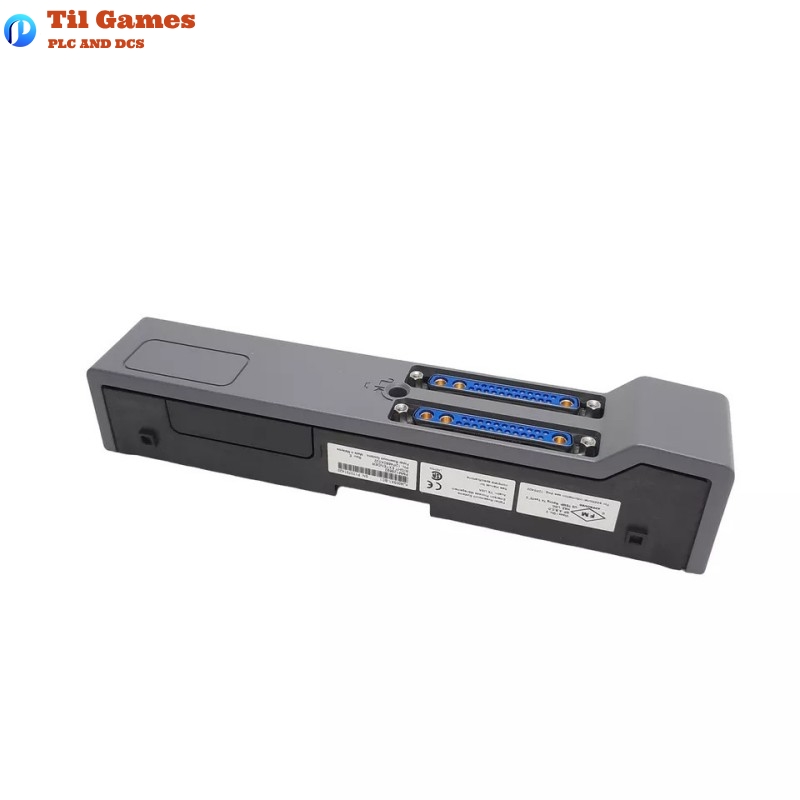

The Emerson KJ4005X1-BC1 is a Right Extender Module for the DeltaV™ S-series I/O system. It is designed to enable flexible system expansion by allowing horizontal carriers to connect seamlessly across multiple DIN rails via extender cables. As part of the modular DeltaV platform, it promotes scalable architecture and ease of integration, meeting the demands of modern distributed control systems (DCS) in complex industrial environments.
This extender supports plug-and-play connection with DeltaV I/O interface carriers, forming a key component in building or extending control infrastructure.
Key Features
-
Plug-and-play extensibility for adding additional I/O modules on the same control network
-
No special tools required: snap-in DIN rail installation
-
Supports redundancy through dual cabling
-
Compact and robust construction for industrial-grade environments
-
Compatible with 24V DC bulk power architecture of the DeltaV S-series
-
Fully integrated into the DeltaV distributed control system architecture
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | DeltaV System Right Extender |
| Model Number | KJ4005X1-BC1 |
| Product Type | 1-Wide Right Extender for S-series Carriers |
| Installation Type | Snap-in to T-type DIN rail |
| Power Type | 24V DC (uses power from I/O Carriers) |
| Compatibility | DeltaV S-series Horizontal I/O Carriers |
| Connection Type | Snap-on with Carrier-to-Carrier Interconnect |
| Dimensions (H x W x D) | 30 x 40 x 229 mm |
| Weight | 0.25 kg |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration Resistance | 1 mm (5–13.2 Hz), 0.7 g (13.2–150 Hz) |
| Shock Resistance | 10 g, 11 ms, ½ sine wave |
| Ingress Protection Rating | IP20 |
| Certifications | CE, FM, CSA, ATEX, IEC-Ex, Marine |
| Hazardous Location Approval | Class I, Div. 2, Groups A, B, C, D, T4 |
Applications
-
Process Automation Systems: Used in industries such as oil & gas, chemical, pharmaceutical, and power generation.
-
Control System Expansion: Seamlessly integrates with existing S-series carriers to extend I/O capacity across DIN rails.
-
Redundant Architecture Designs: Facilitates resilient system configurations with dual cabling.
-
I/O System Integration: Enables fast and modular setup of additional I/O points without system shutdown.
Product Advantages
-
Scalability: Easily adds to existing DeltaV systems for growing plant needs.
-
Simplified Maintenance: Tool-free installation and quick removal reduce downtime.
-
Enhanced System Robustness: Dual-cable support ensures redundancy.
-
High Environmental Tolerance: Wide operating temperature and vibration tolerance make it ideal for harsh industrial settings.
-
Certified for Global Use: Multiple certifications including marine and hazardous area approval.
Recent Product News Headlines
-
“Emerson Expands DeltaV Platform with New Modular Hardware to Simplify Process Control Systems”
-
“DeltaV S-Series Enhancements Improve System Scalability and Maintenance Efficiency”
-
“Emerson Enhances I/O Carrier Solutions to Reduce Downtime and Installation Costs”
-
“DeltaV Horizontal Carrier Extenders: A New Standard for Modular DCS Infrastructure”
-
“Emerson’s Modular Carrier Design Reduces Control System Integration Time”
Related Emerson S-Series or Compatible Models
| Model Number | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| KJ4005X1-BB1 | Left Extender 1-Wide | 30 x 40 x 229 | 0.25 |
| KJ4003X1-BH1 | Single Carrier Extender Cable (1.1m) | Cable – 1100 mm | 0.15 |
| SE4050E0C0 | 8-Wide I/O Interface Carrier with Power Buss Plugs | 120 x 360 x 229 | 1.2 |
| SE4059E0C0 | 8-Wide I/O Interface Carrier with Power Terminal Plugs | 120 x 360 x 229 | 1.3 |
| SE3051C0 | 2-Wide Power/Controller Carrier | 60 x 100 x 229 | 0.75 |
| SE4058 | DeltaV SIS S-Series Adapter | 50 x 80 x 229 | 0.4 |
Recommended Popular Emerson Models
| Model Number | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| KJ3002X1-BB1 | Analog Output Module | 30 x 40 x 229 | 0.25 |
| KJ3002X1-BG2 | Thermocouple Input Module | 30 x 40 x 229 | 0.26 |
| KJ3002X1-BF1 | RTD Input Module | 30 x 40 x 229 | 0.27 |
| KJ4010X1-BG1 | Right LocalBus Extender Cable Assembly | 30 x 40 x 229 | 0.25 |
| 12P3270X022 | Standard I/O Termination Block | 40 x 50 x 229 | 0.35 |
| 12P0631X012 | DeltaV System Cable Connector | Cable – various | 0.20 |
FAQ
Frequently Asked Questions (FAQs)
Q1: What is the function of the Emerson KJ4005X1-BC1?
A1: It serves as a right-hand extender to connect horizontal I/O carriers across DIN rails within the DeltaV S-series system.
Q2: Can this extender be installed without shutting down the system?
A2: Yes, it supports online expansion, allowing for uninterrupted installation.
Q3: Is the KJ4005X1-BC1 compatible with M-series carriers?
A3: No, it is specifically designed for the DeltaV S-series platform and does not support M-series hardware.
Q4: What are the environmental tolerances of this extender?
A4: It operates from -40°C to 70°C and withstands shock, vibration, and harsh industrial environments.
Q5: How many I/O modules can be extended using this product?
A5: Each extender allows the addition of an 8-wide I/O carrier, and multiple extenders can be used in sequence.
Q6: What certifications does this product carry?
A6: It is certified under CE, FM, CSA, ATEX, IEC-Ex, and marine standards such as DNV and ABS.
Q7: Does the extender provide power to connected modules?
A7: No, it acts as a communication and signal bus extension; power is supplied via carriers.
Q8: What installation accessories are recommended?
A8: DIN Rail stops (Model VE4054DRS) are recommended to secure horizontal carrier assemblies.
