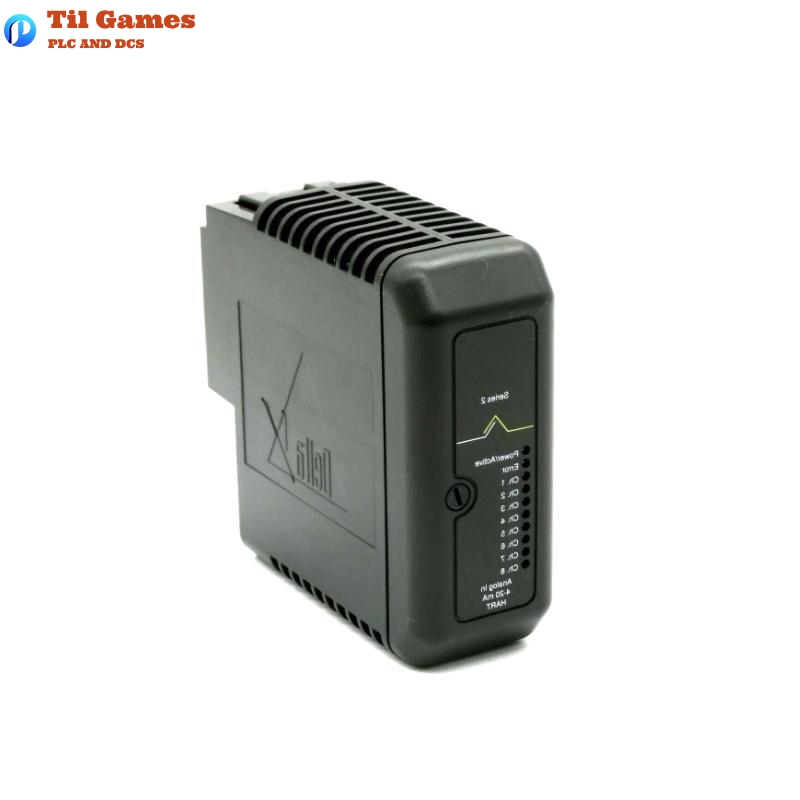

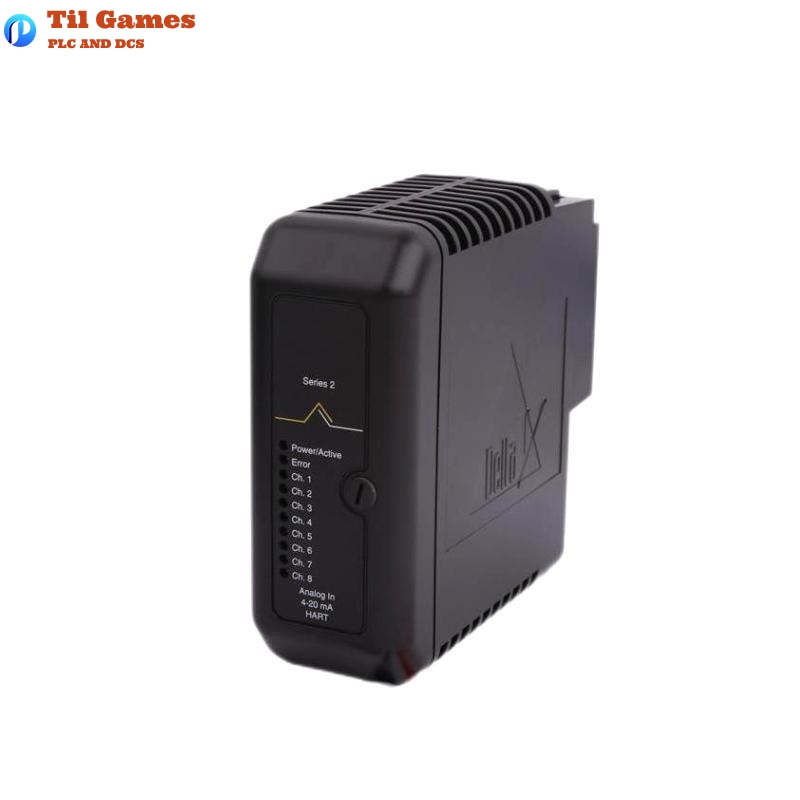

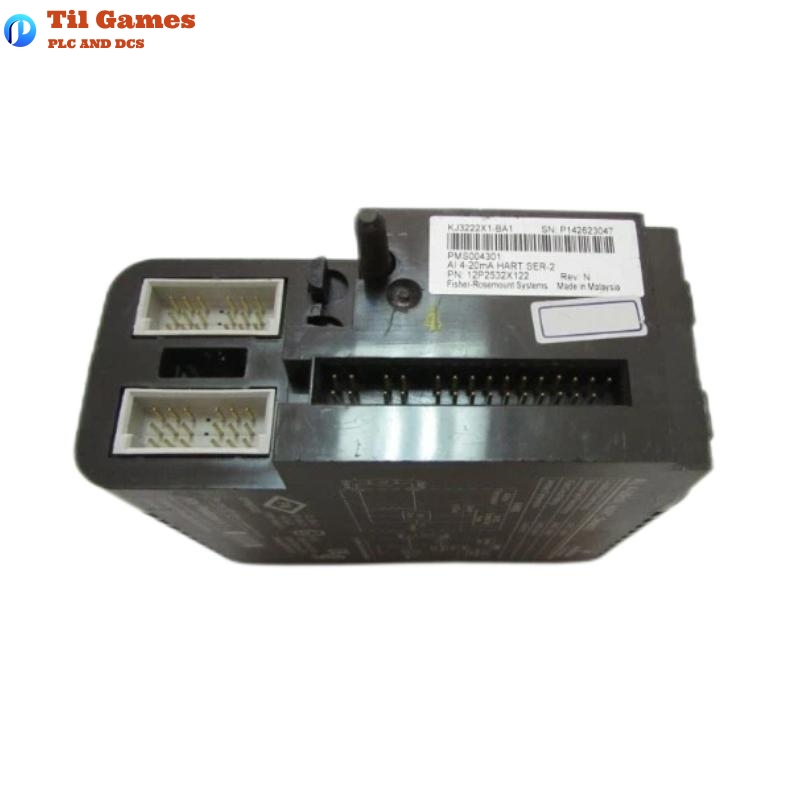

Emerson KJ3222X1-BA1 KJ4001X1-CA1 DeltaV Analog Input Card

Emerson KJ3222X1-BA1 KJ4001X1-CA1 DeltaV Analog Input Card

Manufacturer:Emerson

Product Number:KJ3222X1-BA1 KJ4001X1-CA1

Product Type:DeltaV Analog Input Card

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.18 kg

Views:24

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3222X1-BA1-KJ4001X1-CA1-4-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3222X1-BA1-KJ4001X1-CA1-5.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3222X1-BA1-KJ4001X1-CA1-6.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3222X1-BA1-KJ4001X1-CA1-1.jpg
Company Information
E-mail sales@xmjzjsgs.com
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Technical Specifications

Parameter Description
Model KJ3222X1-BA1 / KJ4001X1-CA1
Type Analog Input Card (8 Channels)
Input Signal 4–20 mA HART (AI 8-CH)
Series Series 2
Hazardous Area Rating II 3 G Ex nA [ic] IIC Gc / II 3 G Ex nA [nL] IIC Gc

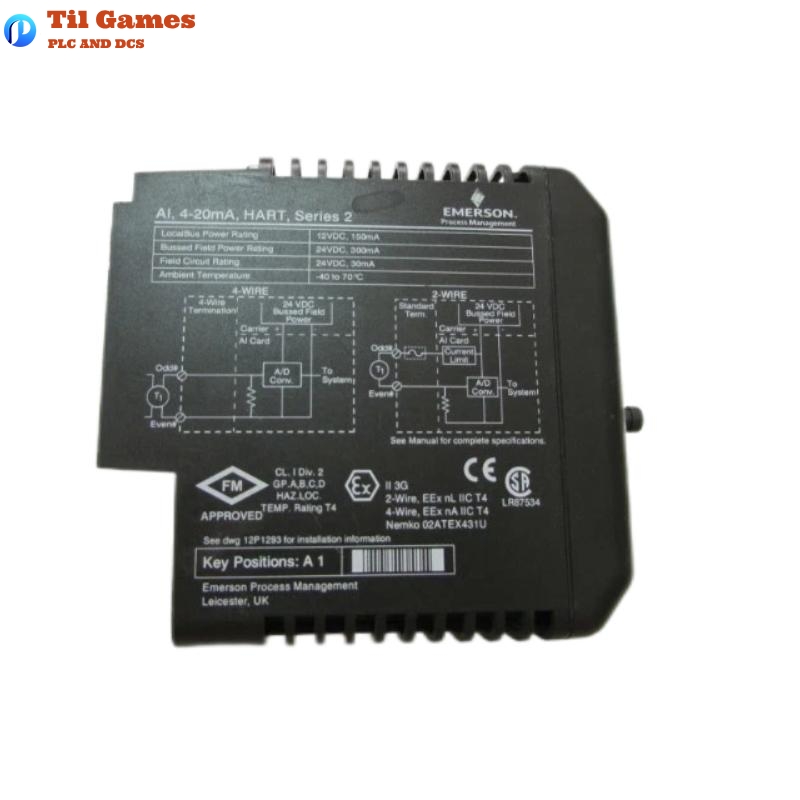

Power Consumption – Local Bus 12 VDC at 150 mA
Power Consumption – Bussed Field Power 24 VDC at 300 mA
Power Consumption – Field Circuit 24 VDC at 30 mA per channel
Operating Temperature -40°C to +70°C
Humidity 5% to 95% RH, non-condensing
Shock Resistance 10 g, half-sine wave for 11 ms
Vibration Resistance 1 mm (2–13.2 Hz), 0.7 g (13.2–150 Hz)
Airborne Contaminants ISA-S71.04 –1985 Class G3
Terminal Block Key Position A1
Dimensions (W x H x D) 107 x 41 x 105 mm
Weight 0.18 kg
Calibration Requirement Not required
User Serviceable Parts None
Installation Note Not hot-swappable; remove power before handling
FAQ

Frequently Asked Questions (FAQs)

Q1: What signal type does the KJ3222X1-BA1 support?
A1: It supports 4–20 mA analog input with HART protocol.

Q2: Can this module be installed or removed while the system is powered?
A2: No, it is not hot-swappable. Power must be disconnected before insertion or removal.

Q3: Is the KJ3222X1-BA1 suitable for hazardous environments?
A3: Yes, it is certified for use in Zone 2 hazardous areas per ATEX and IECEx standards.

Q4: Does the module require periodic calibration?
A4: No, calibration is not required for this unit.

Q5: How many channels are available on this card?
A5: The module has 8 analog input channels.

Q6: What type of terminal block keying does it use?
A6: It uses key position A1 to prevent incorrect installation.

Q7: What should be done before removing the module?
A7: All field and bussed power must be turned off to avoid damage or hazards.

Q8: What kind of environments is this module rated for?
A8: It supports a wide temperature range from -40°C to +70°C and is resistant to shock, vibration, and airborne contaminants (Class G3).
