Product Overview

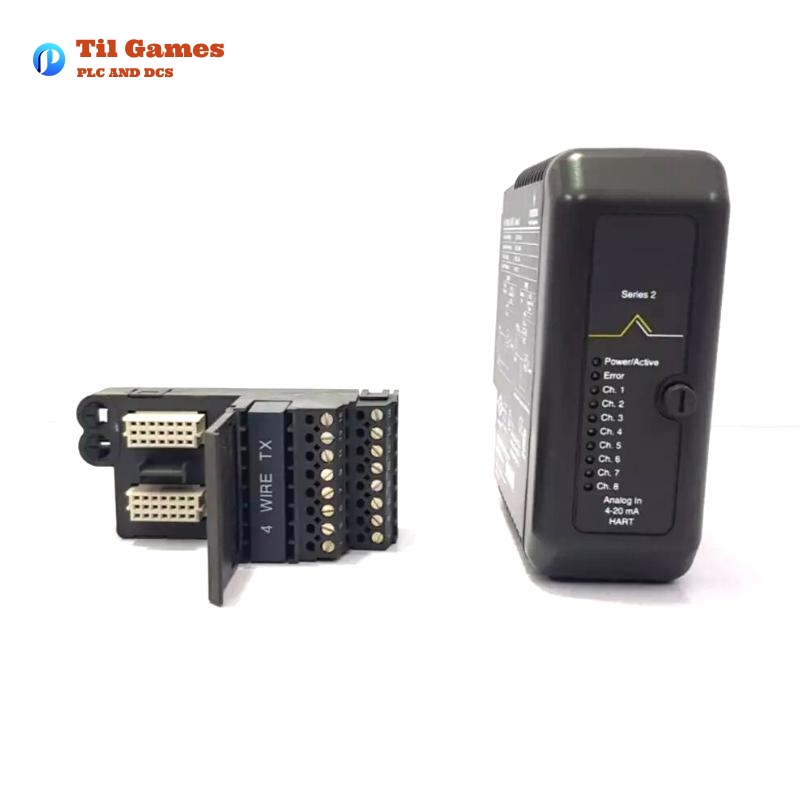

The Emerson KJ3222X1-BA1 12P2532X152 CE4003S2B3 DeltaV Analog Input Card is a high-performance modular I/O component designed for industrial automation and process control systems. It integrates seamlessly into Emerson’s DeltaV distributed control system (DCS), providing reliable analog signal acquisition and conversion for critical applications.
Product Specifications
| Parameter | Details |
|---|---|
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
| Local Bus Power | 12 VDC, 150 mA |
| Bussed Field Power | 24 VDC, 300 mA |
| Field Circuit | 24 VDC, 30 mA per channel |
| Ambient Temperature | -40 °C to +70 °C |
| Shock Resistance | 10 g half-sine wave (11 ms duration) |
| Vibration Resistance | 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
| Humidity Tolerance | 5–95% non-condensing |
| Compliance | ISA-S71.04-1985 Airborne Contaminants Class G3 |
| Terminal Block Key | A1 |
Product Features
- High Precision: Supports analog signal acquisition with low noise and high resolution.
- Wide Temperature Range: Operates reliably in extreme environments (-40 °C to +70 °C).
- Robust Construction: Resists shock, vibration, and airborne contaminants (Class G3).
- Modular Design: Hot-swappable terminal blocks with rotary keying for secure compatibility.
- Energy Compliance: Meets safety standards for energy-limited nodes.
Product Advantages
- Reliability: Engineered for 24/7 operation in harsh industrial conditions.
- Ease of Integration: Compatible with DeltaV systems for streamlined installation.
- Safety: Requires de-energized power during removal/insertion to prevent hazards.
- Scalability: Supports multiple channels for flexible system expansion.
Applications
- Process control in chemical, oil, and gas industries.
- Monitoring and data acquisition in power generation plants.
- Automation systems in manufacturing and water treatment facilities.
Latest News Headline
“Emerson Enhances DeltaV System Capabilities with Next-Gen Analog Input Cards for Industrial IoT Integration”
Recommended Related Models (Same Series)
| Model | Channels | Input Type | Power Requirements | Dimensions | Weight |
|---|---|---|---|---|---|
| KJ3222X1-BA2 | 16 | 4–20 mA | 24 VDC, 400 mA | 80 x 120 x 25 mm | 0.20 kg |
| KJ3222X1-BA3 | 8 | Thermocouple (TC) | 12 VDC, 200 mA | 80 x 120 x 25 mm | 0.18 kg |
| KJ3222X1-BA4 | 32 | RTD | 24 VDC, 500 mA | 100 x 150 x 30 mm | 0.25 kg |
| KJ3222X1-BA5 | 12 | Voltage (0–10 V) | 12 VDC, 150 mA | 80 x 120 x 25 mm | 0.18 kg |
| KJ3222X1-BA6 | 24 | HART Communication | 24 VDC, 600 mA | 100 x 150 x 30 mm | 0.30 kg |
| KJ3222X1-BA7 | 16 | Differential Voltage | 24 VDC, 350 mA | 80 x 120 x 25 mm | 0.20 kg |
Popular Emerson Models
| Model | Type | Key Parameters | Dimensions | Weight |
|---|---|---|---|---|
| DeltaV PK Controller | Process Controller | 32-bit CPU, 16 GB memory, -20–60 °C operation | 200 x 150 x 50 mm | 1.2 kg |
| Rosemount 3051S | Pressure Transmitter | 0.075% accuracy, 4–20 mA output | 140 x 160 x 90 mm | 2.5 kg |
| Fisher DVC6200 | Digital Valve Controller | HART/Foundation Fieldbus, IP67 rating | 180 x 120 x 80 mm | 1.8 kg |
| Micromotion 2700 | Coriolis Flow Meter | ±0.1% flow accuracy, 24 VDC power | 300 x 200 x 150 mm | 5.0 kg |
| AVENTICS Series III | Pneumatic Valve | 24 VDC/120 VAC, 10 bar max pressure | 120 x 80 x 60 mm | 0.9 kg |
| Ovation Compact PCI | I/O Module | 16 AI channels, -40–70 °C operation | 100 x 120 x 30 mm | 0.5 kg |
FAQ
FAQ
Q1: Can this card be replaced while the system is powered?
A1: No. Field power must be disconnected before removal or insertion to ensure safety.
Q2: What is the purpose of the rotary keying system?
A2: It ensures terminal blocks are only compatible with designated I/O cards, preventing miswiring.
Q3: Is this card suitable for outdoor installations?
A3: Yes, it operates in temperatures from -40 °C to +70 °C and resists humidity and contaminants.
Q4: How many channels does this analog input card support?
A4: The base model supports 12 channels (30 mA per channel).
Q5: What certifications does this product hold?
A5: It complies with ISA-S71.04-1985 Class G3 for airborne contaminants.
Q6: Can it interface with HART-enabled devices?
A6: This model does not support HART; consider KJ3222X1-BA6 for HART communication.
Q7: What is the maximum shock tolerance?
A7: 10 g half-sine wave for 11 ms.
Q8: Are spare terminal blocks available separately?
A8: Yes, Emerson provides compatible terminal blocks with configurable key positions.
