Product Introduction

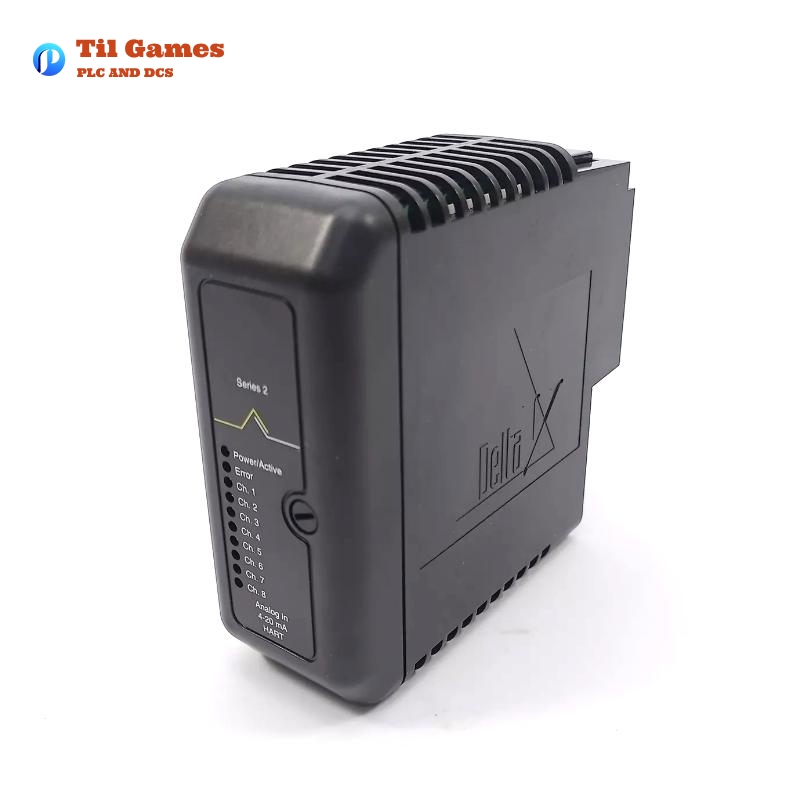

The Emerson KJ3222X1-BA1 12P2532X072 DeltaV Analog Input Card is a high-performance industrial automation component designed for precise analog signal acquisition in process control systems. This card is part of Emerson’s DeltaV™ distributed control system (DCS) portfolio, offering reliable measurement capabilities for critical industrial applications.
The module features 8-channel analog input functionality with advanced signal conditioning and isolation, making it suitable for demanding environments. Its compact design and robust construction meet stringent industrial standards for reliability and longevity.
Product Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 8 |
| Input Type | Analog (voltage/current) |
| Input Range | 0-10V, ±10V, 0-20mA, 4-20mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-system |
| Power Supply | 12 VDC at 150 mA (local bus) |
| Field Power | 24 VDC at 300 mA (bussed) |
| Field Circuit | 24 VDC at 30 mA per channel |
| Operating Temperature | -40 °C to +70 °C |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.18 kg |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak (2-13.2 Hz), 0.7 g (13.2-150 Hz) |
| Compliance | ISA-S71.04 G3 for airborne contaminants |
| Terminal Block Key Position | A1 |
Product Features
- High-density 8-channel analog input configuration
- Universal input support for both voltage and current signals
- Advanced signal isolation for noise immunity
- Hot-swappable design (with proper power sequencing)
- Rotary keying system for secure terminal block connection
- Wide operating temperature range (-40°C to +70°C)
- Compact form factor for space-constrained installations
- Robust construction for harsh industrial environments
- Compliance with ISA-S71.04 G3 for airborne contaminants
- Integrated diagnostics for maintenance and troubleshooting
Product Advantages
- Enhanced Accuracy: 16-bit resolution with ±0.1% accuracy ensures precise measurement for critical processes.
- Flexible Configuration: Supports multiple input ranges (voltage and current) on the same card.
- Reliable Operation: Channel-to-channel isolation prevents cross-talk and improves signal integrity.
- Easy Maintenance: Hot-swappable design minimizes downtime during replacement or maintenance.
- Environmental Robustness: Withstands extreme temperatures, vibration, and shock common in industrial settings.
- Safety Compliance: Meets international standards for hazardous area installations.
- System Integration: Seamless compatibility with DeltaV DCS architecture.
- Future-Proof Design: Supports modern industrial protocols and communication standards.
Product Applications
- Process industries (chemical, petrochemical, oil & gas)
- Power generation and distribution systems
- Pharmaceutical manufacturing
- Food and beverage processing
- Water and wastewater treatment plants
- Pulp and paper manufacturing
- HVAC control systems
- Discrete manufacturing automation
- Energy management systems
- Building automation systems
Latest News Headline
“Emerson Enhances DeltaV Analog Input Cards with Advanced Diagnostics for Predictive Maintenance in Industry 4.0 Applications”
Recommended Similar/Related Models
| Model Number | Description | Key Parameters |
|---|---|---|
| KJ3222X1-BB1 | DeltaV Analog Input Card (16-channel) | 16 ch, 16-bit, ±0.1%, 85 x 120 x 25 mm, 0.2 kg |
| KJ3221X1-BA1 | DeltaV Analog Output Card (8-channel) | 8 ch, 16-bit, ±0.1%, 80 x 120 x 25 mm, 0.18 kg |
| KJ3223X1-BA1 | DeltaV RTD Input Card (16-channel) | 16 ch RTD, 0.1°C, 85 x 120 x 25 mm, 0.2 kg |
| KJ3224X1-BA1 | DeltaV Thermocouple Input Card (16-channel) | 16 ch TC, 0.1°C, 85 x 120 x 25 mm, 0.2 kg |
| KJ3225X1-BA1 | DeltaV Digital Input Card (32-channel) | 32 ch DI, 24VDC, 80 x 120 x 25 mm, 0.18 kg |
| KJ3226X1-BA1 | DeltaV Digital Output Card (32-channel) | 32 ch DO, 24VDC, 80 x 120 x 25 mm, 0.18 kg |
Popular Emerson Models
| Model Number | Description | Key Parameters |
|---|---|---|
| KJ3001X1-BA1 | DeltaV Controller | 32-bit processor, 64MB RAM, 80 x 120 x 25 mm, 0.2 kg |
| KJ3102X1-BA1 | DeltaV Communication Card | Ethernet, RS-485, 80 x 120 x 25 mm, 0.18 kg |
| KJ4005X1-BA1 | DeltaV Power Supply | 24VDC, 5A, 80 x 120 x 25 mm, 0.25 kg |
| 3051S Series | Pressure Transmitter | 0.04% accuracy, -40 to 85°C, 3.4 kg |
| Rosemount 54 | pH/ORP Sensor | 0.01 pH accuracy, -5 to 130°C, 0.5 kg |
| Fisher D3 | Control Valve | Cv 5-200, -29 to 200°C, 15-150 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the KJ3222X1-BA1 card be replaced while the system is powered on?
A1: No, field power supplied to the device must be removed before removing or connecting the device. The unit cannot be removed or inserted with system power energized.
Q2: What types of analog signals does this card support?
A2: The card supports multiple analog input types including 0-10V, ±10V, 0-20mA, and 4-20mA signals.
Q3: What is the purpose of the rotary keying system mentioned in the specifications?
A3: The rotary keying system ensures compatibility between I/O cards and terminal blocks, preventing incorrect installations. The terminal block must have the keys set for the specific I/O card it will be used with.
Q4: What environmental conditions can this card operate in?
A4: The card operates in temperatures from -40°C to +70°C, withstands 10g shock, 1mm vibration, and meets ISA-S71.04 G3 standards for airborne contaminants.
Q5: How many channels does this analog input card have?
A5: The KJ3222X1-BA1 features 8 isolated analog input channels.
Q6: What is the power consumption of this card?
A6: The card requires 12 VDC at 150 mA for local bus power and supports bussed field power at 24 VDC with 300 mA capacity.
Q7: Are there any special installation requirements for this card?
A7: An I/O loop assessment must be complete on all energy limited nodes before installation. Proper grounding and shielding practices should be followed for optimal performance.
Q8: What maintenance procedures are recommended for this card?
A8: Regular inspection for contamination, verification of signal integrity, and checking terminal connections are recommended. The card includes diagnostic features to assist with maintenance.
