Emerson KJ3221X1-BA1 12P2531X142 DeltaV Analog Output Card

Emerson KJ3221X1-BA1 12P2531X142 DeltaV Analog Output Card

Manufacturer:Emerson

Product Number:KJ3221X1-BA1 12P2531X142

Product Type:Analog Output Card

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.231 kg

Views:14

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3221X1-BA1-12P2531X142-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3221X1-BA1-12P2531X142-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3221X1-BA1-12P2531X142-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3221X1-BA1-12P2531X142-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

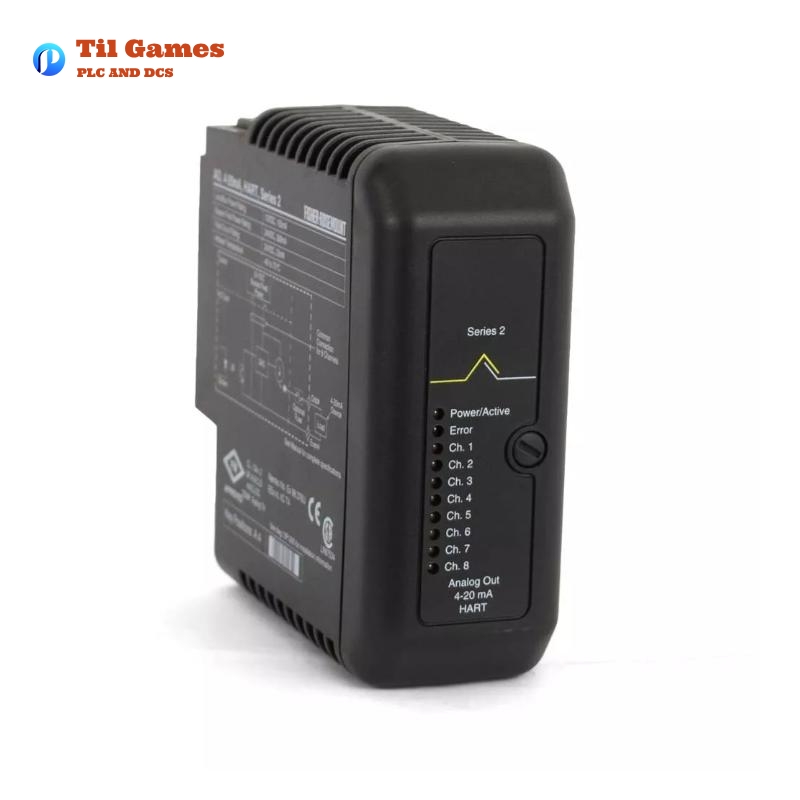

The Emerson KJ3221X1-BA1 12P2531X142 is a high-performance DeltaV Analog Output Card designed for precise control and monitoring in industrial automation systems. This module forms part of Emerson’s robust DeltaV distributed control system (DCS) portfolio, offering reliable analog signal output capabilities for critical process control applications.

The card provides isolated analog output channels with high accuracy and resolution, making it suitable for demanding industrial environments where signal integrity is paramount. Its design emphasizes ease of installation, maintenance, and long-term reliability.


Product Specifications

Parameter Specification
Dimensions 107 x 41 x 105 mm
Weight 0.231 kg
Local Bus Power 12 VDC at 150 mA
Bussed Field Power 24 VDC at 300 mA
Field Circuit 24 VDC at 23 mA/Channel
Number of Channels 8 (configurable)
Output Signal Range 4-20 mA, 0-20 mA, or other ranges (software configurable)
Resolution 16-bit
Accuracy ±0.1% of span
Update Rate 1 second per channel (typical)
Isolation Channel-to-channel and channel-to-bus isolation
Ambient Temperature Range -40°C to +70°C
Shock Resistance 10g ½ Sinewave for 11msec
Vibration Resistance 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Environmental Rating ISA-S71.04 – 1985 Airborne Contaminants Class G3
Humidity Range 5 to 95% Non-Condensing
Protection Rating IP20

Product Features

  • High-density 8-channel analog output configuration
  • Software-configurable output ranges for application flexibility
  • Advanced signal conditioning for noise immunity
  • Hot-swappable design (with proper precautions)
  • Rotary keying system for terminal block compatibility
  • Comprehensive diagnostics and status indicators
  • Built-in short-circuit and overload protection
  • Compliance with international safety standards
  • Robust construction for harsh industrial environments

Product Advantages

  • Enhanced Reliability: Designed for continuous operation in demanding conditions with high MTBF (Mean Time Between Failures)
  • Precision Control: 16-bit resolution and ±0.1% accuracy ensure precise process control
  • Flexible Configuration: Software-configurable output ranges adapt to various field devices
  • Easy Maintenance: Hot-swappable design reduces system downtime during maintenance
  • Safety Compliance: Meets stringent safety requirements for hazardous area installations
  • System Integration: Seamless integration with DeltaV DCS architecture
  • Future-Proof Design: Supports digital communication protocols for Industry 4.0 applications
  • Cost-Effective: High channel density reduces per-channel costs

Product Applications

  • Process control systems in chemical plants
  • Oil and gas production facilities
  • Power generation and distribution
  • Pharmaceutical manufacturing
  • Food and beverage processing
  • Water and wastewater treatment
  • Pulp and paper industry
  • HVAC control in large facilities
  • Discrete manufacturing automation

Latest News Headlines

  1. “Emerson Enhances DeltaV System Capabilities with New High-Density Analog Output Cards”
  2. “KJ3221X1-BA1 AO Card Sets New Standard for Precision in Process Control Applications”
  3. “Emerson’s Latest Analog Output Solution Reduces Installation Costs by 15%”
  4. “DeltaV System Expansion Includes Ruggedized Analog Output Modules for Extreme Environments”
  5. “Industry First: Emerson Introduces Smart Diagnostics for Analog Output Cards”

Recommended Related Models

Model Number Description Key Parameters
KJ3221X1-BA2 DeltaV Analog Output Card, 16-channel 38 x 125 x 114 mm, 0.25 kg, 24 VDC, 16-bit resolution
KJ3222X1-BA1 DeltaV Analog Input Card, 8-channel 38 x 125 x 114 mm, 0.22 kg, ±0.05% accuracy, 24 VDC
KJ3223X1-BA1 DeltaV Digital Output Card, 16-channel 38 x 125 x 114 mm, 0.23 kg, 24 VDC, 1A per channel
KJ3224X1-BA1 DeltaV Digital Input Card, 32-channel 38 x 125 x 114 mm, 0.24 kg, 24 VDC, 5mA per channel
KJ3225X1-BA1 DeltaV HART Analog Output Card, 8-channel 38 x 125 x 114 mm, 0.235 kg, HART 7 compatible
KJ3226X1-BA1 DeltaV Relay Output Card, 8-channel 38 x 125 x 114 mm, 0.26 kg, 250VAC/30VDC, 5A

Popular Emerson Models

Model Number Product Type Key Parameters
KJ3001X1-BA1 DeltaV Controller 132 x 200 x 115 mm, 1.2 kg, 1 GHz processor, 1GB RAM
KJ3102X1-BA1 DeltaV Power Supply 89 x 124 x 115 mm, 0.85 kg, 24 VDC, 10A output
KJ4005X1-BA1 DeltaV Communication Card 38 x 125 x 114 mm, 0.22 kg, Ethernet, PROFIBUS DP
3051S Series Pressure Transmitter 108 mm diameter, 1.5 kg, 0.04% accuracy, 4-20 mA/HART
Rosemount 54 pH/ORP Sensor 12/120 mm, 0.3 kg, -30 to 130°C, 0-14 pH range
Fisher DVC6200 Digital Valve Controller 203 x 152 x 133 mm, 3.2 kg, HART/Foundation Fieldbus
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the maximum cable length supported by the analog outputs?
A1: The card supports cable lengths up to 1000 meters for typical 4-20mA signals, though actual maximum length depends on cable gauge and field power supply.

Q2: Can the card be replaced while the system is powered?
A2: Yes, but only in non-hazardous areas and with proper precautions. Field circuits must be de-energized before removal/insertion.

Q3: What is the difference between the BA1 and BA2 versions?
A3: The BA2 version typically offers additional features such as enhanced diagnostics or communication protocols, while maintaining the same form factor.

Q4: How are the output channels isolated?
A4: Each channel is optically isolated from the bus and from other channels, providing 1500VAC isolation minimum.

Q5: What software is required to configure the card?
A5: The card is configured using Emerson’s DeltaV system software, which includes dedicated configuration tools for I/O cards.

Q6: Is special grounding required for the analog outputs?
A6: Yes, proper grounding is critical. The card provides isolated outputs, but field devices should be grounded according to manufacturer specifications.

Q7: What is the expected service life of the card?
A7: Under normal operating conditions, the card has an expected service life of 15+ years, with MTBF exceeding 100,000 hours.

Q8: Can the card operate in hazardous areas?
A8: The card itself is not explosion-proof, but can be used in hazardous areas when installed in appropriate DeltaV enclosures with proper barriers.
