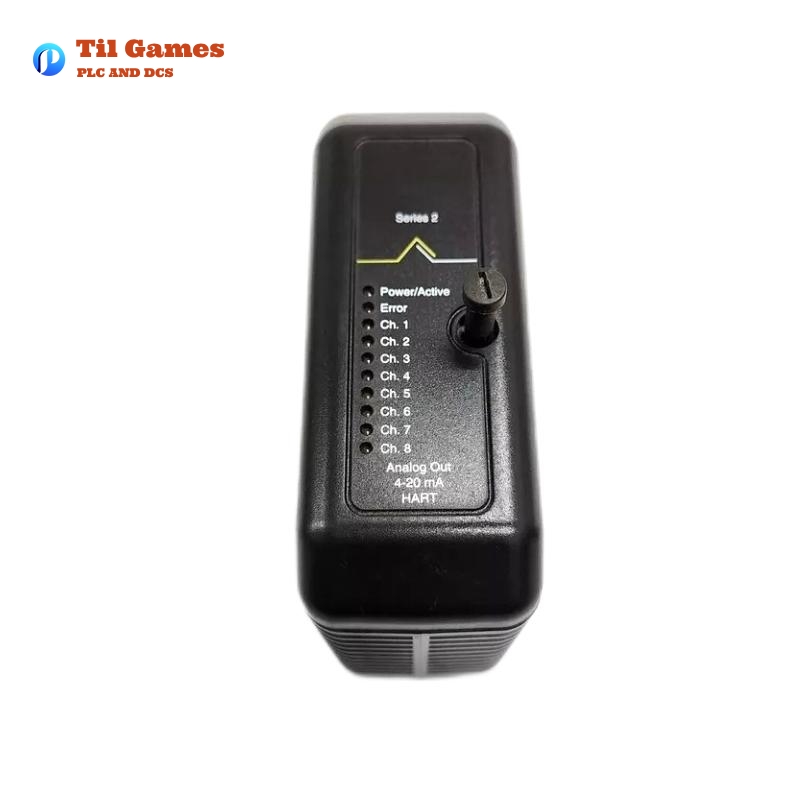

Emerson KJ3221X1-BA1 12P2531X132 VE4035S2B1 DeltaV Analog Output Card
The Emerson KJ3221X1-BA1 is an advanced analog output card designed for use in the DeltaV control system. This module is essential for high-performance applications where precise control of analog outputs is required, particularly in industrial automation and hazardous environments. With its 8 channels of 4-20 mA outputs and integration of HART protocol, this card provides robust, accurate, and reliable analog signal transmission to control various field devices.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | KJ3221X1-BA1 |
| Channels | 8 Channels (4-20 mA, HART Series 2) |
| Power Supply | Local Bus: 12 VDC at 150 mA |
| Field Power Supply | 24 VDC at 300 mA |
| Field Circuit Rating | 24 VDC at 23 mA |
| Ambient Temperature | -40 to 70°C |
| Shock Resistance | 10g ½ Sinewave for 11 ms |
| Vibration Resistance | 1mm Peak to Peak (5-16Hz); 0.5g (16-150Hz) |
| Humidity | 5-95% Non-condensing |
| IP Rating | IP20 |
| Size (L x W x H) | 107 x 41 x 105 mm |
| Weight | 0.45 kg |
Key Features
-
8-Channel Output: Supports 8 channels of 4-20 mA output, making it suitable for controlling a variety of devices.
-
HART Protocol: Enables additional digital communication over the 4-20 mA analog signal, enhancing the functionality of field devices.
-
Hazardous Location Approval: Certified for use in hazardous areas (ATEX, Class I Div. 2, T4).
-
Reliable Performance: With a wide operating temperature range of -40 to 70°C, the module ensures reliable operation even under extreme conditions.
-
Vibration and Shock Resistance: Designed to withstand industrial environments with 10g shock resistance and a broad vibration tolerance.
-
Field Power Flexibility: Can be powered locally or via the DeltaV bus, providing flexibility in system design.
Advantages
-
Enhanced Safety: Its certification for hazardous environments ensures safety when used in potentially explosive areas.
-
High Reliability: Designed for robust industrial operations, ensuring minimal downtime and long-term performance in harsh environments.
-
Flexibility: Compatible with various field devices and automation systems, offering seamless integration within DeltaV systems.
-
Ease of Maintenance: No calibration is required, and the module contains no user-serviceable parts, reducing maintenance overhead.
Applications
-
Industrial Automation: The KJ3221X1-BA1 is used to control and monitor analog field devices such as valves, actuators, and transmitters.
-
Hazardous Locations: With ATEX and Class I Div. 2 certifications, the module is ideal for use in environments where explosion risks exist.
-
Process Control: Used in systems requiring precise control of analog outputs in critical process industries such as oil & gas, chemicals, and pharmaceuticals.
Latest Report Headlines
-
“Emerson’s New DeltaV I/O Solutions for Hazardous Areas”: Focused on the expansion of Emerson’s portfolio of solutions for hazardous environments.
-
“Emerson Announces Next-Gen Analog Output Modules for High-Precision Control”: A report detailing the new features and improvements in Emerson’s analog output card lineup.
Recommended Related Models
| Model | Description | Power Rating | Temperature Range | Channels | Size (L x W x H) | Weight |
|---|---|---|---|---|---|---|
| KJ3222X1-BA1 | 8-Channel Analog Output, Non-redundant | 12 VDC at 150 mA | -40 to 70°C | 8 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3201X1-BA1 | Single Channel 4-20 mA Analog Output | 12 VDC at 150 mA | -40 to 70°C | 1 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3502X1-BA1 | Dual Channel Analog Output | 12 VDC at 150 mA | -40 to 70°C | 2 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3223X1-BA1 | 8-Channel Analog Output, HART Communication | 12 VDC at 150 mA | -40 to 70°C | 8 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3205X1-BA1 | 4-20 mA Output with Redundancy | 12 VDC at 150 mA | -40 to 70°C | 4 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3220X1-BA1 | 4-Channel HART Analog Output | 12 VDC at 150 mA | -40 to 70°C | 4 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
Popular Emerson Models
| Model | Description | Power Rating | Temperature Range | Channels | Size (L x W x H) | Weight |
|---|---|---|---|---|---|---|
| KJ1501X1-BC1 | Dual DC/DC Power Supply | 12 VDC at 150 mA | -40 to 70°C | N/A | 100 x 50 x 105 mm | 0.5 kg |
| KJ3501X1-BA1 | 16-Channel Digital Input Module | 12 VDC at 150 mA | -40 to 70°C | 16 (Digital) | 200 x 50 x 105 mm | 0.7 kg |
| KJ3200X1-BA1 | 8-Channel Digital Output Module | 12 VDC at 150 mA | -40 to 70°C | 8 (Digital) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3225X1-BA1 | 4-Channel HART Analog Output Module | 12 VDC at 150 mA | -40 to 70°C | 4 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3100X1-BA1 | 8-Channel Discrete Input Module | 12 VDC at 150 mA | -40 to 70°C | 8 (Digital) | 107 x 41 x 105 mm | 0.45 kg |
| KJ3211X1-BA1 | 8-Channel Analog Output Module | 12 VDC at 150 mA | -40 to 70°C | 8 (4-20 mA) | 107 x 41 x 105 mm | 0.45 kg |
FAQ
FAQs
Q1: What is the primary function of the KJ3221X1-BA1?
A1: The KJ3221X1-BA1 is used to provide analog output control for field devices, supporting 8 channels of 4-20 mA output with HART communication.
Q2: Can this module be used in hazardous environments?
A2: Yes, it is certified for use in hazardous areas, including ATEX and Class I Div. 2 locations.
Q3: What is the power supply rating for the KJ3221X1-BA1?
A3: The module operates on a local bus power rating of 12 VDC at 150 mA and a bussed field power rating of 24 VDC at 300 mA.
Q4: What is the ambient temperature range for the KJ3221X1-BA1?
A4: It can operate in temperatures ranging from -40°C to 70°C.
Q5: Is this module vibration-resistant?
A5: Yes, it can withstand vibration from 5 to 150 Hz, with a tolerance of 0.5g at frequencies from 16-150 Hz.
Q6: How is maintenance handled for this module?
A6: The module requires no calibration and contains no user-serviceable parts, making it low maintenance.
Q7: What are the module’s certifications for safety?
A7: It is approved for use in hazardous locations, with certifications such as ATEX and Class I Div. 2.
Q8: How do you insert or remove the module?
A8: The module can be inserted or removed while the system is powered on, under specific conditions outlined in the product documentation.
