Product Overview

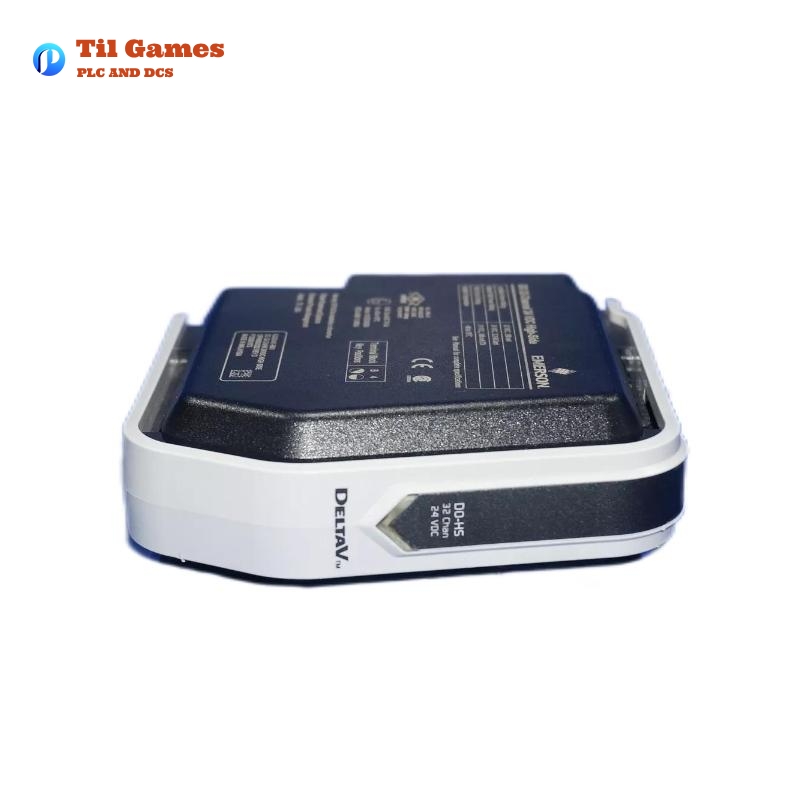

The Emerson KJ3204X1-BK1 SE4002S1T2B6 DeltaV S-Series Discrete Output Module is an advanced solution for controlling discrete field devices in harsh environments, offering high performance, reliability, and ease of integration into automation systems. This module is designed to support various field applications, particularly in industrial and hazardous environments, ensuring robust communication and operation for processes that require accurate and responsive outputs.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3204X1-BK1 SE4002S1T2B6 |
| Module Type | Discrete Output |
| Number of Channels | 32 Channels (24V DC) |
| Output Type | High-Side |
| Output Rating | 1.0 A continuous per channel |
| Inrush Current | 4.0A for <100 ms, 6.0A for <20 ms |
| Off-State Leakage | 1.2 mA maximum |
| Field Circuit Power per Card | 3.2 A at 24 V DC (+20%/-15%) |
| Ambient Temperature Range | -40°C to +70°C |
| Shock | 10g ½ Sinewave for 11 ms |
| Vibration | 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz |
| Humidity | 5 to 95% Non-Condensing |
| Dimensions | 41.8 x 130.8 x 131 mm |
| Weight | 0.4 kg |
Product Features
-
32 Channels of High-Side Output: The module supports up to 32 discrete output channels, each capable of handling high-side outputs for 24V DC devices.
-
Robust Performance: It is designed for operation in challenging environments with features like vibration and shock resistance, as well as a wide temperature range of -40°C to +70°C.
-
Hazardous Area Compatibility: The module meets various safety and hazardous area certifications, including ATEX and IECEx approvals, making it ideal for use in explosive environments.
-
Modular and Flexible Integration: It offers plug-and-play functionality, enabling easy expansion of the system without downtime.
-
Redundant System Design: Supports 1:1 redundancy, ensuring high availability and reliability in critical applications.
Product Advantages
-
Easy Installation: The module’s modular design allows for quick installation and maintenance, reducing downtime and installation costs.
-
Field-Mounted Capability: The hardware is field-mounted capable, meaning it can be installed directly in harsh industrial environments, saving space and reducing cabling requirements.
-
Flexible Expansion: The module supports online expansion without disrupting the operation of existing systems, allowing for easy scalability.
-
High Reliability: With features like redundant I/O cards and fault detection, the system ensures continuous operation even in the event of a failure.
Applications
-
Industrial Automation: Used for controlling various field devices such as actuators, solenoids, and relays in manufacturing and process control applications.
-
Hazardous Environments: Ideal for deployment in hazardous locations where safety certifications (ATEX, FM, IECEx) are necessary.
-
Remote and Field Installations: Its field-mounted design makes it suitable for remote and outdoor installations where space and wiring are limited.
Latest Reports and Publications
-
“Emerson’s DeltaV S-series Enhances Discrete Output Efficiency in Hazardous Environments” – Published in September 2023.
-
“Improved Reliability and Safety with Emerson’s Latest S-Series I/O Modules” – Released in March 2024.
Related and Popular Models
| Model Number | Description | Key Specifications |
|---|---|---|
| KJ3204X1-BK1 | DeltaV S-Series Discrete Output Module (32-ch) | 32 Channels, 24V DC, High-Side Output |
| KJ3204X1-BK2 | DeltaV S-Series High-Side Output Module (24-ch) | 24 Channels, 24V DC, High-Side Output |
| SE4002S1T2B7 | 32-Channel DC Discrete Output Module | 32 Channels, 24V DC, Redundant High-Side Output |
| SE4002S1T2B5 | 16-Channel Isolated Output Module | 16 Channels, Isolated 24V DC Output |
| SE4002S1T2B3 | 8-Channel High-Side Output Module | 8 Channels, High-Side Output, 24V DC |
| SE4002S1T2B2 | Fused Terminal 8-Channel Discrete Output Module | 8 Channels, High-Side Output, Fuse Protected |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum output current per channel?
A1: The maximum continuous output per channel is 1.0 A, with an inrush current of up to 6.0 A for less than 20 ms.
Q2: What is the temperature range for the module’s operation?
A2: The module operates in a temperature range of -40°C to +70°C.
Q3: Can the module be used in hazardous environments?
A3: Yes, the module is certified for use in hazardous areas, including ATEX and IECEx zones.
Q4: How does the redundancy work in the system?
A4: The system supports 1:1 redundancy, meaning a backup I/O card is automatically activated if the primary one fails.
Q5: What are the environmental specifications for shock and vibration?
A5: The module withstands a 10g shock (½ sine wave for 11 ms) and vibrations from 1mm peak to peak (2 to 13.2 Hz) and 0.7g (13.2 to 150 Hz).
Q6: How easy is it to expand the system?
A6: The module supports online expansion without disrupting the operation of existing systems, enabling flexible growth.
Q7: What field devices are compatible with this module?
A7: This module is designed for controlling 24V DC discrete field devices such as relays, solenoids, and actuators.
Q8: Can the module be installed in a field-mounted environment?
A8: Yes, the module is field-mounted capable and designed for use in harsh industrial conditions.
