Product Description

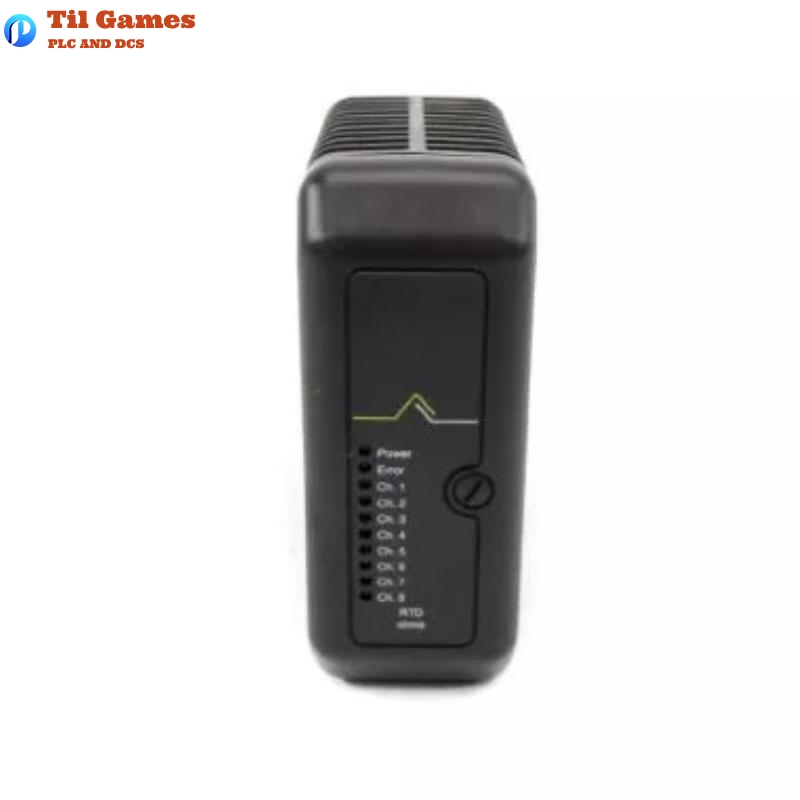

The Emerson KJ3002X1-BF1 (12P1732X082) is a high-performance, 8-channel RTD input card designed for integration into the DeltaV™ M-series Traditional I/O system. It enables precision temperature measurements using a wide range of resistance temperature detectors (RTDs) including Pt100, Pt200, Pt500, Ni120, Cu10, and user-defined sensors. The card is equipped with conformal coating, rugged construction, and is optimized for installation in process control systems within harsh industrial environments.
The RTD card uses a 16-bit A/D converter for high-resolution signal conversion and supports 2-, 3-, and 4-wire measurement configurations. It’s designed for reliability and ease of use in distributed control systems, supporting plug-and-play functionality, modular installation, and built-in diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3002X1-BF1 |
| Part Number | 12P1732X082 |
| Input Channels | 8 |
| Supported Sensor Types | Pt100, Pt200, Pt500, Ni120, Cu10, Resistance, User Defined |
| Configuration | 2-wire, 3-wire, 4-wire |
| Excitation Current | 100 µA |
| A/D Resolution | 16-bit |
| Accuracy (Pt100, Pt200) | ±0.5°C at 25°C |
| Drift (Pt100, Pt200) | ±0.018°C/°C |
| Repeatability | 0.05% of span |
| Units | °C, °F |
| Common Mode Rejection | 120 dB at 50/60 Hz |
| Common Mode Impedance | > 10 MΩ |
| LocalBus Power Consumption | 160 mA @ 12 VDC |
| Open Sensor Detection Time | 1 second |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Weight | 1.13 kg |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5 to 95%, non-condensing |
| Shock Resistance | 10g, ½-sine wave for 11 ms |
| Vibration | 1mm (5–16Hz), 0.5g (16–150Hz) |
| Protection Rating | IP20 |
| Terminal Block Key Position | B2 |
| Compliance | ISA-S71.04 Class G3, CE, ATEX, CSA, FM, IECEx |
Product Features
-
Supports 8 individually isolated RTD channels.
-
Accepts industry-standard sensors with 2-, 3-, and 4-wire configurations.
-
Compact, DIN-rail mountable card form factor.
-
High measurement accuracy and resolution for process-critical applications.
-
Auto-detection of open circuits and lead faults.
-
Cold junction compensation for temperature accuracy.
-
Compatible with DeltaV diagnostics and configuration tools.
-
Rotary keying system for terminal block compatibility and error prevention.
Product Advantages
-
Precision Measurement: High 16-bit resolution enables fine temperature control for critical applications.
-
Versatile Sensor Support: Compatible with a wide range of RTD types and measurement ranges.
-
Enhanced System Uptime: Hot-swappable under specific power conditions; no need for system shutdown.
-
Reduced Downtime: Auto diagnostics and error reporting support proactive maintenance.
-
Simplified Installation: Plug-and-play design with modular terminal blocks and clear labeling.
-
Environmental Robustness: Rated for G3 airborne contaminants and harsh industrial environments.
-
Certifications for Hazardous Areas: Meets FM, CSA, ATEX, and IECEx standards for deployment in classified locations.
Applications
-
Temperature measurement in chemical processing units.
-
Monitoring reactor conditions in pharmaceuticals.
-
Thermal control in power generation plants.
-
Cryogenic and high-temperature applications in oil & gas.
-
Food and beverage process automation.
-
Metallurgical and material heat-treatment environments.
Recent Industry Reports Featuring this Product
-
“Emerson Expands DeltaV M-Series I/O Capabilities with New RTD Modules for Advanced Temperature Profiling” – September 2023
-
“Smart Modular RTD I/O Solutions Transforming Industrial Automation” – Automation World, February 2024
-
“Precision Measurement with DeltaV: A Look into RTD Card Innovations” – Control Engineering Review, January 2024
Related Models in the Same Series
| Model Number | Description | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| KJ3002X1-BB1 | Analog Output Card (8 ch, 4–20 mA) | 8 | 107 x 41 x 105 | 1.12 |
| KJ3002X1-BG2 | Thermocouple Input Card (8 ch) | 8 | 107 x 41 x 105 | 1.14 |
| KJ3001X1-BB1 | Analog Input Card (8 ch, 4–20 mA HART) | 8 | 107 x 41 x 105 | 1.12 |
| KJ4001X1-NA1 | Right LocalBus Cable Extender | – | – | – |
| KJ3001X1-BA1 | Discrete Input Card (24V DC, 8 ch Dry Contact) | 8 | 107 x 41 x 105 | 1.10 |
| KJ3002X1-BE1 | Millivolt Input Card (8 ch, mV signals) | 8 | 107 x 41 x 105 | 1.13 |
Popular Emerson Models
| Model Number | Description | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| KJ4001X1-NA1 | Horizontal Right LocalBus Extender | Cabling | – | – |
| KJ4010X1-BG1 | Right Horizontal LocalBus Cable Assembly | Cabling | – | – |
| KJ3002X1-BB1 | Analog Output Module, 4–20 mA | Analog Output | 107 x 41 x 105 | 1.12 |
| KJ3001X1-BA1 | Digital Input Card (24V DC, 8 ch Dry Contact) | Digital Input | 107 x 41 x 105 | 1.10 |
| KJ4001X1-CA1 | Vertical LocalBus Extender | Cabling | – | – |
| KJ4010X1-BG2 | LocalBus Extender Right Cable Assembly | Cabling | – | – |
FAQ
Frequently Asked Questions (FAQ)
Q1: What RTD types are compatible with the KJ3002X1-BF1 card?
A1: The card supports Pt100, Pt200, Pt500, Ni120, Cu10, resistance, and user-defined RTDs with 2-, 3-, and 4-wire configurations.
Q2: Can this card be installed while the system is powered?
A2: Yes, under specific conditions outlined in the Zone 2 Installation Instructions, one unit at a time can be hot-swapped.
Q3: Is calibration required for the KJ3002X1-BF1?
A3: No. The card does not require calibration during operation or maintenance.
Q4: What is the A/D resolution of this RTD card?
A4: It uses a 16-bit analog-to-digital converter for high measurement resolution.
Q5: How is the open sensor detection handled?
A5: The card features open circuit and lead fault detection, typically responding within 1 second.
Q6: What diagnostic features does the card offer?
A6: Integrated diagnostics monitor sensor integrity, bus power, and signal health, with alerts shown in DeltaV diagnostics tools.
Q7: Does this card support redundant configurations?
A7: No, the KJ3002X1-BF1 is intended for simplex installations. For redundancy, other analog input cards in the DeltaV family should be used.
