Technical Specifications
| Parameter | Specification |
|---|---|

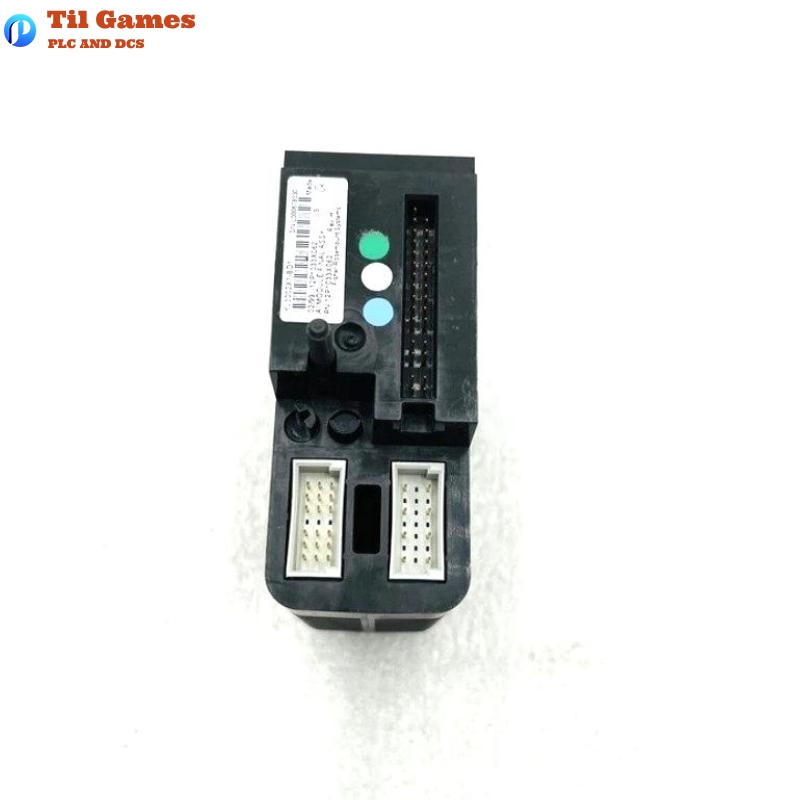

| Product Name | Emerson KJ3002X1-BD1 DeltaV Discrete Input Card |
| Input Channels | 8 channels |
| Power Specifications | Local Bus Power: 12 VDC, 150 mA |
| Field Circuit Power: 60 VDC, 1 A/channel | |
| Operating Temperature | 0 to 60°C |
| Vibration Specifications | 1mm Peak-to-Peak from 5 to 16 Hz; 0.5g from 16 to 150 Hz |
| Shock Specifications | 10g, ½ Sinewave for 11 ms |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP 20 |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.5 kg |
| Safety Approvals | CL. I Div. 2, GP.A, B, C, D, Hazardous Location, T4 |
| Installation Method | Plug-in with rotary keying system for compatibility |
FAQ
FAQ
-
Q: What is the main function of the Emerson KJ3002X1-BD1 Discrete Input Card?
A: It is used for discrete input processing in the DeltaV system, providing 8 channels of 24V DC isolated input. -
Q: What is the operating temperature range of the KJ3002X1-BD1 Discrete Input Card?
A: The operating temperature range is 0 to 60°C. -
Q: Does the KJ3002X1-BD1 Discrete Input Card require calibration?
A: No, the device does not require calibration. -
Q: Is the KJ3002X1-BD1 Discrete Input Card safety certified?
A: Yes, it is certified for Class I Div. 2, GP.A, B, C, D, and T4 temperature rating. -
Q: How many input channels does the device have?
A: The device provides 8 input channels. -
Q: What is the weight of the KJ3002X1-BD1 Discrete Input Card?
A: The weight is 0.5 kg. -
Q: What are the voltage and current specifications for the KJ3002X1-BD1 Discrete Input Card?
A: Local bus power is 12 VDC, 150 mA; field circuit power is 60 VDC, 1 A/channel. -
Q: What is the protection rating of the device?
A: The protection rating is IP 20.
