Technical Specifications

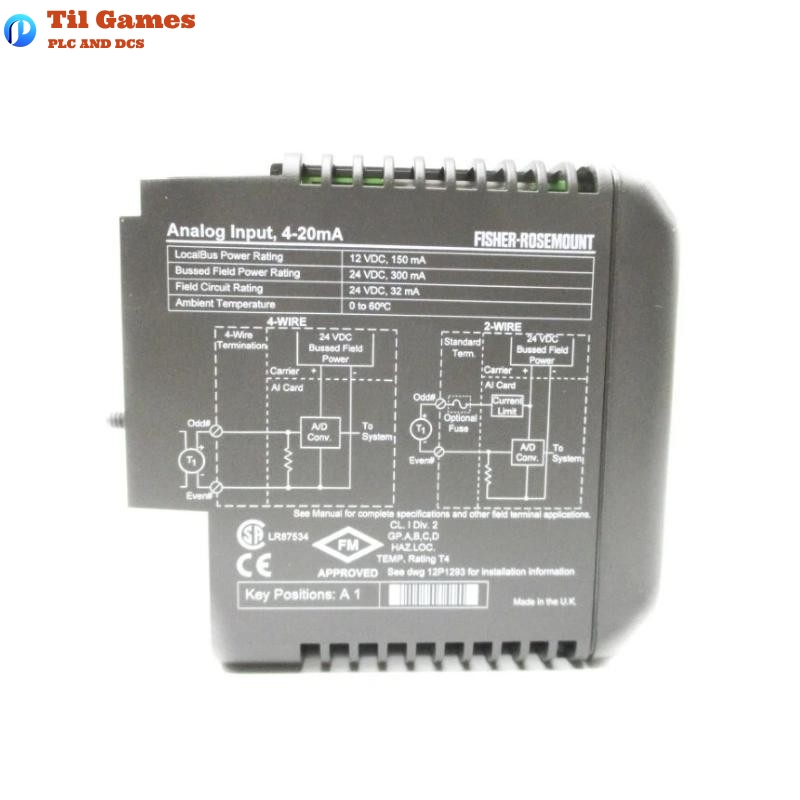

| Parameter | Details |
|---|---|

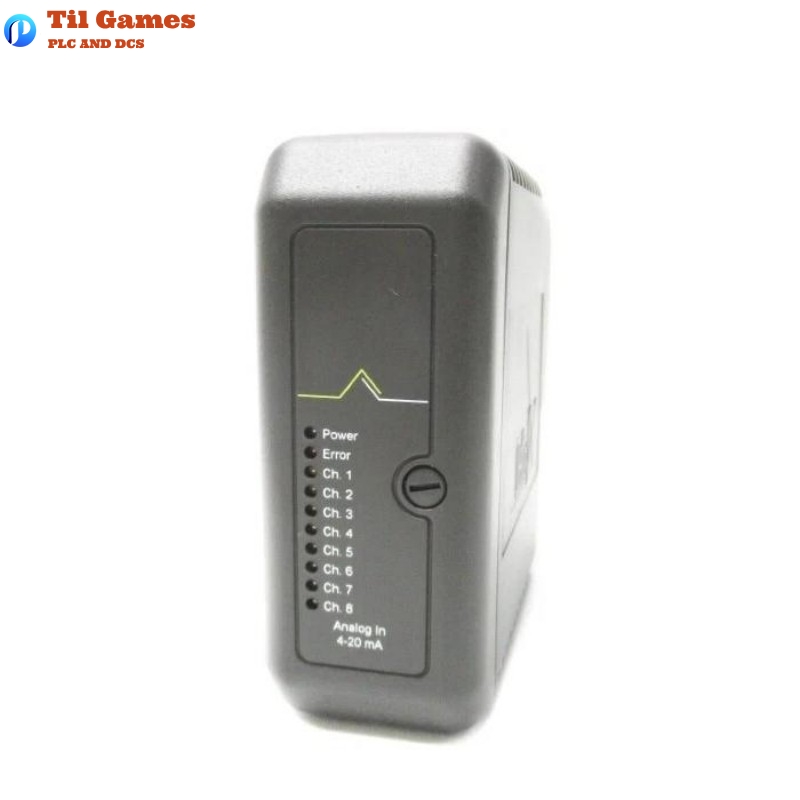

| Product Type | 2-Wire Analog Input Card |
| Input Signal Type | 4–20 mA (2-Wire Loop-Powered) |
| Number of Channels | 8 Independent Channels |
| Input Voltage Range | 24 VDC at 32 mA per channel |
| LocalBus Power Rating | 12 VDC at 150 mA |
| Bussed Field Power Rating | 12 VDC at 300 mA |
| Operating Temperature Range | 0 to 60°C |
| Relative Humidity | 5 to 95% Non-Condensing |
| Vibration | 1 mm Peak-to-Peak (5–16 Hz), 0.5g (16–150 Hz) |
| Shock | 10g ½ Sinewave for 11 msec |
| Environmental Protection | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Terminal Block Key Position | A1 |
| Approvals | ATEX (EEx nL IIC T4), CL. I Div. 2 GP. A, B, C, D |
| Hot Swap Capability | Yes, when system power is energized (conditions apply) |
| Calibration | Not required |
| User Serviceable Parts | None |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Weight | 0.181 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of input does the KJ3002X1-BC1 card accept?
A1: The KJ3002X1-BC1 accepts 4–20 mA analog input signals from 2-wire field transmitters.
Q2: How many channels are available on this card?
A2: The module provides 8 independent analog input channels.
Q3: Can the card be removed while the system is powered on?
A3: Yes, it supports hot-swapping under specific conditions, including proper power supply configurations and compliance with energy limitation rules.
Q4: Does this module require calibration before use?
A4: No calibration is required. The module is pre-configured for optimal performance.
Q5: What is the environmental protection rating for this product?
A5: The card is rated IP20, providing basic protection against solid objects.
Q6: Are there any user-serviceable parts in the KJ3002X1-BC1?
A6: No, the unit contains no user-serviceable components and should not be disassembled.
Q7: What are the acceptable ambient temperature limits for this module?
A7: The operating temperature range is 0 to 60 degrees Celsius.
Q8: What certifications does the KJ3002X1-BC1 hold?
A8: It holds ATEX certification (EEx nL IIC T4) and is approved for use in CL. I Div. 2 hazardous locations for Groups A, B, C, and D.
