Emerson KJ3002X1-BA1 12P0680X122 DeltaV Analog Input HART Module

Emerson KJ3002X1-BA1 12P0680X122 DeltaV Analog Input HART Module

Manufacturer:Emerson

Product Number:KJ3002X1-BA1 12P0680X122

Product Type:Analog Input HART Module

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.2 kg

Views:13

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3002X1-BA1-12P0680X122-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3002X1-BA1-12P0680X122-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3002X1-BA1-12P0680X122-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/KJ3002X1-BA1-12P0680X122-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

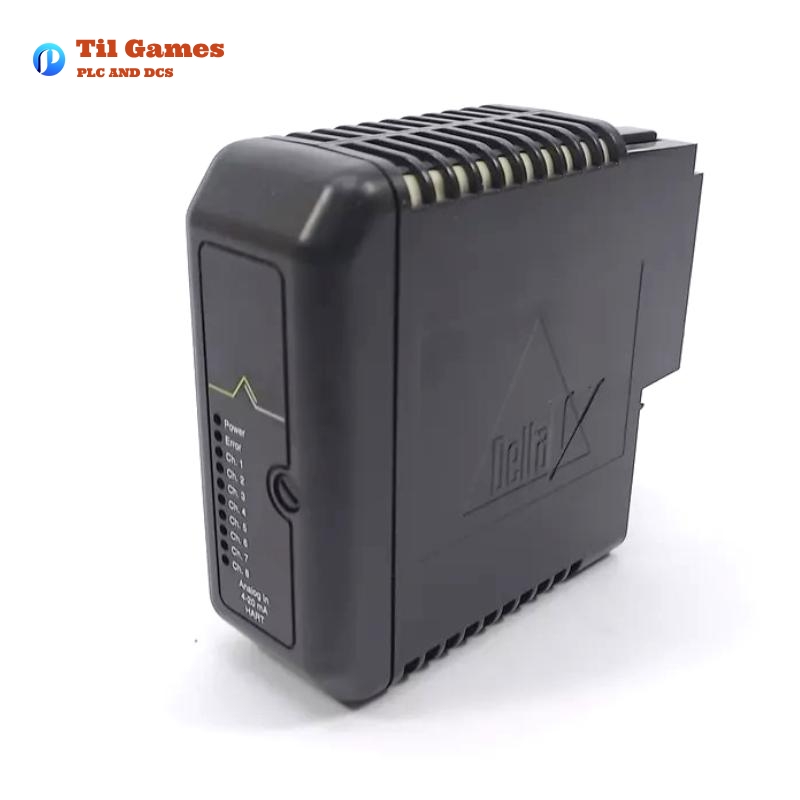

The Emerson KJ3002X1-BA1 12P0680X122 is a DeltaV Analog Input HART Module designed for process automation applications. This module provides reliable analog input signal processing with HART communication capability, enabling seamless integration with smart field devices in industrial environments.

The module is part of Emerson’s DeltaV distributed control system, offering high performance and flexibility for monitoring and control applications. Its compact design and robust construction make it suitable for various industrial settings.


Product Specifications

Parameter Specification
Dimensions 107 x 41 x 105 mm
Weight 0.2 kg
LocalBus Power Rating 12 VDC at 150 mA
Bussed Field Power Rating 24 VDC at 300 mA
Field Circuit Rating 24 VDC at 32 mA
Ambient Temperature Range 0 to 60°C
Shock Resistance 10g ½ Sinewave for 11 msec
Vibration Resistance 1mm Peak to Peak (5-16Hz), 0.5g (16-150Hz)
Airborne Contaminants ISA-S71.04–1985 Class G3
Relative Humidity 5 to 95% Non-Condensing
Protection Rating IP 20
Terminal Block Key Position A1

Product Features

  • HART communication capability for smart device integration
  • Hot-swappable design (under specific power supply conditions)
  • Rotary keying system for proper terminal block compatibility
  • Robust construction for industrial environments
  • Energy-limited node compliance for safety
  • Compact form factor for space-efficient installation
  • Wide operating temperature range (0-60°C)
  • Vibration and shock resistant design

Product Advantages

  • Enhanced Diagnostics: Provides comprehensive device diagnostics through HART protocol
  • Flexible Installation: Can be removed or inserted under specific powered conditions
  • Safety Compliance: Meets strict safety standards for industrial applications
  • Reliable Performance: Designed for continuous operation in harsh environments
  • System Integration: Seamless compatibility with DeltaV distributed control system
  • Future-Proof Design: Supports modern fieldbus communication protocols
  • Easy Maintenance: Simplified replacement procedures reduce downtime

Product Applications

  • Process control systems in chemical plants
  • Oil and gas production facilities
  • Pharmaceutical manufacturing
  • Food and beverage processing
  • Power generation plants
  • Water and wastewater treatment
  • Pulp and paper industry
  • HVAC control systems

Latest News Headlines

  1. “Emerson’s DeltaV HART Modules Achieve Industry-Leading Reliability in Harsh Environments”
  2. “New Firmware Update Enhances Diagnostic Capabilities of KJ3002X1-BA1 HART Modules”
  3. “Emerson Expands DeltaV Portfolio with Advanced Analog Input Solutions for Smart Plants”
  4. “KJ3002X1-BA1 Module Recognized for Excellence in Industrial Automation Innovation”
  5. “Case Study: Major Refinery Improves Efficiency with Emerson’s HART-Enabled DeltaV Modules”

Recommended Related Models

DeltaV Series Modules

Model Number Description Key Parameters
KJ3001X1-BA1 DeltaV Analog Output HART Module 24 VDC, 32 mA, 38x125x114mm, 0.2kg
KJ3003X1-BA1 DeltaV Discrete Input Module 24 VDC, 300 mA, 38x125x114mm, 0.2kg
KJ3004X1-BA1 DeltaV Discrete Output Module 24 VDC, 2A, 38x125x114mm, 0.22kg
KJ3005X1-BA1 DeltaV RTD Input Module 24 VDC, 150 mA, 38x125x114mm, 0.2kg
KJ3006X1-BA1 DeltaV Thermocouple Input Module 24 VDC, 150 mA, 38x125x114mm, 0.2kg
KJ3007X1-BA1 DeltaV Digital Communications Module 12 VDC, 200 mA, 38x125x114mm, 0.21kg

Popular Emerson Models

Model Number Description Key Parameters
KJ3222X1-BA1 DeltaV Electronic Marshalling Module 24 VDC, 500 mA, 45x150x120mm, 0.3kg
1C31203G01 Emerson Servo Drive 240 VAC, 5A, 150x100x50mm, 1.2kg
0065-1551 Rosemount Pressure Transmitter 24 VDC, 4-20mA, 120x90mm, 0.8kg
DL8000 Emerson Ultrasonic Flow Meter 24 VDC, 100-240VAC, 200x150x100mm, 2.5kg
140C-C4A-JT-S6 Emerson Programmable Controller 24 VDC, 1A, 120x90x70mm, 0.6kg
53E2111-P8 Emerson Solenoid Valve 24 VDC/120VAC, 1/2″ NPT, 100x60mm, 0.4kg
FAQ

Frequently Asked Questions (FAQ)

Q1: Can the KJ3002X1-BA1 module be hot-swapped during operation?
A1: Yes, but only under specific conditions – when used with KJ1501X1-BC1 System Dual DC/DC Power Supply and when primary circuit wiring inductance is less than 23 uH. Only one unit at a time may be removed with system power energized.

Q2: What is the maximum ambient temperature for operation?
A2: The module is rated for operation in ambient temperatures from 0 to 60°C (32 to 140°F).

Q3: Does this module support HART communication?
A3: Yes, the KJ3002X1-BA1 is a HART-enabled analog input module designed to communicate with HART-compatible field devices.

Q4: What safety precautions should be taken when installing or removing the module?
A4: Field power must be removed before removing or connecting the device, unless using the specified power supply under the proper conditions. An I/O loop assessment must be completed on all energy-limited nodes.

Q5: What is the significance of the terminal block key position?
A5: The A1 key position ensures compatibility between I/O cards and terminal blocks, preventing incorrect installations that could damage equipment.

Q6: Can the terminal block fuse be replaced while power is on?
A6: No, the terminal block fuse may NOT be removed with field power energized for non-sparking circuits.

Q7: What protection rating does this module have?
A7: The module has an IP 20 rating, providing protection against solid objects larger than 12.5mm but no protection against water ingress.

Q8: How does the vibration resistance specification affect installation?
A8: The module can withstand vibrations of 1mm peak-to-peak from 5-16Hz and 0.5g from 16-150Hz, making it suitable for installation in areas with mechanical vibration without requiring special mounting arrangements.

Tags
Packing & Delivery

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.


Leave Your Message
