Product Description

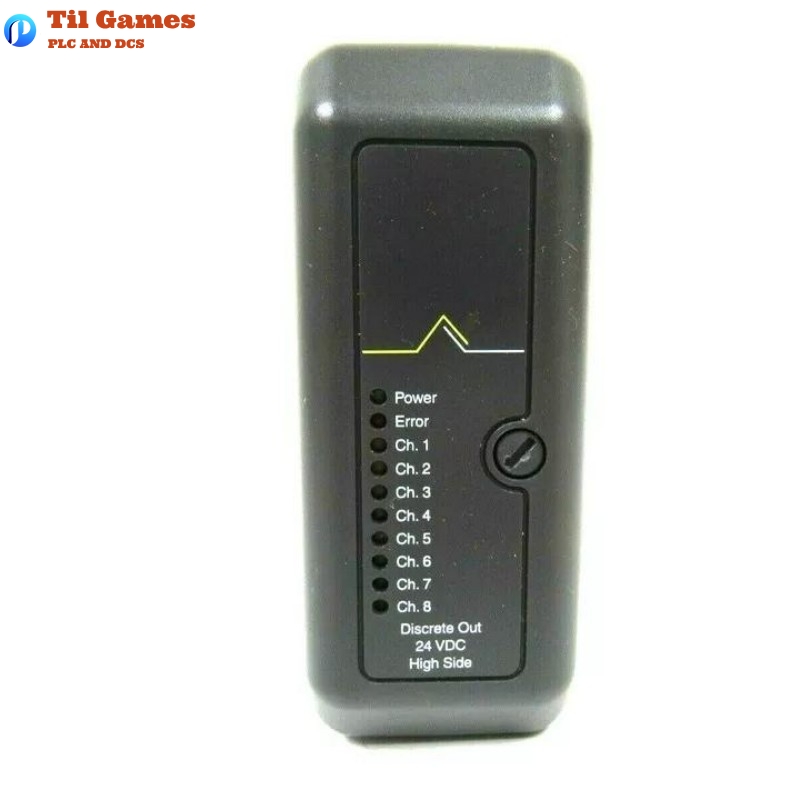

The Emerson KJ3001X1-BJ1 (12P0555X152) is a DeltaV™ High Side Discrete Output (DO) Module, designed to deliver reliable 24VDC high-side switching for control systems deployed in critical process automation environments. This module provides 8 individually isolated output channels, supporting digital signaling in safety-critical and industrial operations.
Engineered for seamless integration with DeltaV Series-1 and Series-2 systems, this module offers non-sparking outputs suitable for Zone 2 hazardous environments, in accordance with IEC 60079 standards. With its robust construction and compliance with global safety standards, it serves as a dependable interface between the control system and field devices such as solenoids, indicators, and relays.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3001X1-BJ1 |
| Emerson Part Number | 12P0555X152 |
| Description | 8-Channel, 24VDC High Side Discrete Output Module |
| Channels | 8 |
| Output Type | High Side, Non-Sparking |
| Operating Voltage | 24VDC nominal |
| Hot Swappable | Yes (with restrictions, see note below) |
| Hazardous Area Compliance | Zone 2 (ATEX, IECEx certified) |
| Environmental Temperature Range | 0°C to +60°C |
| Circuit Classification | Non-Sparking Field Circuit |
| Output Status | Indicated per channel |
| Dimensions (H x W x D) | 107 mm × 41 mm × 105 mm |
| Weight | 0.67 kg |
| Installation | DIN rail (via I/O Carrier) |
| System Compatibility | DeltaV Series-1 & Series-2 |
Note: Module removal/insertion with power ON is allowed only when used with approved 12/24VDC system power supplies and wiring inductance below 23 μH.
Product Features
-
8 individually isolated high-side outputs supporting safe and controlled switching.
-
Designed for use in hazardous Zone 2 environments per IEC/EN 60079-15 with non-sparking classification.
-
Supports hot-swap under approved system configurations, minimizing downtime during maintenance.
-
Built-in diagnostic LEDs for real-time channel status indication.
-
Compatible with DeltaV hardware ecosystem, ensuring plug-and-play operation with carriers and terminal blocks.
-
Enhanced reliability and safety for process control systems, especially in energy and chemical sectors.
Product Advantages
-
Safe for Zone 2 use – Non-sparking output circuits allow safe use in areas with explosive gas atmospheres.
-
Isolation and fault containment – Each output channel is electrically isolated, improving system integrity.
-
Fast integration – Seamless interoperability with DeltaV I/O carriers and controllers.
-
Reduced downtime – Hot-swappable feature allows replacement without halting the control system (under compliant setups).
-
Long lifecycle and minimal maintenance, aligned with Emerson’s industrial durability standards.
Product Applications
-
Oil & Gas control panels (e.g., valve actuation)
-
Petrochemical and chemical plants
-
Pharmaceutical automation lines
-
Power generation and utilities
-
Water treatment facilities
-
Industrial batch processing control
Recent Technical Document Title
-
DeltaV™ Scalable Process System Zone 2 Installation Instructions – Revision AE, June 2013
Related Models (Same Series or Functional Similarity)
| Model | Description | Channels | Voltage | Circuit Type |
|---|---|---|---|---|
| KJ3001X1-BG1 | DO Module, 8-Ch, 24VDC, Isolated | 8 | 24VDC | Non-Sparking |
| KJ3001X1-CB1 | DO Module, 32-Ch, 24VDC High Side | 32 | 24VDC | Non-Sparking |
| KJ3202X1-BA1 | Series-2 DO Module, 8-Ch, 24VDC High Side | 8 | 24VDC | Non-Sparking |
| KJ3204X1-BA1 | Series-2 DO Module, 32-Ch, 24VDC High Side | 32 | 24VDC | Non-Sparking |
| KJ3002X1-BG2 | Thermocouple Input Card, 8-Ch | 8 | N/A | Energy Limited |
| KJ3002X1-BF1 | RTD Input Card, 8-Ch | 8 | N/A | Energy Limited |
Popular Emerson Models
| Model | Description | Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| KJ3001X1-BJ1 | DO Module, 8-Ch, High Side, 24VDC | Discrete Output | 107 x 41 x 105 | 0.67 |
| KJ3002X1-BA1 | AI Module, 8-Ch, 4–20mA with HART | Analog Input | 107 x 41 x 105 | 0.65 |
| KJ3002X1-BF1 | RTD Module, 8-Ch | Temperature Input | 107 x 41 x 105 | 0.65 |
| KJ3242X1-BA1 | Fieldbus H1 Card, Series-2 | Communication Interface | 107 x 41 x 105 | 0.68 |
| KJ4001X1-BB1 | 8-Wide I/O Carrier | Carrier Module | 215 x 40 x 110 | 0.82 |
| KJ3208X1-BA1 | DO Module, 8-Ch, 24VDC, Isolated, Series-2 | Discrete Output | 107 x 41 x 105 | 0.67 |
FAQ
Frequently Asked Questions (FAQs)
Q1: What type of output is provided by the KJ3001X1-BJ1 module?
A1: It provides 8 high-side discrete 24VDC outputs classified as non-sparking.
Q2: Can this module be hot-swapped during system operation?
A2: Yes, hot swapping is permitted only with compliant system power configurations and low-inductance wiring.
Q3: Is the KJ3001X1-BJ1 suitable for use in hazardous areas?
A3: Yes, it is certified for Zone 2 hazardous areas as per ATEX/IECEx standards.
Q4: What is the primary use case for this module?
A4: It is commonly used for controlling digital field devices like solenoids and indicator lamps in industrial control systems.
Q5: What environmental conditions can this module tolerate?
A5: The operational temperature range is 0°C to +60°C, with non-condensing humidity.
Q6: Is this module compatible with both DeltaV Series-1 and Series-2 systems?
A6: Yes, it integrates smoothly with both series via standard I/O carriers.
Q7: What type of terminal block is used for field wiring?
A7: The module interfaces with DeltaV standard terminal block assemblies, such as the KJ4001X1 series.
Q8: What protection is needed for installation in hazardous zones?
A8: The module must be installed in an IP54 or higher-rated enclosure certified for use in Zone 2 areas.
