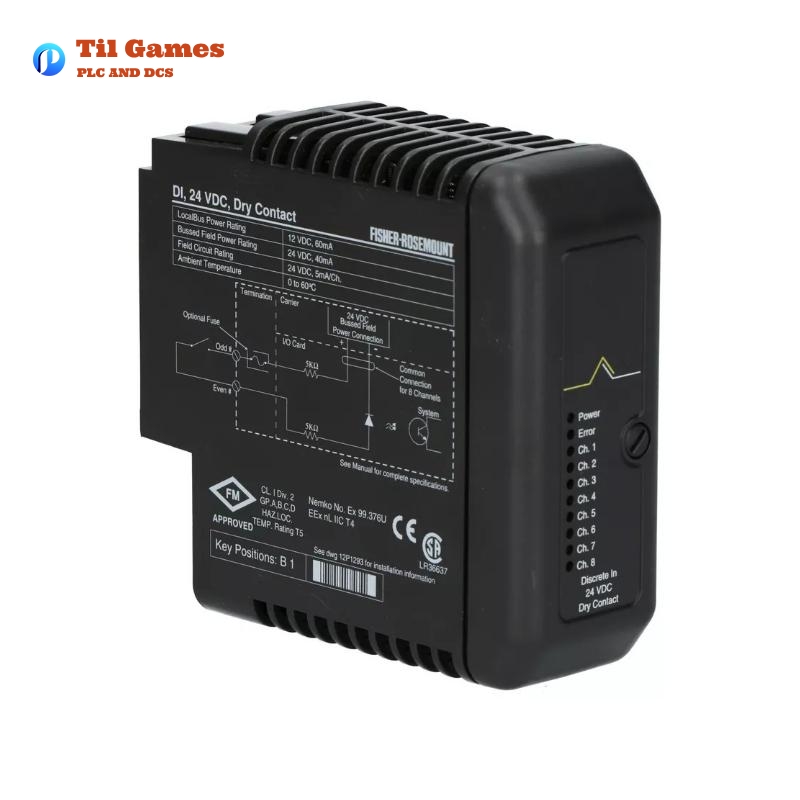

Emerson KJ3001X1-BB1 12P0550X142 Discrete Digital Input Card

Emerson KJ3001X1-BB1 12P0550X142 Discrete Digital Input Card

Manufacturer:Emerson

Product Number:KJ3001X1-BB1 12P0550X142

Product Type:Discrete Digital Input Card

Origin:USA

Dimensions:107 x 41 x 105 mm

Weight:0.4kg

Views:4

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3001X1-BB1-12P0550X142-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3001X1-BB1-12P0550X142-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3001X1-BB1-12P0550X142-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/KJ3001X1-BB1-12P0550X142-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Emerson KJ3001X1-BB1 12P0550X142 Discrete Digital Input Card

Product Overview:

The Emerson KJ3001X1-BB1 is a robust, 8-channel discrete digital input card, designed for use in hazardous environments. This unit is part of Emerson’s DeltaV system, offering reliable performance in challenging industrial applications. It supports dry contact inputs at 24 VDC, providing a high level of flexibility and security in process control systems.

Key Features:

  • 8 Channels: The card offers 8 input channels for dry contact sensors or devices.

  • Hazardous Location Compatibility: Certified for use in explosive atmospheres (ATEX II 3 G, EEx nL IIC T4), ensuring safe operation in environments with combustible gases.

  • Power Supply: Operates with 24 VDC field power at 5 mA per channel and 12 VDC at 100 mA local bus power.

  • Environmental Durability: The card is designed to function in ambient temperatures ranging from 0 to 60°C, with resistance to shock and vibration (10g shock, 1mm vibration from 5 to 16Hz).

  • IP Rating: Rated at IP 20 for protection against dust and water ingress.

  • Hazardous Atmosphere Certifications: Suitable for use in hazardous environments with specific safety approvals.

Product Advantages:

  • Reliability in Harsh Environments: With its ATEX certification and environmental resistance, this card can be used in areas where explosive gases may be present, offering peace of mind for safety.

  • Efficient Power Consumption: The card uses minimal power, ensuring cost-effective operation.

  • Easy Integration: The card is designed for seamless integration with the DeltaV system, offering flexibility in automation setups.

Product Applications:

  • Oil and Gas Industry: For monitoring equipment in hazardous areas where explosive gases might be present.

  • Chemical Processing: Ideal for applications requiring reliable discrete digital inputs in control systems.

  • Industrial Automation: Used in various industrial control systems that require secure and efficient data collection from dry contact inputs.


Product Specifications

Parameter Value
Channels 8
Input Type Dry Contact
Field Power 24 VDC at 5 mA/channel
Local Bus Power 12 VDC at 100 mA
Ambient Temperature 0 to 60°C
Shock 10g, ½ Sinewave for 11 ms
Vibration 1mm peak to peak (5 to 16Hz), 0.5g (16 to 150Hz)
IP Rating IP 20
Dimensions 107 x 41 x 105 mm
Weight 0.4 kg
Safety Certifications ATEX II 3 G, EEx nL IIC T4

Latest Product Reports (Headlines)

  1. Emerson’s New Discrete Input Cards Enhance Safety in Hazardous Environments

  2. Emerson’s KJ3001X1-BB1 Discrete Digital Input Card: A Reliable Solution for Industrial Automation

  3. DeltaV System’s New Discrete Input Cards: Addressing the Needs of the Oil and Gas Industry

  4. ATEX Certified Emerson Digital Input Cards Meet High Safety Standards

  5. Emerson Expands Industrial Automation Solutions with Latest DeltaV I/O Cards


Recommended Models from the Same Series or Related Models

Model Channels Field Power Input Type Hazardous Area Rating
KJ3001X1-BB2 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3011X1-BB1 16 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3101X1-BB1 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3201X1-BB1 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3002X1-BB1 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3012X1-BB1 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G

Popular Emerson Models

Model Channels Field Power Input Type Hazardous Area Rating
KJ3209X1-BA1 16 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ1501X1-BC1 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3501X1-BC1 16 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ1511X1-BC1 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3301X1-BA1 16 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
KJ3102X1-BC1 8 24 VDC at 5 mA/channel Dry Contact ATEX II 3 G
FAQ

FAQs (Q&A)

  • Q1: What is the power consumption of the KJ3001X1-BB1 card?

    • A1: The card consumes 12 VDC at 100 mA for the local bus power and 24 VDC at 5 mA per channel for field power.

  • Q2: Can the KJ3001X1-BB1 card be used in hazardous areas?

    • A2: Yes, it is ATEX certified for use in hazardous areas with explosive gases (ATEX II 3 G, EEx nL IIC T4).

  • Q3: What is the operating temperature range for this card?

    • A3: The operating temperature range is from 0 to 60°C.

  • Q4: How many channels does the KJ3001X1-BB1 card have?

    • A4: It features 8 channels for discrete digital inputs.

  • Q5: What is the IP rating of this card?

    • A5: The card is rated at IP 20, providing protection against dust and water ingress.

  • Q6: What safety certifications does the KJ3001X1-BB1 have?

    • A6: It is certified for ATEX hazardous environments and carries the EEx nL IIC T4 certification.

  • Q7: What is the size and weight of this input card?

    • A7: The card’s dimensions are 107 x 41 x 105 mm and it weighs 0.4 kg.

  • Q8: How should the KJ3001X1-BB1 card be installed in hazardous locations?

    • A8: The card must be installed in accordance with the specific instructions for hazardous environments outlined in the installation manuals. Power must be removed before insertion or removal.
