Technical Specifications
| Parameter | Specification |
|---|---|

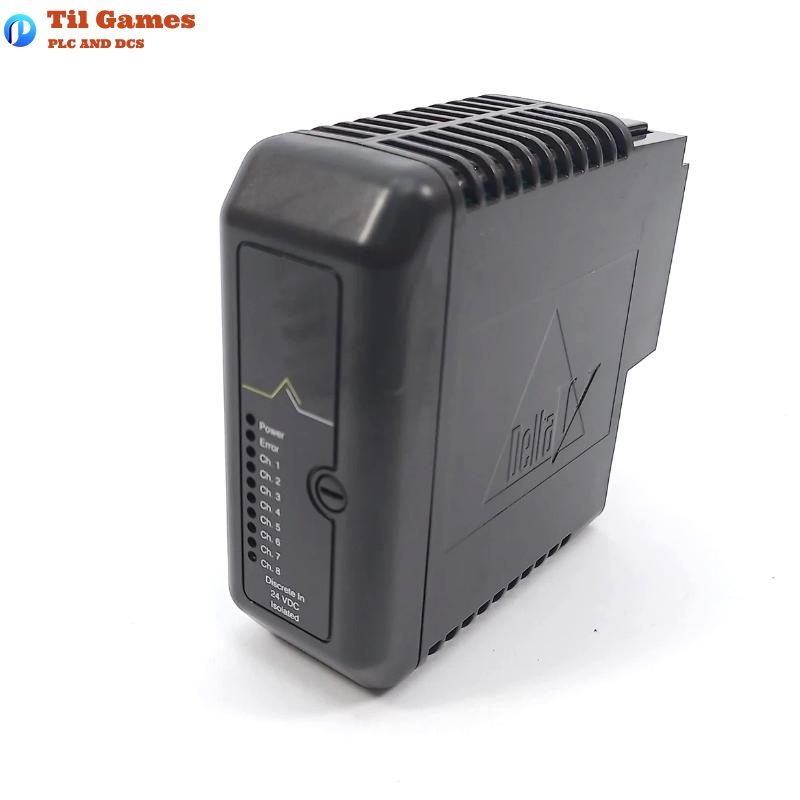

| Module Type | Discrete Input Module |
| Channels | 8 Channels |
| Input Voltage | 24 VDC |
| Power Consumption | 12 VDC, 100 mA (Local Bus Power) |
| Field Circuit Rating | 24 VDC, 5 mA/channel |
| Operating Temperature Range | 0 to 60°C |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.2 kg |
| Vibration | 1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz |
| Shock | 10g, ½ Sinewave for 11 msec |
| Humidity | 5% to 95% Non-Condensing |
| Protection Rating | IP 20 |
| Environmental | Airborne Contaminants Class G3 |
FAQ
Frequently Asked Questions (FAQ)
-
Q1: What is the operating voltage range of the Emerson KJ3001X1-BA1 module?
A1: The module operates at 24 VDC, with a field current rating of 5 mA/channel. -
Q2: Is this module suitable for hazardous areas?
A2: Yes, the module is certified for use in hazardous areas with an II 3 G rating and ATEX certification. -
Q3: What is the operating temperature range of the module?
A3: The operating temperature range of the module is 0°C to 60°C. -
Q4: What are the dimensions and weight of the module?
A4: The dimensions of the module are 107 x 41 x 105 mm, and its weight is 0.2 kg. -
Q5: Does the module require calibration?
A5: No, the module contains no user-serviceable parts and does not require calibration. -
Q6: Are there any special installation requirements for the module?
A6: Yes, field power must be removed during installation, particularly when used in hazardous areas, to ensure safety. -
Q7: Can the module be hot-swapped?
A7: Yes, the module supports hot-swapping, but only one unit may be removed or inserted at a time with system power energized. -
Q8: What is the protection rating of the module?
A8: The module has an IP 20 protection rating, suitable for environments with minimal dust and water exposure.
