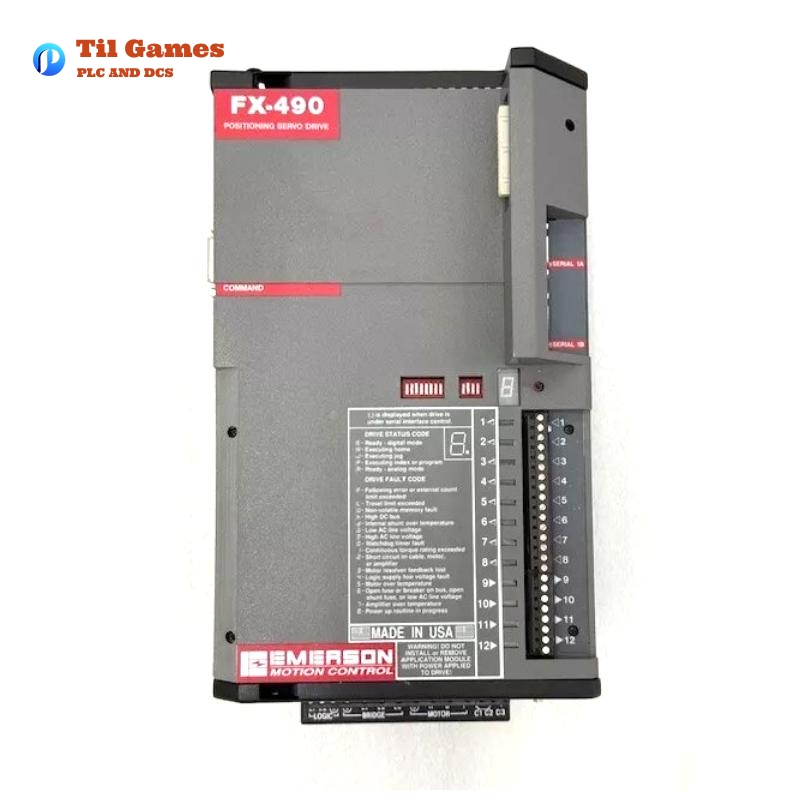

Emerson FX-490 Motion Control Brushless Positioning Servo Drive

Emerson FX-490 Motion Control Brushless Positioning Servo Drive

Manufacturer:Emerson

Product Number:FX-490

Product Type:Servo Drive

Origin:USA

Dimensions:217 x 240 x 349.4 mm

Weight:9.98 kg

Views:3

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/04/FX-490-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/FX-490-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/FX-490-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/04/FX-490-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Emerson FX-490 Motion Control Brushless Positioning Servo Drive

The Emerson FX-490 is a brushless positioning servo drive designed to provide precision and flexibility for industrial automation systems. It integrates several components into one housing, including position control, I/O, feedback, servo amplifier, and power supply. This compact design eliminates the need for external isolation transformers, enabling the FX-490 to work with a wide range of voltage sources.


Product Specifications:

Parameter Value
Model Name FX-490
Continuous Torque 8 to 120 lb-in
Voltage Range 96-264 VAC (1Ø) / 380-460 VAC (3Ø)
Input Voltage (Logic Supply) 96-264 VAC 1Ø
Output Power (Bridge Power) 96-264 VAC 1Ø or 3Ø
Weight 9.98 kg
Dimensions (H x W x D) 217 x 240 x 349.4 mm
Communication Interface RS-232 (up to 19.2 Kbaud)
Feedback Type Resolver
Certifications UL Listed, CE, Canadian UL

Key Features:

  • Built-in Position Control: FX-490 integrates all components of a motion control system, making it a simple plug-and-play solution for many industrial applications.

  • Digital Design: The servo drive’s digital architecture offers stable and efficient operation without requiring manual adjustments for loop gains or PID calibration.

  • Dynamic Gain Compensation: Automatically compensates for load-to-motor inertia mismatches (up to 10:1) without needing manual calibration, ensuring stable operation across a wide range of conditions.

  • Programming Ease: The FX-490 is programmed using PCX Software which provides a simple menu-driven interface that doesn’t require high-level programming knowledge.

  • Enhanced Flexibility: It offers multiple operating modes, including Position Control, Pulse Train Follower Mode, and Analog Mode, making it adaptable for a variety of applications.

  • Advanced Motion Profiles: Supports linear, modified sine, and other custom motion profiles to meet specific application needs.


Advantages:

  1. Easy Setup: The FX-490 does not require complex wiring or the use of isolation transformers, significantly reducing installation time.

  2. Reduced Engineering Time: The drive’s intuitive software simplifies configuration, reducing the need for specialized engineering expertise.

  3. High Flexibility: Multiple application modules can be added to the base drive for expanded I/O, memory storage, and advanced functionalities like cam profiling and ratio control.

  4. Cost-Effective: As a cost-effective servo solution, the FX-490 minimizes the need for separate components, saving both time and money in system integration.


Applications:

  • Automated Manufacturing Systems: Ideal for applications requiring high precision and reliability, such as automated assembly lines, packaging systems, and robotics.

  • Press Feed Control: Can synchronize with press cycles for accurate material handling and feeding.

  • Conveyor and Web Control: Manages the speed of moving webs or conveyor belts in applications such as textile or printing industries.


Related Models from Emerson FX Series:

Model Torque Range Power Supply Feedback Type Features
FX-208CE 8 lb-in 96-264 VAC 1Ø Resolver CE Certified, compact, cost-effective
FX-6120CE 120 lb-in 380-460 VAC 3Ø Resolver High torque capability, multiple I/O
FX-208 8 lb-in 96-264 VAC 1Ø Resolver Basic servo drive, ideal for small motors
FX-208U 8 lb-in 96-264 VAC 1Ø Resolver UL Listed, compact design
FX-6120 120 lb-in 96-264 VAC 1Ø Resolver Standard drive for medium-duty applications
FX-1100 120 lb-in 380-460 VAC 3Ø Resolver High-performance, scalable systems

Popular Emerson Servo Models:

Model Torque Range Input Voltage Features
KJ3209X1-BA1 0-50 Nm 96-264 VAC Compact, energy-efficient
KJ3000X1-BA2 0-60 Nm 380-460 VAC High-speed performance
KJ5000X1-BA3 0-100 Nm 380-460 VAC Advanced motion control capabilities
KJ4000X1-BA4 20-200 Nm 380-460 VAC Robust, designed for high-duty cycles
KJ3500X1-BA5 10-50 Nm 96-264 VAC Low power consumption
KJ6000X1-BA6 0-60 Nm 380-460 VAC IP65 rated, splashproof
FAQ

FAQs:

  1. Q: What voltage does the FX-490 require?

    • A: The FX-490 operates with a wide input voltage range of 96-264 VAC for 1Ø or 380-460 VAC for 3Ø.

  2. Q: Can I connect multiple FX-490 drives to one control system?

    • A: Yes, the FX-490 supports RS-232 communication, allowing up to 31 drives to be daisy-chained on a single communication link.

  3. Q: How does Dynamic Gain Compensation (DGC) work?

    • A: DGC automatically adjusts the drive for optimal performance without manual tuning, compensating for inertia mismatches up to 10:1.

  4. Q: What software do I need to program the FX-490?

    • A: The FX-490 is programmed using PCX Software, available for both DOS and Windows™ systems.

  5. Q: What is the maximum torque output of the FX-490?

    • A: The FX-490 can provide up to 120 lb-in of continuous torque, depending on the motor selection.

  6. Q: Is the FX-490 suitable for high-speed applications?

    • A: Yes, the FX-490 is designed for a variety of speed and torque requirements, making it ideal for both high-speed and high-precision applications.

  7. Q: Does the FX-490 support advanced motion profiles?

    • A: Yes, it supports linear and modified sine wave profiles, along with other custom motion profiles.

  8. Q: What kind of motors are compatible with the FX-490?

    • A: The FX-490 is designed to work with Emerson’s DX and BL Series of brushless servo motors, offering excellent torque-to-inertia ratios.
