Technical Specifications
| Parameter | Value |
|---|---|

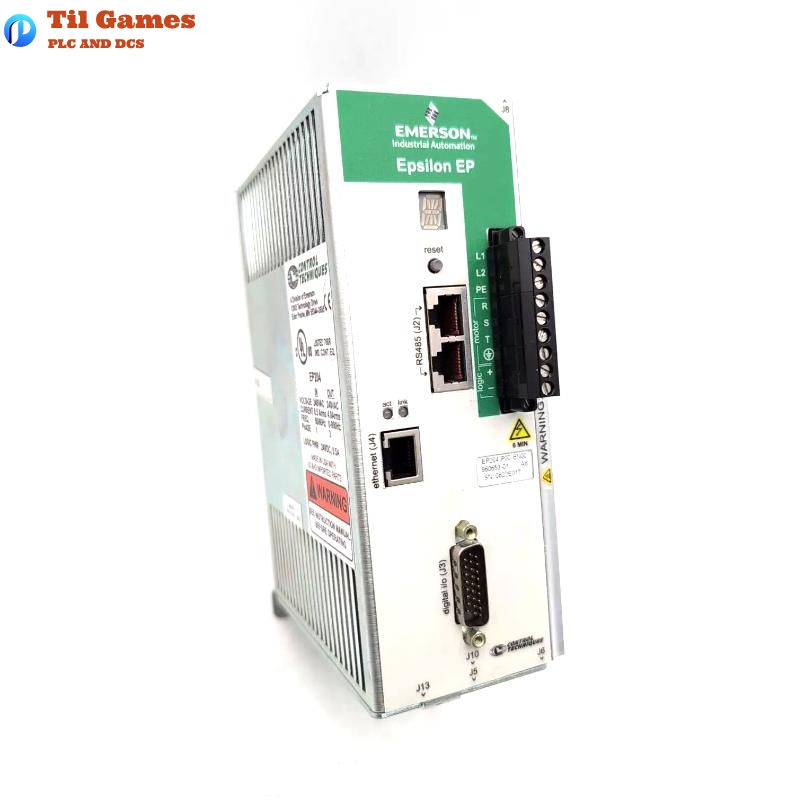

| Model Number | EP204-I00-EN00 |
| Continuous Power | 1275 W |
| Continuous Current (at 40°C) | 4.0 A RMS |
| Peak Current | 8 A RMS |
| Logic Power Supply Input | 24 Vdc ±10% |
| Switching Frequency | 10 kHz |
| Power Supply Output | 5 Vdc, 250 mA maximum (for master encoder) |
| Efficiency (Drive AC Power) | 95% at full rated output power |
| Ingress Protection (IP) Rating | IP20 |
| Cooling Method | Natural Convection |
| Environmental Conditions | Pollution degree 2, Max operating temperature: 40°C (50°C with derating), Vibration: 2g (10 Hz to 2000 Hz) |
| Dimensions | 53.59 x 205.72 x 150.88 mm |
| Weight | 1.63 kg |
FAQ
FAQs
-
Q: What is the rated continuous power of the EP204-I00-EN00 drive?
A: The rated continuous power is 1275 W. -
Q: What is the peak current capability of this drive?
A: The peak current is 8 A RMS. -
Q: Can this drive be used in outdoor applications?
A: The EP204 is designed for indoor use with an IP20 rating, which provides limited protection against dust and no protection against water. -
Q: What is the voltage range for the input power?
A: The drive can operate with an input voltage of 20 Vac to 264 Vac, single-phase. -
Q: What are the cooling requirements for this drive?
A: The EP204-I00-EN00 uses natural convection for cooling. -
Q: How does the drive handle fault conditions?
A: The drive has fault detection capabilities for overtemperature, overspeed, encoder state errors, and more. Faults are stored with timestamps for diagnostics. -
Q: What are the environmental specifications for this drive?
A: The drive can operate in environments with a maximum surrounding temperature of 40°C (50°C with derating) and a humidity range of 10% to 95% (non-condensing). -
Q: What is the weight and dimensions of the EP204-I00-EN00?
A: The drive weighs 1.63 kg and has dimensions of 53.59 x 205.72 x 150.88 mm.
