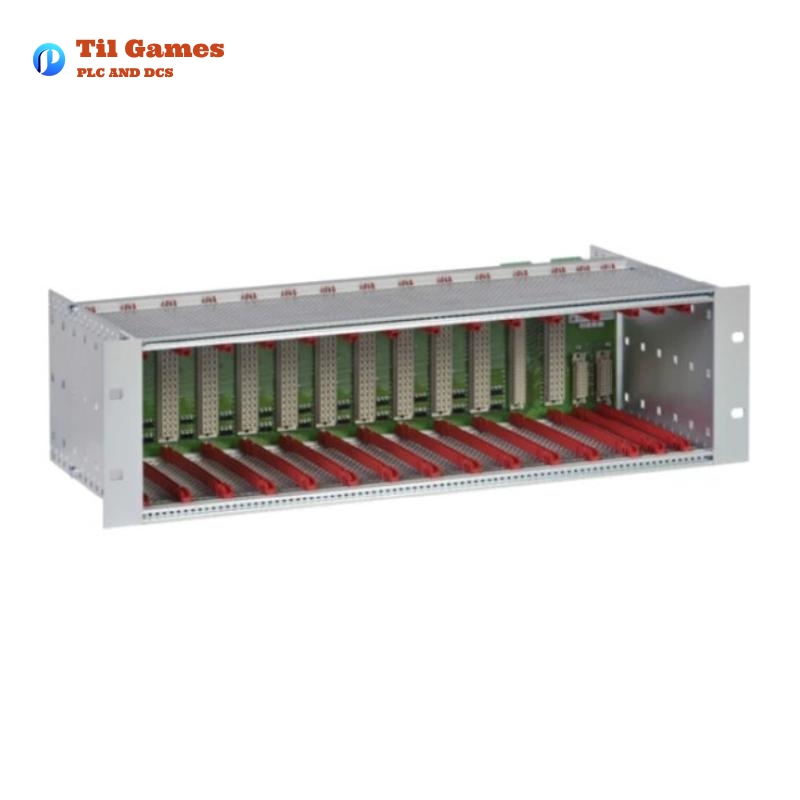

Emerson A6500-SR Machinery Health Systems Racks

Emerson A6500-SR Machinery Health Systems Racks

Manufacturer:Emerson

Product Number:A6500-SR

Product Type:Systems Racks

Origin:USA

Dimensions:133.35 x 426.72 mm

Weight:2.4 kg

Views:26

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-SR-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-SR-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-SR-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-SR-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Parameter Specification
Model Emerson A6500-SR Machinery Health Systems Rack
Dimensions 133.35 x 426.72 mm
Weight 2.4 kg
Rack Size 3RU/84HP (Conforms to IEC 60297)
Power Supply +24V DC (Redundant)
Rated Power (Slots) <100 W
Rated Power (Out) <150 W (Additional Supply for External Use)
Operating Temperature -20°C to +70°C (with Forced Cooling)
Storage Temperature -40°C to +85°C
Humidity 5% to 95% (Non-Condensing)
Shock Resistance 150 m/s² (IEC 60068-2-27)
Vibration Resistance 0.15 mm, 20 m/s², 10-150 Hz (IEC 60068-2-6)
Protection Class IP20 (IEC 60529)
Communication Modbus RTU, Modbus TCP/IP, OPC UA
Slot Configuration 11 Universal Measurement/Temperature Process Slots
Relay Slots 1 (Expandable with A6500-RR for Redundancy)

Product Introduction

The Emerson A6500-SR Machinery Health System Rack is a high-performance monitoring system designed for predictive maintenance and machinery protection. As part of the AMS 6500 ATG system, this rack is essential for industrial applications where real-time vibration, temperature, and process data analysis are critical. The A6500-SR supports multiple cards, including Universal Measurement Cards (A6500-UM) and Temperature Process Cards (A6500-TP), ensuring comprehensive asset monitoring.

This system rack is designed for 19-inch rack-mounted installations, providing scalability, reliability, and ease of integration into existing monitoring infrastructures.


Product Applications

The A6500-SR Machinery Health System Rack is used across various industries where machinery health monitoring is critical, including:

  • Power Generation: Monitoring turbines, generators, and pumps for predictive maintenance.
  • Oil & Gas: Ensuring the reliability of compressors, pumps, and rotating equipment.
  • Chemical Processing: Monitoring critical rotating equipment in hazardous environments.
  • Manufacturing: Supporting production line machinery to minimize downtime.
  • Mining & Metals: Protecting large conveyors and processing machinery from unexpected failures.

Its real-time monitoring capabilities allow operators to detect early signs of wear and tear, helping industries prevent unplanned outages and extend asset lifespans.


Product Advantages

  1. Scalability: Supports up to 11 measurement cards, allowing users to expand monitoring capacity as needed.
  2. Reliability: Designed for redundant communication and power supply, ensuring uninterrupted operation.
  3. Advanced Communication Protocols: Supports Modbus RTU, Modbus TCP/IP, and OPC UA, allowing seamless integration with various SCADA and DCS systems.
  4. Flexible Installation: Available with rear terminal connections for easy setup in industrial environments.
  5. Robust Environmental Protection: Withstands extreme temperatures, humidity, and shock/vibration, making it suitable for harsh industrial conditions.
  6. Redundant Relay Card Support: Option to install A6500-RR for enhanced redundancy in alarm signaling.
  7. Comprehensive Data Analysis: Provides real-time machinery diagnostics to predict failures and reduce downtime.
  8. Optimized for Large-Scale Operations: Can be expanded by adding a second system rack, ensuring adaptability for growing industrial needs.

Latest News & Updates

Here are some of the latest developments and updates regarding the A6500-SR Machinery Health System Rack:

  1. “Emerson Expands Predictive Maintenance Capabilities with Enhanced A6500-SR System”
  2. “AMS 6500 ATG System Now Supports Enhanced OPC UA Integration”
  3. “New Firmware Update for A6500-CC Communication Card Improves Data Processing”
  4. “Industry Leaders Adopt Emerson A6500-SR for Mission-Critical Asset Monitoring”
  5. “Emerson Showcases Advanced Machinery Health Solutions at Industry Expo”

Related Models (Same Series or Alternatives)

Here are 10 models that are either in the same A6500 series or closely related alternatives:

Model Description
A6500-RR System Rack for Redundant Relay Cards
A6500-FR Compact Front-Terminal System Rack
A6500-UM Universal Measurement Card for vibration monitoring
A6500-TP Temperature Process Card for thermal data analysis
A6500-CC Communication Card for Modbus & OPC UA connectivity
A6500-RC Relay Card for alarm signaling
AMS 6500 ATG Complete ATG Machinery Health Monitoring System
CSI 6500 Vibration & Condition Monitoring System
CSI 2140 Portable Machinery Health Analyzer
AMS 9420 Wireless Vibration Transmitter

Popular Emerson Models

Here are 10 of Emerson’s most popular monitoring and control products:

Model Description
AMS 2140 Portable Machinery Health Analyzer for vibration and thermography
AMS 6500 Online Machinery Health Monitoring System
AMS 9420 Wireless Vibration Transmitter for remote asset monitoring
CSI 4500 Advanced Vibration Analyzer
CSI 6500 ATG Turbomachinery Protection System
DeltaV PK Controller Industrial Automation & Control System
Ovation DCS Distributed Control System for power plants
Rosemount 3051 Pressure Transmitter for industrial applications
Micro Motion Coriolis High-Precision Mass Flow Meter
AMS TREX Device Communicator for Field Instrumentation
FAQ

FAQs (Frequently Asked Questions)

Here are 10 common questions and answers about the Emerson A6500-SR Machinery Health System Rack:

Q1: What is the primary function of the A6500-SR?
A1: The A6500-SR is a machinery health monitoring rack designed to collect, analyze, and transmit data for predictive maintenance and machine protection.

Q2: How many measurement cards can be installed in the A6500-SR?
A2: The A6500-SR supports up to 11 Universal Measurement (A6500-UM) or Temperature Process (A6500-TP) cards.

Q3: Does the A6500-SR support redundant communication?
A3: Yes, it allows installation of two A6500-CC Communication Cards for redundant Modbus and OPC UA connectivity.

Q4: Can the A6500-SR be used in hazardous environments?
A4: Yes, it meets IECEx, ATEX, and CSA certifications for use in Class I Division 2 hazardous locations.

Q5: What communication protocols are supported?
A5: The A6500-SR supports Modbus RTU, Modbus TCP/IP, and OPC UA.

Q6: What type of sensors can be connected?
A6: It supports eddy current, piezoelectric, seismic, temperature, Hall-effect, and pressure sensors.

Q7: What are the power requirements?
A7: The system operates on +24V DC redundant power supply.

Q8: How does it integrate with SCADA or DCS systems?
A8: It connects via Modbus or OPC UA, making it compatible with leading SCADA and DCS platforms.

Q9: Is the system expandable?
A9: Yes, a second system rack can be connected for additional measurement capacity.

Q10: What industries commonly use the A6500-SR?
A10: It is widely used in power generation, oil & gas, chemical processing, manufacturing, and mining.
