Emerson A6500-RC Machinery Health Systems Relay Card

Emerson A6500-RC Machinery Health Systems Relay Card

Manufacturer:Emerson

Product Number:A6500-RC

Product Type:Relay Card

Origin:USA

Dimensions:133.35 x 50.8 mm

Weight:0.42 kg

Views:26

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-RC-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-RC-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-RC-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/A6500-RC-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Parameter Value
Dimensions 133.35 x 50.8 mm
Weight 0.42 kg
Power Supply 24V DC (Redundant Supply)
Voltage Range +19V to +32V DC
Power Consumption 6W
Digital Inputs 66 Channels (24V logic)
Relay Outputs 16 SPDT (Single-Pole Double-Throw)
Maximum Voltage Capacity 32V DC / 48V AC
Output Load AC1: 48V/2A, DC1: 32V/2A
Data Interface Modbus RTU, Modbus TCP/IP, OPC UA
Installation Compatible with A6500-xR System Racks
Operating Temperature -10°C to +60°C
Vibration Resistance 0.15 mm / 20 m/s² (10-55 Hz)

Product Overview

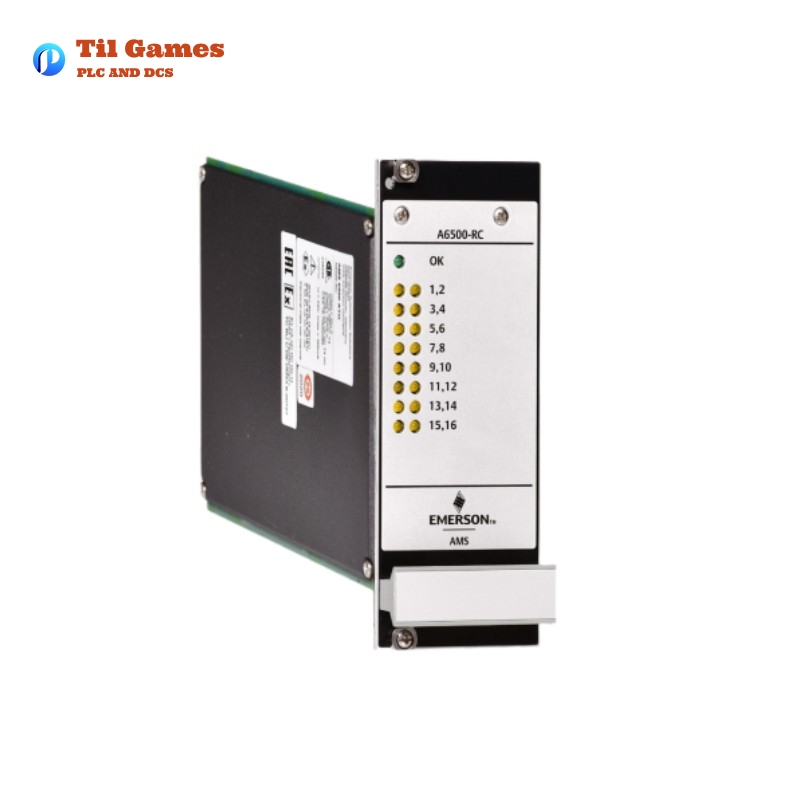

The Emerson A6500-RC Relay Card is a crucial component of the AMS 6500 ATG machine protection system. It is a freely programmable, microprocessor-controlled module used for the logical combination of binary signals.

When installed in an A6500-xR System Rack, it interacts with measurement cards, automatically collecting and processing their logic outputs such as Channel OK, Alert, and Danger. The relay card provides these processed results through 16 output relays.

Additionally, the A6500-RC integrates with an A6500-CC Communication Card, allowing data transmission via Modbus RTU, Modbus TCP/IP, and OPC UA.


Product Applications

The A6500-RC Relay Card is primarily used in machinery health monitoring systems. Key applications include:

  • Industrial Automation Systems – For integrating binary signal logic in manufacturing lines.
  • Rotating Machinery Protection – Used in turbines, compressors, and motors to relay alert/danger signals.
  • Oil & Gas Sector – Ensures real-time monitoring and protection of heavy-duty equipment.
  • Power Generation – Utilized in steam and gas turbines for enhanced reliability.
  • Chemical and Petrochemical Plants – Provides fail-safe relay operations for critical monitoring systems.

Product Advantages

  1. High Input Capacity – With 66 digital input channels, it supports a wide range of industrial applications.
  2. Robust Relay Output – Provides 16 SPDT relays for effective signal output.
  3. Easy Integration – Supports Modbus and OPC UA protocols, ensuring seamless connectivity with control systems.
  4. Hot-Swappable Design – The relay card can be replaced without shutting down the system.
  5. Reliable Status Indication – Features one green LED (power status) and 16 yellow LEDs (relay statuses).
  6. Compatibility – Works with various A6500 System Racks, including A6500-SR, A6500-RR, and A6500-FR.
  7. No Maintenance Required – Designed for long-term operation without regular upkeep.
  8. Advanced Configuration – Can be programmed via AMS Machine Studio software.
  9. Safety Compliance – Meets IEC 60204-1 and IEC 61131-2 standards for industrial safety.
  10. Compact & Durable Design – Built for harsh environments with a small form factor.

Latest News and Updates

1. A6500-RC Relay Card Launches Upgraded Version with Enhanced Load Capacity

News Content: The latest version of the A6500-RC relay card has been officially released, featuring support for higher current and voltage, making it suitable for more complex industrial automation scenarios. Additionally, the upgraded version includes an optimized heat dissipation design to ensure stability during prolonged operation.

2. A6500-RC Relay Card Expands Compatibility with Major PLC Systems

News Content: The A6500-RC relay card has recently announced full compatibility with several mainstream PLC systems, including Siemens, Schneider, and Omron, significantly broadening its application scope in the field of industrial automation.


Related Models in the Same Series

Model Description
A6500-UM Universal Measurement Card for vibration monitoring
A6500-CC Communication Card for data transfer
A6500-TP Temperature Measurement Card
A6500-ATG Advanced Machinery Protection System
A6500-RR Rack for A6500 series with extended compatibility
A6500-SR Standard System Rack for A6500 series
A6500-FR Full System Rack for complete protection integration
A6500-IC Input Conditioning Card for advanced sensors
A6500-MON Monitoring Card for predictive maintenance
A6500-PWR Power Supply Module for A6500 series

Top 10 Popular Emerson Machinery Health Products

Model Description
CSI 2140 Machinery Health Analyzer for vibration analysis
AMS 6500 Advanced Machine Protection System
AMS 2140 Portable Vibration Analyzer
AMS 9420 Wireless Vibration Transmitter
CSI 6300 Wireless Vibration Monitoring System
AMS Asset Monitor Predictive maintenance monitoring unit
CSI 2130 Vibration Analyzer for condition monitoring
AMS Trex Device Communicator for field diagnostics
CSI 5600 Machinery Health Online Monitoring System
AMS Machine Studio Software for Emerson Machinery Health systems
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the A6500-RC Relay Card?
A1: It processes binary signals and provides relay outputs based on logical conditions.

Q2: Is the A6500-RC required for AMS 6500 ATG operation?
A2: No, it is optional but enhances logic processing for alarms and system responses.

Q3: How many input and output channels does the A6500-RC have?
A3: It has 66 digital inputs and 16 relay outputs.

Q4: What are the supported communication protocols?
A4: It supports Modbus RTU, Modbus TCP/IP, and OPC UA.

Q5: Can the A6500-RC be installed in any rack?
A5: No, it is designed specifically for A6500-xR System Racks.

Q6: Is the A6500-RC hot-swappable?
A6: Yes, it can be replaced without shutting down the system.

Q7: Does the A6500-RC require regular maintenance?
A7: No, it is maintenance-free under normal conditions.

Q8: What is the operating temperature range?
A8: It operates between -10°C to +60°C.

Q9: Can I configure the A6500-RC offline?
A9: Yes, using AMS Machine Studio software.

Q10: What are the key safety certifications?
A10: It complies with IEC 60204-1 and IEC 61131-2 safety standards.
