Product Overview

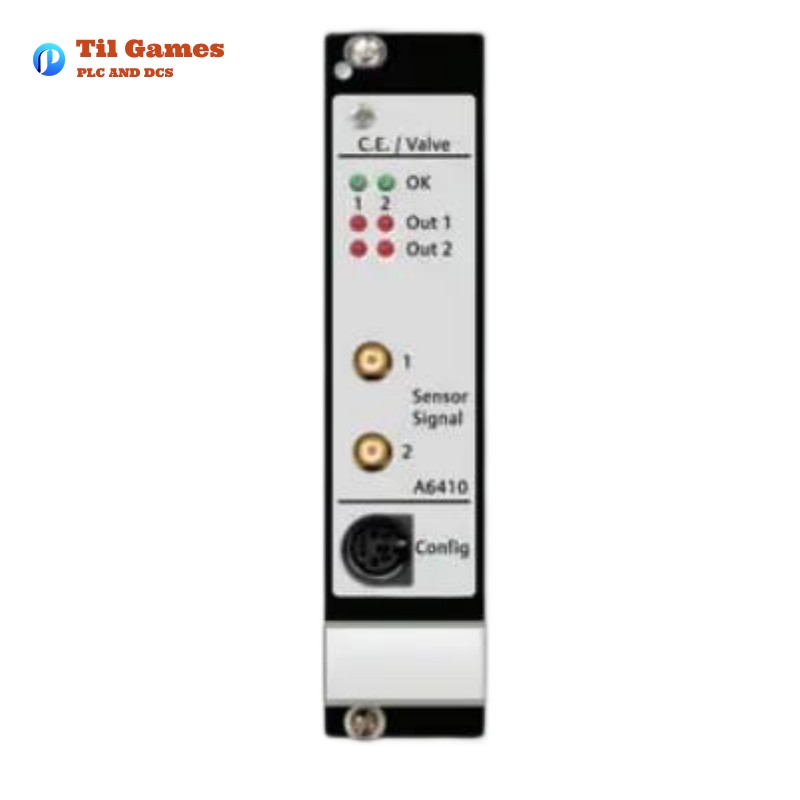

The Emerson A6410 AMS 6500 Valve and Case Expansion Monitor is a high-reliability, one-slot monitor designed for critical rotating machinery. It plays a key role in an API 670-compliant machinery protection system, ensuring accurate monitoring and protection of industrial turbines, compressors, and other high-value turbomachinery.
This monitor is specifically engineered to track valve position and case expansion, providing early detection of potential mechanical issues. It supports inductive displacement sensors and LVDTs, ensuring precise and stable measurements. With seamless integration into Emerson’s PlantWeb® digital ecosystem and AMS software suite, the A6410 enhances operational reliability, predictive maintenance, and machinery health diagnostics.
Product Features
- Two independent differential inputs: Supports inductive half-bridge/full-bridge and differential transformer sensors.
- API 670 compliance: Ensures industry-standard machinery protection.
- Hot-swappable: Allows module replacement without system downtime.
- Dynamic and static measurement support: Measures displacement, angles, forces, torsions, and more.
- Advanced alarm system: Configurable alert and danger alarms with adjustable delays and hysteresis.
- Comprehensive self-checking: Monitors power supply, sensors, cables, module health, overloads, and temperature.
- Seamless integration with AMS software and PlantWeb: Enables predictive diagnostics and process control optimization.
- Multiple output options: Front and rear buffered outputs, 0/4-20 mA, and 0-10 V DC proportional outputs.
Applications
The Emerson A6410 AMS 6500 Valve and Case Expansion Monitor is widely used in industries that require precise turbine and compressor monitoring, including:
- Power Generation: Monitoring steam and gas turbines in power plants.
- Oil & Gas: Ensuring safe operation of refinery turbines and compressors.
- Petrochemical: Protecting rotating equipment in chemical processing plants.
- Industrial Manufacturing: Maintaining machinery health in heavy industrial environments.
- Hydropower: Overseeing case expansion and valve position in hydroelectric turbines.
Advantages of the A6410 Valve and Case Expansion Monitor
- High Reliability: Built for critical plant machinery to minimize unplanned downtime.
- Compact Design: A 3U, 1-slot plug-in module reduces cabinet space requirements.
- Real-Time Monitoring: Provides instant feedback on valve position and case expansion.
- Seamless System Integration: Works with Ovation® and DeltaV™ control systems.
- Flexible Sensor Compatibility: Supports various inductive sensors and LVDTs.
- Advanced Alarm System: Prevents mechanical failure through early warnings.
- Galvanically Isolated Inputs: Ensures accurate signal measurement and noise immunity.
- Configurable Measurement Parameters: Allows customization for different industrial needs.
- Predictive Maintenance Capabilities: Reduces operational costs through early fault detection.
- Hot-Swappable Design: Enables maintenance without system shutdown.
Product Specifications
| Parameter | Value |
|---|---|
| Dimensions | 160 x 128.4 x 30 mm |
| Weight | 0.32 kg |
| Number of Inputs | 2 (independent, differential) |
| Sensor Compatibility | Inductive (half-bridge/full-bridge), differential transformer |
| Input Impedance | 200 kΩ |
| Input Voltage Range | 3.6 VDC (overvoltage protected) |
| Measuring Frequency Range | 0 – 100 Hz (-3 dB) |
| Carrier Frequency | 4.75 kHz |
| Sensor Power Supply | 4 V rms (galvanically separated, open/short circuit proof) |
| Alarm Setpoints | Adjustable (5-100% of full scale) |
| Current Mode Outputs | 0/4-20 mA (per channel) |
| DC Voltage Outputs | 0-10 VDC (proportional to main value) |
| Buffered Output Signal | 0-12 V peak-to-peak |
| Power Consumption | Max. 6 W, 250 mA at 24 VDC |
| Environmental Protection | IP 00 (module), IP 21 (front plate) |
| Operating Temperature | 0° – 65°C |
| Storage Temperature | -30° – 85°C |
| Vibration Resistance | IEC 68-2, Part 6 |
| Shock Resistance | IEC 68-2, Part 29 |
| Self-Checking | Power supply, sensors, cables, temperature, system watchdog |
| Configuration Protection | Password-protected |
